Powerful bond. Primerless process.

Introducing tesa® ACXplus Primerless Line, our highest performing line of permanent exterior mounting tapes



Bonding of attachment parts to car bodies can be very challenging, parts that need to be bonded to a vehicle have different levels of surface energy. Dissimilar materials like plastics, metal, and glass have different coefficients of thermal expansion, so when they warm up or cool down, they expand and contract at different rates. Acrylic foam based adhesive tapes, thanks to its viscoelastic feature, join materials safely and permanently. For this reason attachment parts like emblems, body side moldings, rocker panels, and fender flares can be securely mounted to exterior car body surfaces and withstand all external influences throughout the vehicle’s lifetime.

Developed for the permanent mounting of LSE and MSE plastic substrates and clear coats

tesa® ACXplus Primerless Line is our high performance tapes for exterior attachment part mounting. Because it is primerless, this double-sided acrylic foam tape delivers a permanent bond from the moment it’s applied – without the need for primer. Applying primer as part of the attachment part mounting process is an expensive, time-consuming, and hazardous process. So if you can eliminate the primer in productionyou can get bottom line benefits from greater process efficiency and a lower total process cost. On top, it can be applied at a wide range of temperature, within the first minute after application our primerless products reach a near-ultimate peel adhesion level on most substrates, whereas the typical solutions on the market need hours to days for achieving ultimate performance. At the same time, the more environmentally friendly production line helps you meet stricter environmental standards and provide healthier working conditions.

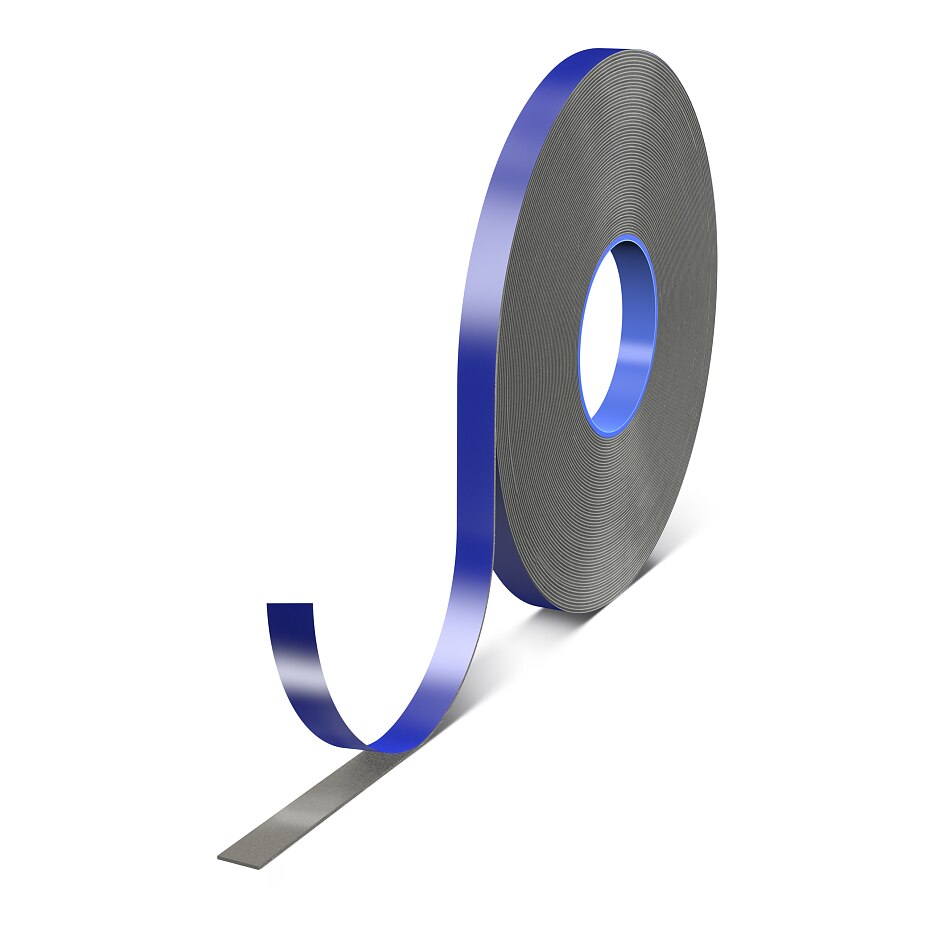

tesa® ACXplus 778XX

tesa_778XX_pr_001
tesa® ACXplus 77808

This triple-layer symmetrically designed double-sided acrylic foam tape was engineered especially for automotive exterior attachment part mounting. Coated on both sides with LSE adhesive, it offers high initial performance on LSE plastics – as well as on difficult-to-bond OEM clear coats. And thanks to its viscoelastic acrylic foam core, tesa® ACXplus 778XX has the ability to absorb and dissipate dynamic and static loads.

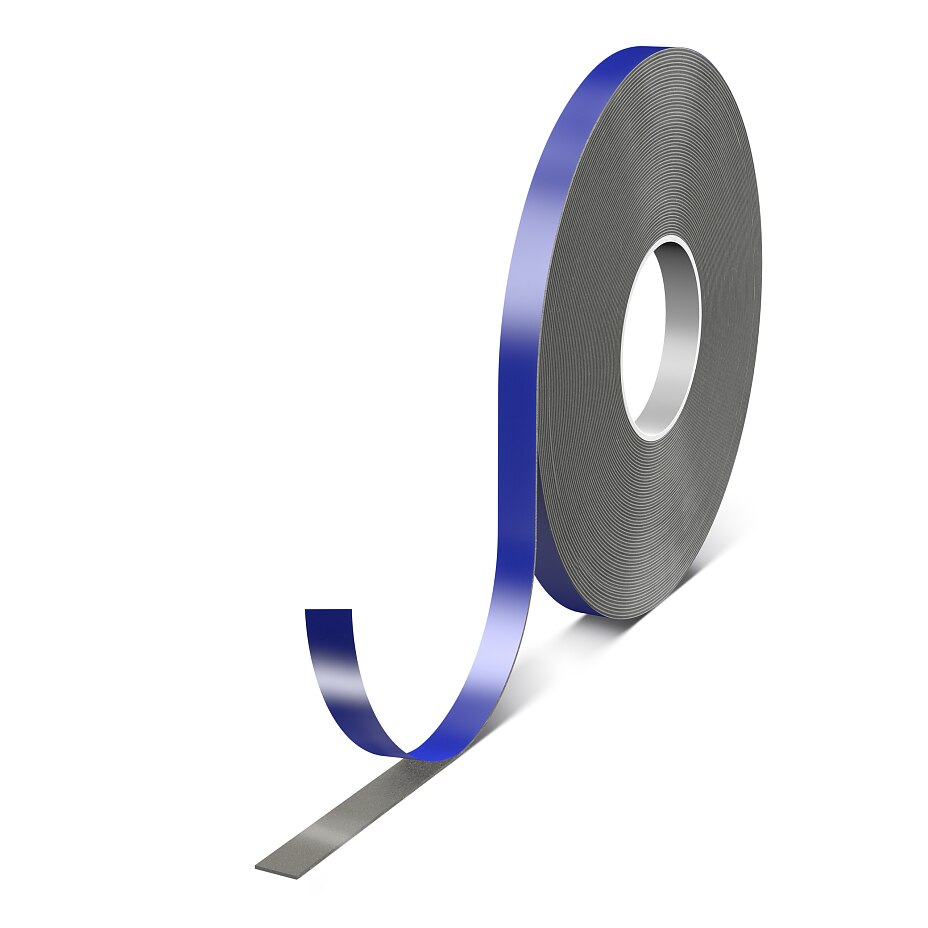

tesa® ACXplus 777xx

tesa_777XX_pr_001
tesa® ACXplus 77708

Especially developed for applications in the automotive industry to securely bond exterior attachment parts to the easy-to-bond car body, tesa® ACXplus 777XX is a unique double-layer asymmetrically designed product, coated on one side with LSE adhesive for high initial performance on LSE plastics.

Features

  • Viscoelastic acrylic foam core to compensate for different thermal elongation of bonded parts
  • Outstanding wet-out property
  • High humidity and UV resistance

Benefits

Reduce total process time by skipping the primer
Save total cost and improve efficiency

By skipping the primer, our primerless solutions offer a simpler process that help to reduce the total process time and process complexity with tape and part attachment. Using primerless products eliminate quality issues that are related to poor primer application.

Read more
Excellent bonding stability at an application temperature as low as 5°C
Robust application over a wide range of temperature

No matter whether it is cold or warm when applying our tapes, within the first minute after application, our primerless products reach a near-ultimate peel-adhesion level on most substrates, whereas the typical solutions on the market need time to set.

Read more
tesa-Icon-save-time-001_blue_300dpi
Excellent performance within the first minute

Our ACXplus Primerless products is able to reach near ultimate peel adhesion level right after application, even on LSE plastics and difficult-to-bond clear coats without primer.

Read more
Achieve healthier and more environmentally friendly production
Achieve healthier and more environmentally friendly production

When the primer process is skipped, we can prevent exposure to hazardous substances. It also help to improve the environment, health and safety issues for your employees who are exposed to primers.

Read more

Application areas

Mounting of body side moulding
Body side molding

Mounting of body side moulding

Read more
Mounting of door edge moulding
Door edge molding

Mounting of door edge moulding

Read more
Mounting of wing flare
Fender flares

Mounting of wing flare

Read more
Mounting of pillar appliqué
Pillar appliqués

Mounting of pillar appliqué

Read more

Get the ACXplus Primerless Line Advantage

To learn more about the technical aspects of our line of high performance tapes for exterior attachment part mounting, please visit our exterior automotive webpage.
