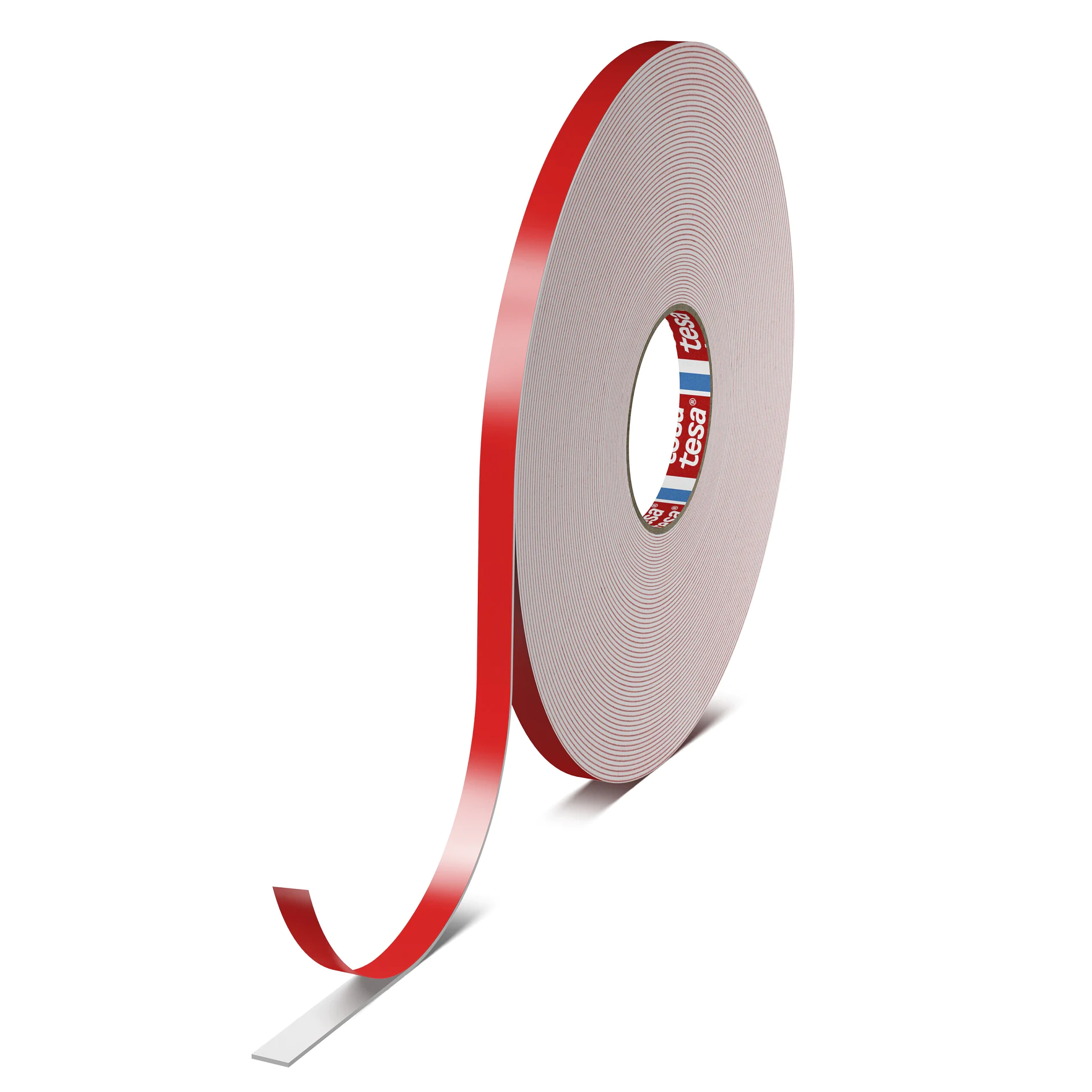

tesa® flameXtinct 45001
Flame Retardant PE-Foam Tape
Product description
tesa® 45001 is a flame-retardant PE-foam tape for permanent mounting in demanding applications. The tape comprises of a flame-retardant acrylic adhesive and flame-retardant PE-foam with excellent bonding strength. Following features are offered:
- Proven flame-retardant characteristics according to FAR 25.853(a) app. F part1 and UL 94 HBF - HF1
- Free of halogens and antimony-trioxide (REACH and ROHS conformity)
- Excellent adhesion characteristics on a variety of surfaces
- High conformability and damping properties
- Extremely light weight compared to alternative flame-retardant bonding opportunities
Product details and specifications
Application Fields
- Mounting in elevator
- Bonding in aircraft cabin interior
- Assemblies in trains
Product Construction
Adhesive Type | FR acrylic |
---|---|
Backing material | FR PE foam |
Color | white |
Liner Type | plain red |
Total thickness | 1000 µm |
Product Construction
Adhesive Type | FR acrylic |
---|---|
Backing material | FR PE foam |
Color | white |
Liner Type | plain red |
Total thickness | 1000 µm |
Properties / Performance Values
Temperature resistance short term | 80 °C |
---|---|
Temperature resistance long term | 80 °C |
Static shear resistance at 40°C | good |
Properties / Performance Values
Temperature resistance short term | 80 °C |
---|---|
Temperature resistance long term | 80 °C |
Static shear resistance at 40°C | good |
Adhesion to Values
Adhesion to Aluminium (initial) | 16.6 N/cm |
---|---|
Adhesion to Aluminium (after 14 days) | 21.8 N/cm |
Adhesion to Steel (initial) | 19.2 N/cm |
Adhesion to Steel (after 14 days) | 22 N/cm |
Adhesion to Values
Adhesion to Aluminium (initial) | 16.6 N/cm |
---|---|
Adhesion to Aluminium (after 14 days) | 21.8 N/cm |
Adhesion to Steel (initial) | 19.2 N/cm |
Adhesion to Steel (after 14 days) | 22 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
