tesa® 60253

Product details and specifications

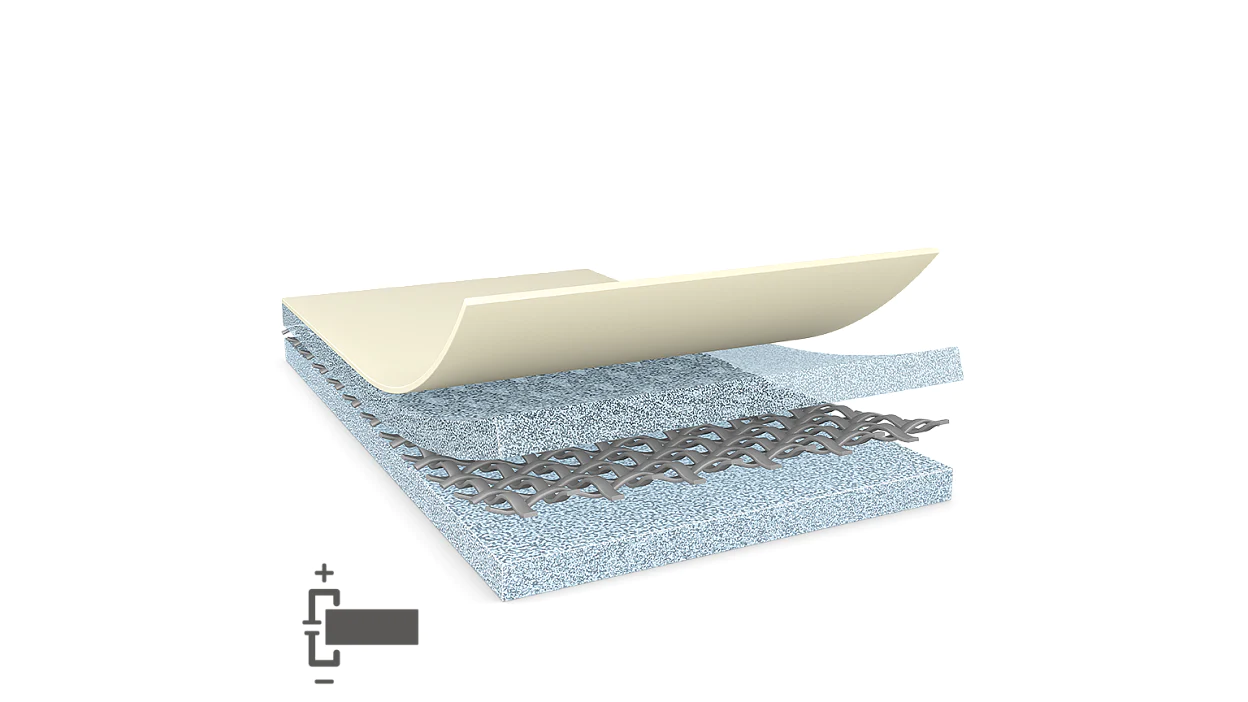

Adhesive Type	conductive acrylic
Backing material	conductive woven
Color	grey
Color of liner	white/blue logo
Liner Type	PE-coated paper
Thickness of liner	120 µm
Total thickness	70 µm

Static shear resistance at 40°C	very good
Contact resistance z-direction (initial)	0.05 Ohm / square inch
Release of liner	easy
Temperature resistance short term	180 °C
Surface resistance x-y-direction	0.2 Ohm / square

Adhesion to Steel (initial)	4.8 N/cm
Adhesion to Steel (after 14 days)	9.7 N/cm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 60253_en-IN 66.1 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Name of product	tesa® 60253	tesa® 60364	tesa® 60267	tesa® 60260	tesa® 60381	tesa® 60255	tesa® 60362	tesa® 60251	tesa® 60665	tesa® 60667	tesa® 60261	tesa® 60372
Total thickness	70 µm	100 µm	17	35 µm	50	150 µm	50 µm	55 µm	50 µm	100 µm	25 µm	50 µm
Adhesive Type	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic
Backing material	conductive woven	conductive woven	conductive non-woven	conductive non-woven	conductive woven	conductive woven	conductive woven	conductive woven	conductive woven	conductive woven	conductive non-woven	conductive non-woven
Adhesion to Steel (initial)	4.8 N/cm		3.5 N/cm	4 N/cm	8 N/cm	4.5 N/cm			6.2 N/cm	10.4 N/cm	4 N/cm	4.3 N/cm
Adhesion to Steel (after 14 days)	9.7 N/cm	10 N/cm	5.5 N/cm	4.2 N/cm	10 N/cm	10.5 N/cm	8 N/cm				5.6 N/cm	5.6 N/cm
Surface resistance x-y-direction	0.2 Ohm / square	0.1 Ohm / square	0.2 Ohm / square	0.2 Ohm / square	0.3 Ohm / square	0.2 Ohm / square	0.1 Ohm / square	0.2 Ohm / square	0.2 Ohm / square	0.2 Ohm / square	0.2 Ohm / square	0.1 Ohm / square
Contact resistance z-direction (initial)	0.05 Ohm / square inch	0.01 Ohm / square inch	0.02 Ohm / square inch	0.02 Ohm / square inch	0.06 Ohm / square inch	0.05 Ohm / square inch	0.01 Ohm / square inch	0.05 Ohm / square inch	0.05 Ohm / square inch	0.05 Ohm / square inch	0.02 Ohm / square inch	0.01 Ohm / square inch

Last updated on 10 Jul 2024
