It is not recommended to apply tesa® 51570 where a temperature load of over 60° C prevails for a longer period.

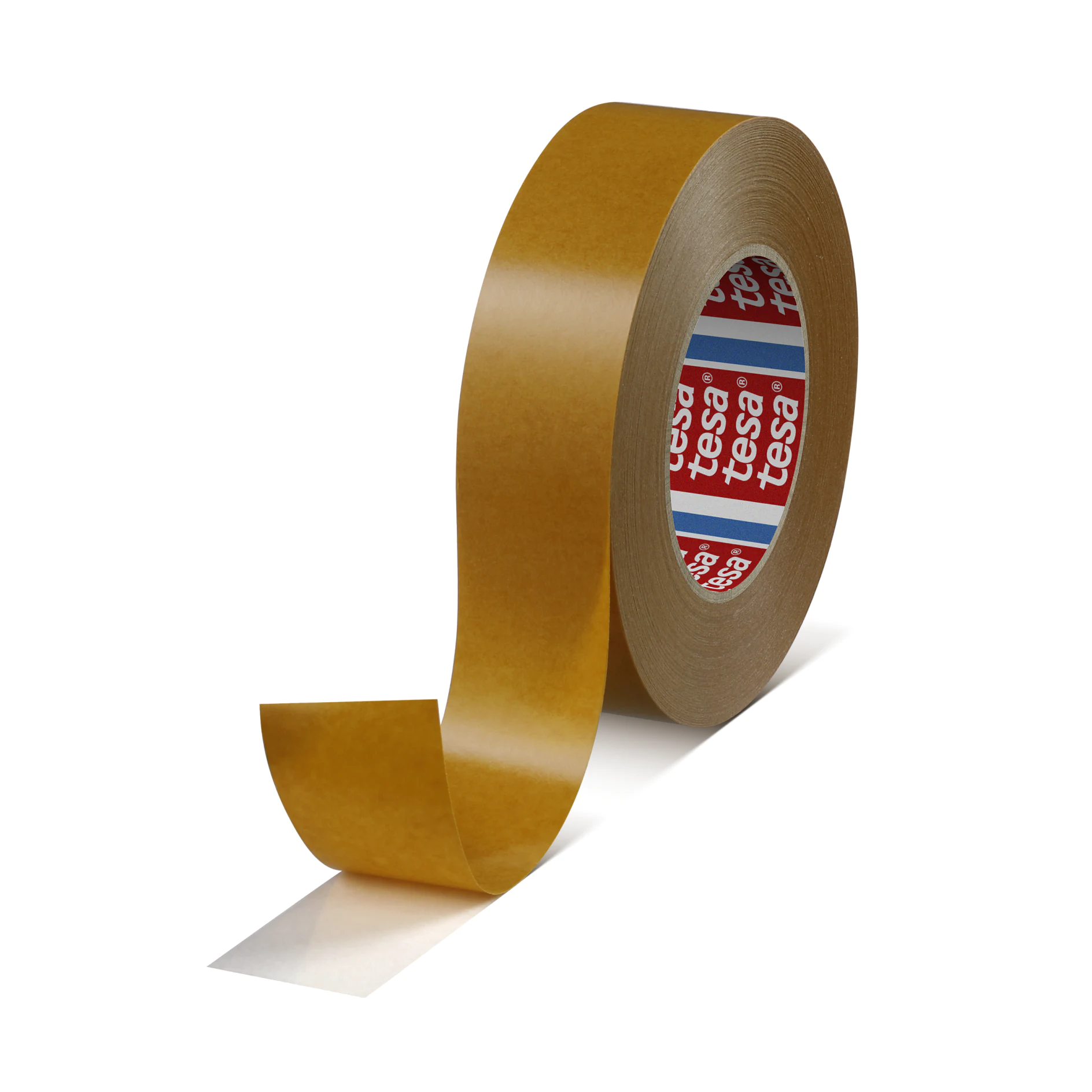

tesa® 51570
Double-sided non-woven tape
Product Features
- The thick layer of adhesive bonds well on uneven surfaces and has a very high initial bond.
Product description

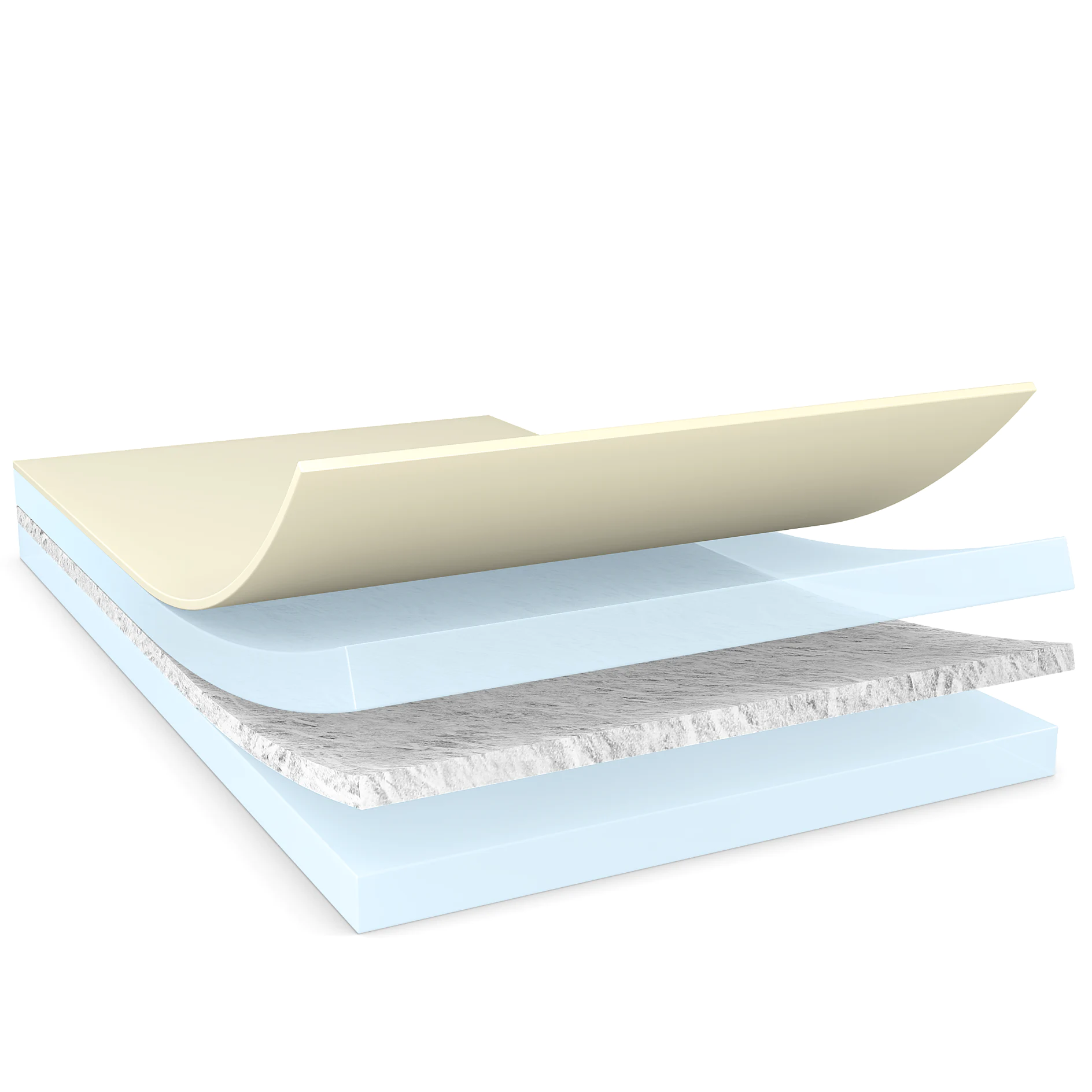

tesa® 51570 is a double-sided tape with a non-woven backing. It is used for permanent mounting of metal and plastic materials, e.g. aluminum, polystyrene, polypropylene, ABS.
Product details and specifications
Product Features
- The thick layer of adhesive bonds well on uneven surfaces and has a very high initial bond.
Application Fields
- General purpose mounting
| Adhesive Type | synthetic rubber |
|---|---|
| Backing material | non-woven |
| Total thickness | 110 µm |
| Humidity resistance | good |
|---|---|
| Static shear resistance at 23°C | good |
| Tack | very good |
| Chemical Resistance | low |
| Ageing resistance (UV) | medium |
| Static shear resistance at 40°C | low |
| Temperature resistance short term | 80 °C |
| Temperature resistance long term | 40 °C |
| Softener resistance | low |
| Fogging | good |
| Adhesion to PE (initial) | 5.5 N/cm |
|---|---|
| Adhesion to PE (after 14 days) | 7 N/cm |
| Adhesion to PP (initial) | 7 N/cm |
| Adhesion to PP (after 14 days) | 12 N/cm |
| Adhesion to PS (initial) | 8 N/cm |
| Adhesion to PVC (initial) | 9 N/cm |
| Adhesion to PVC (after 14 days) | 12.5 N/cm |
| Adhesion to Steel (initial) | 12 N/cm |
| Adhesion to Steel (after 14 days) | 13 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
