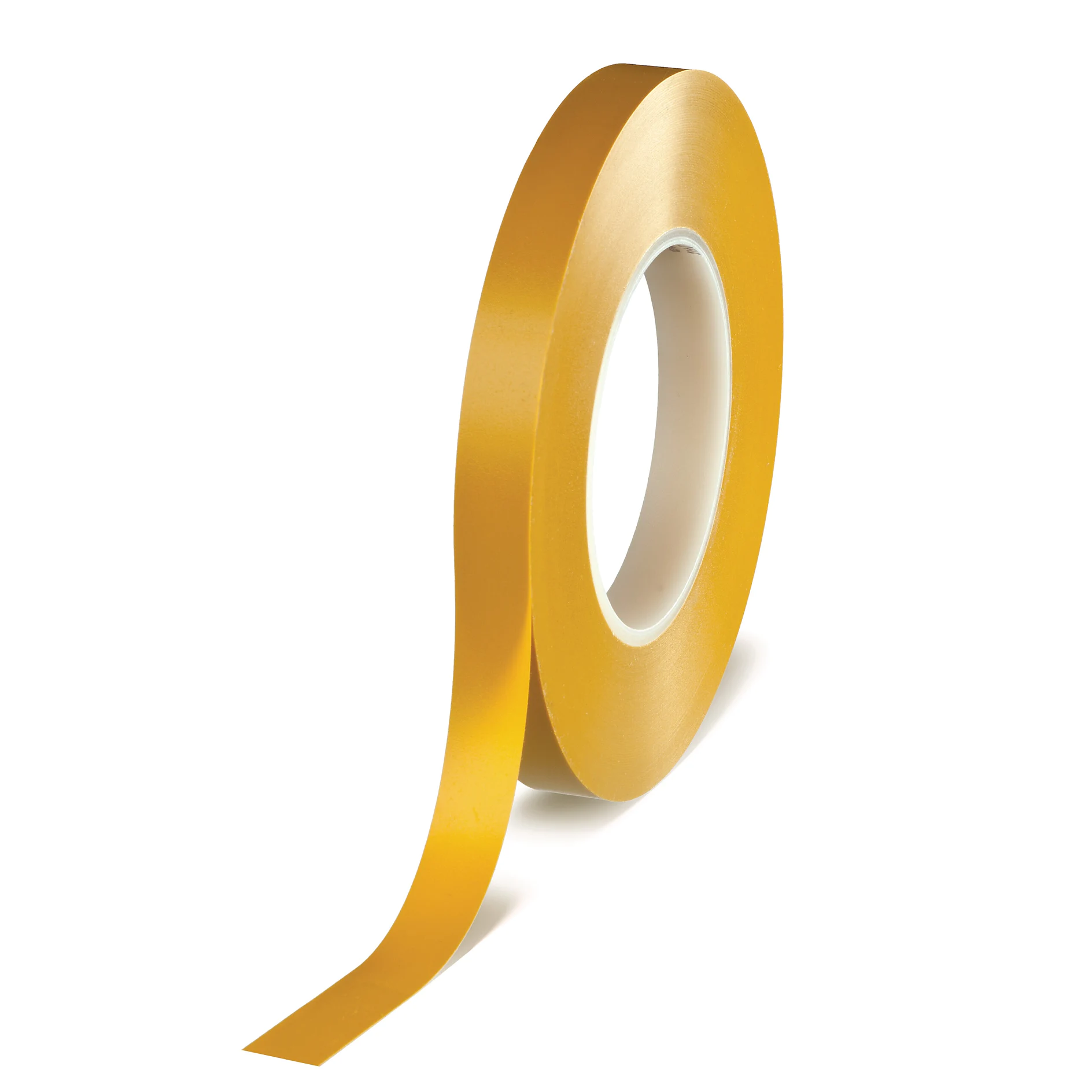

tesa® 7140 PV3

เทปสำหรับมาสกิ้งขอบโลหะ (Flange) ในอุตสาหกรรมยานยนต์


Product description

tesa® 7140 เป็นเทปฟิล์มพีวีซีเคลือบด้วยฟิล์ม PET เป็นการรวมความทนทานของฟิล์มพีวีซี และ tensile สูงของแผ่นฟิล์ม PET
ผลิตภัณฑ์นี้สามารถให้ติดบานกระจกไปที่ขอบโลหะที่เคลือบ e-coatedได้โดยตรง โดยไม่ต้องใช้รองพื้นใดๆ 7140 เข้ากันได้กับ e-coats/ฟิลเลอร์ และกาวหน้าต่างทุกตัว หลังจากดึงเทปออกบานหน้าต่างสามารถติดบน e-coats ได้โดยไม่ต้องปรับสภาพพื้นผิวใด ๆ


รายละเอียดผลิตภัณฑ์และข้อมูลเฉพาะ

Application Fields

เทปติดปิดพื้นผิวสำหรับงาน flange masking ทั่วไป
ความหนารวม 181 µm
ประเภทกาว ยางธรรมชาติ
วัสดุตัวเทป PVC film
การยืดตัวเมื่อขาด 130 %
ความทนต่อแรงดึง 140 N/cm
ทนต่ออุณหภูมิ (30 นาที) 170 °C
ขอบสีคมชัด ใช่
แกะได้ง่าย ใช่
การยึดสี ใช่
เหมาะสำหรับงานตัดแบบไดคัท ใช่
การยึดเกาะกับเหล็ก 4 N/cm
การออกแบบผลิตภัณฑ์ของ tesa® 7140 ใช้ได้สำหรับทั้งด้วยมือและหุ่นยนต์และยังเหมาะสำหรับการ converting และไดคัท ในกรณีการใช้งานโดยอัตโนมัติจะดีที่สุดควรใช้ก่อนวันที่หมดอายุ 12 เดือนภายใต้เงื่อนไขการจัดเก็บ
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้

Get in contact with us!

ติดต่อเรา

ขอบคุณสำหรับข้อความ

ทางเราจะติดต่อกลับโดยเร็วที่สุด

Something went wrong. Please try again later.

เปรียบเทียบผลิตภัณฑ์

ชื่อผลิตภัณฑ์ tesa® 7140 PV3 tesa® 4185 RollMasker HT tesa® 4174 tesa® 7133 tesa® 4185 tesa® 4244 PV0 tesa® 51109 tesa® 4185 RollMasker MT tesa® 4244 PV2 tesa® 7140 HT RollMasker tesa® 4216
ความหนารวม
181 µm
100 µm
110 µm
80 µm
100 µm
110 µm
80 µm
100 µm
130
168 µm
105
ประเภทกาว
ยางธรรมชาติ
ยางธรรมชาติ
ยางธรรมชาติ
ยางธรรมชาติ
ยางธรรมชาติ
ยางธรรมชาติ
ยางธรรมชาติ
ยางธรรมชาติ
ยางธรรมชาติ
ยางธรรมชาติ
อะครีลิค
วัสดุตัวเทป
PVC film
PVC film
PVC film
PP film
PVC film
PVC film
PET film
PVC film
PVC film
PVC film
PE film
ความหนาของมาสกิ้ง
30 µm
30 µm
30 µm
วัสดุในการมาสกิ้ง
HDPE
PO film
HDPE
