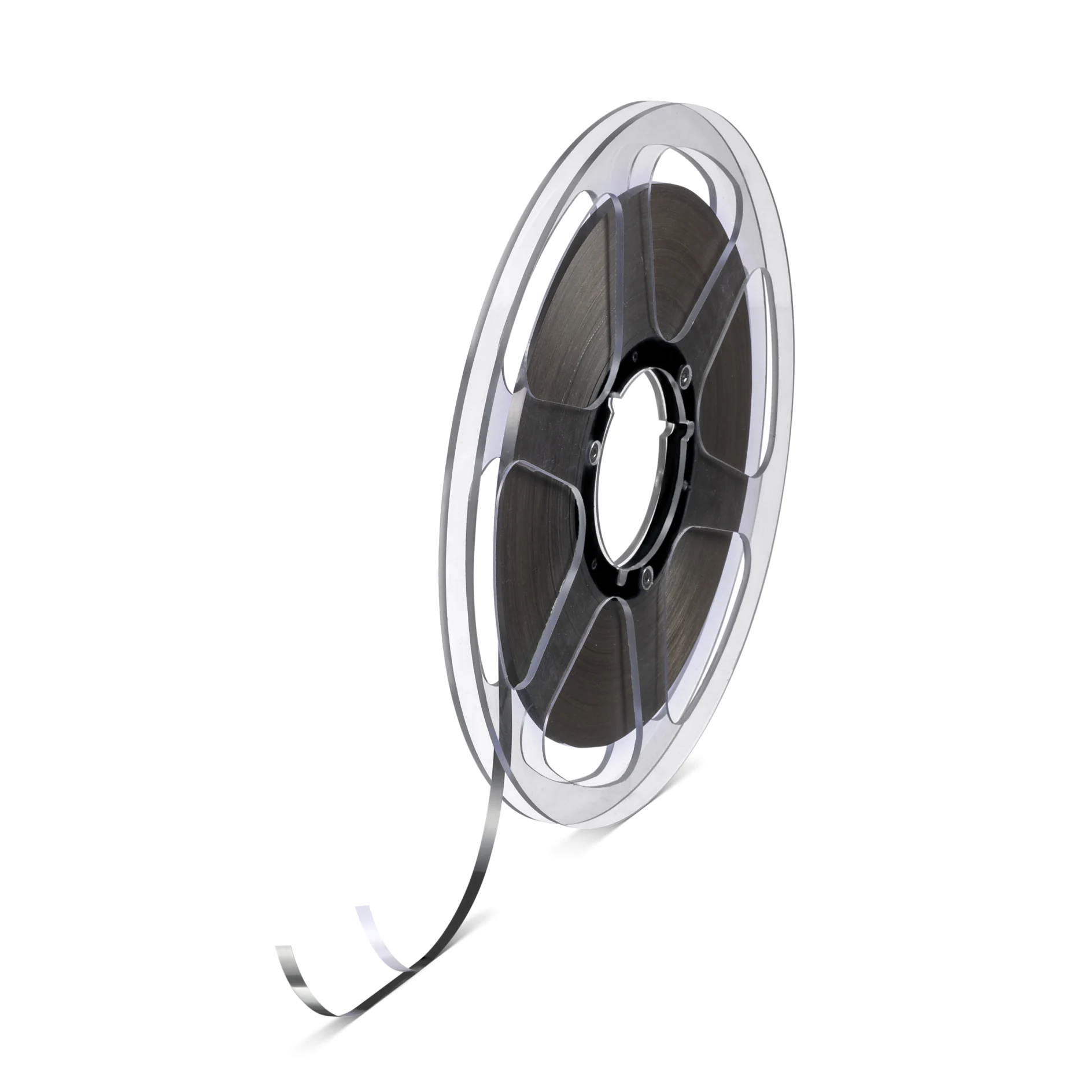

tesa® 60860


Product description

tesa® 60860 เป็นเทปกาวในตัวด้านเดียว ที่เป็นสื่อกระแสไฟฟ้าประกอบด้วยแผ่นรองทองแดงชุบดีบุกที่เป็นสื่อกระแสไฟฟ้า พร้อมกาวอะคริลิกนำไฟฟ้า และได้รับการออกแบบมาเพื่อใช้เป็นบัสบาร์ที่มีกาวในตัว ในแผงโซลาร์เซลล์แบบฟิล์มบางและแผ่นป้องกัน EMI สำหรับอุปกรณ์อิเล็กทรอนิกส์

tesa® 60860 คุณสมบัติเฉพาะ:

  • การนำไฟฟ้า XYZ ที่ยอดเยี่ยม
  • ประสิทธิภาพที่เชื่อถือได้หลังจากเก็บความร้อนชื้นและอายุไฟฟ้า
  • การยึดเกาะเริ่มต้นที่ดีและทนต่อแรงเฉือน
  • ซับ PET ที่ทนต่อการฉีกขาดสำหรับการใช้งานอัตโนมัติ
  • ทนทานต่อกระบวนการเคลือบทั่วไปในอุตสาหกรรมพลังงานแสงอาทิตย์
  • แผ่นรองทองแดงชุบดีบุกอ่อนหนา 35 µm


รายละเอียดผลิตภัณฑ์และข้อมูลเฉพาะ

Application Fields

  • เทปเก็บสายชาร์จสำหรับแผงโซลาร์เซลล์แบบฟิล์มบาง
  • การป้องกัน EMI สำหรับ สมาร์ทโฟน คอมพิวเตอร์ แท็บเล็ต อุปกรณ์อิเล็กทรอนิกส์
ความหนาของแผ่นลอก 50 µm
ความหนารวม 58 µm
ประเภทกาว conductive acrylic
ประเภทแผ่นลอก PET
วัสดุตัวเทป tin-plated copper
สี สีเงิน
สีของแผ่นลอก โปร่งใส
ความทนต่อแรงดึง 50 N/cm
ทนต่อแรงเฉือนแบบสถิตที่ 40°C ดี
ความต้านทานการสัมผัสแนวแกน Z 2 mOhm
การทนต่ออุณหภูมิระยะเวลาสั้น 200 °C
การยึดเกาะกับเหล็ก (หลังจาก 14 วัน) 7 N/cm
  • วิธีทดสอบความต้านทานการสัมผัสโดยใช้อิเล็กโทรดขนาด 1 กก. และพื้นผิวสัมผัสขนาด 1 ตารางนิ้ว
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้

Get in contact with us!

ติดต่อเรา

ขอบคุณสำหรับข้อความ

ทางเราจะติดต่อกลับโดยเร็วที่สุด

Something went wrong. Please try again later.

เปรียบเทียบผลิตภัณฑ์

ชื่อผลิตภัณฑ์ tesa® 60860 tesa® 60334 tesa® 60231 tesa® 60317 tesa® 60215 tesa® 60217 tesa® 60347 tesa® 60218 tesa® 60276 tesa® 60571 tesa® 60213 tesa® 60537
ความหนารวม
58 µm
40 µm
25 µm
30
500
1,500 µm
30
2,000 µm
200 µm
50 µm
200 µm
30 µm
ประเภทกาว
conductive acrylic
conductive acrylic
conductive acrylic
conductive acrylic
conductive acrylic
conductive acrylic
conductive acrylic
conductive acrylic
conductive acrylic
conductive acrylic
conductive acrylic
conductive acrylic
วัสดุตัวเทป
tin-plated copper
conductive non-woven
copper film
conductive foam
conductive foam
conductive woven
conductive foam
conductive woven
conductive non-woven
conductive foam
copper film
การทนต่ออุณหภูมิระยะเวลาสั้น
200 °C
200 °C
200 °C
200 °C
160 °C
180 °C
200 °C
200 °C
ความหนาของแผ่นลอก
50 µm
100 µm
50 µm
50 µm
120 µm
120 µm
50 µm
120 µm
120 µm
50 µm
120 µm
50 µm
ประเภทแผ่นลอก
PET
ฟิล์ม PET
PET
ฟิล์ม PET
กระดาษเคลือบ PE
กระดาษเคลือบ PE
ฟิล์ม PET
กระดาษเคลือบ PE
กระดาษเคลือบ PE
PET
กระดาษเคลือบ PE
PET
ประเภทของแผ่นลอก
type: PET
type: PET film
type: PET
type: PET film
type: PE-coated paper
type: PE-coated paper
type: PET film
type: PE-coated paper
type: PE-coated paper
type: PET
type: PE-coated paper
type: PET
