Product Construction
Backing material | conductive woven |
Color | สีดำ |
Color of liner | logo สีขาว/น้ำเงิน |
Thickness of liner | 120 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PE-coated paper |
เทป conductive woven นำไฟฟ้า สีดำ กาวสองหน้า 100ไมครอน

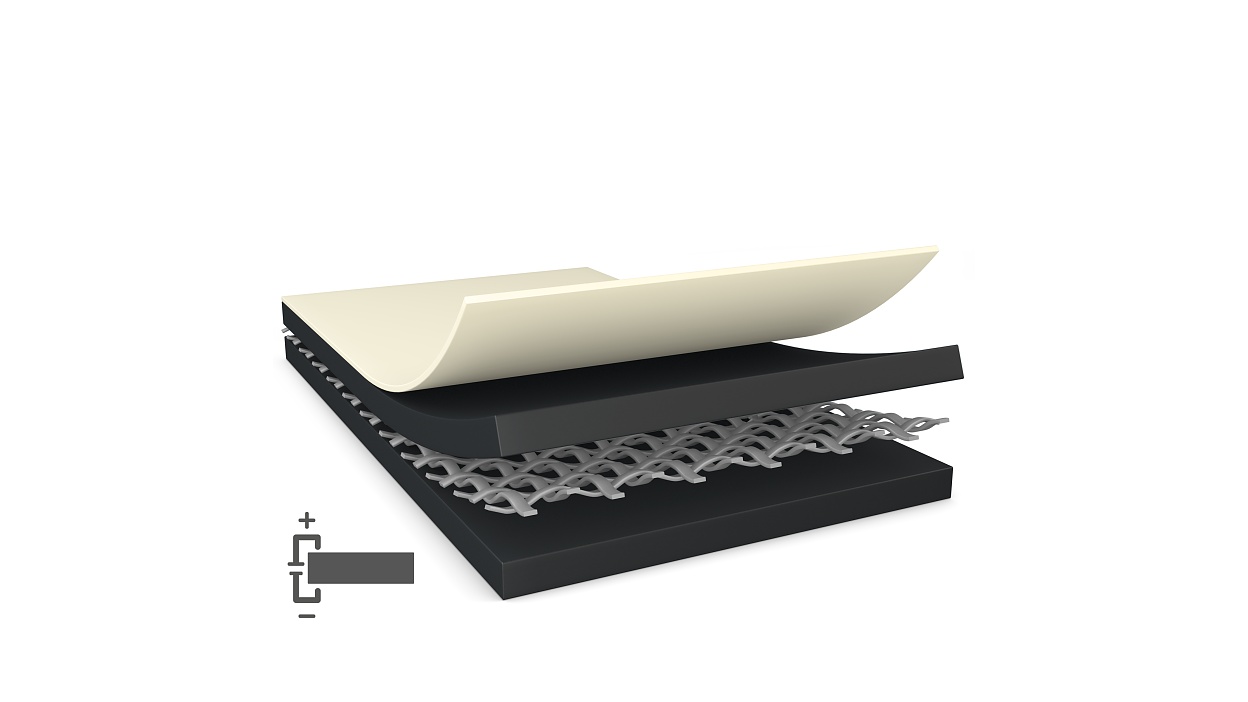

tesa® 60274 เป็นเทปกาวนำไฟฟ้า สีดำ กาวสองด้าน ประกอบด้วย backing เป็นelectrically conductive woven และกาวอะคริลิคนำไฟฟ้า.
tesa® 60274 มีคุณสมบัติเฉพาะคือ.:
Backing material | conductive woven |
Color | สีดำ |
Color of liner | logo สีขาว/น้ำเงิน |
Thickness of liner | 120 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PE-coated paper |
Backing material | conductive woven |
Color | สีดำ |
Color of liner | logo สีขาว/น้ำเงิน |
Thickness of liner | 120 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PE-coated paper |
Static shear resistance at 40°C | ต่ำ |
Release of liner | ลอกง่าย |
Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
แรงต้านพื้นผิวบนแนวแกน xyz | 0.2 mOhm |
การทนต่ออุณหภูมิระยะเวลาสั้น | 160 °C |
Static shear resistance at 23°C | กลาง |
Static shear resistance at 40°C | ต่ำ |
Release of liner | ลอกง่าย |
Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
แรงต้านพื้นผิวบนแนวแกน xyz | 0.2 mOhm |
การทนต่ออุณหภูมิระยะเวลาสั้น | 160 °C |
Static shear resistance at 23°C | กลาง |
Adhesion to Steel (after 14 days) | 10 N/cm |
Adhesion to Steel (after 14 days) | 10 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
