Product Construction
Backing material | PET film |
Color | สีดำ |
Color of liner | logo สีน้ำตาล/น้ำเงิน |
Thickness of liner | 69 µm |
Total thickness | 205 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: paper |
Weight of liner | 80 g/m² |

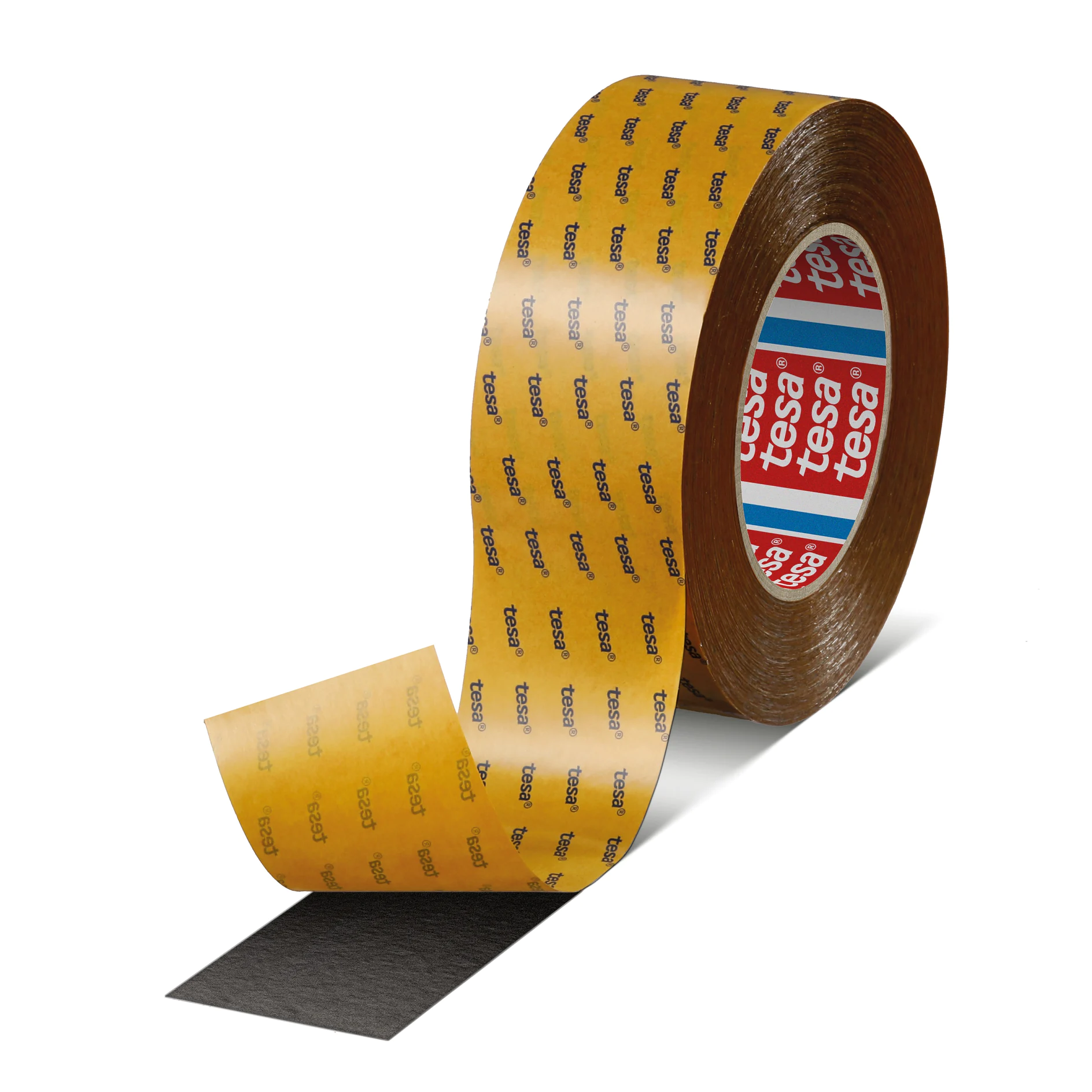

tesa® 59652 เทปฟิล์มดำสองด้าน 205µm
tesa® 4965 Black เป็นเทปกาวสองหน้าซึ่งประกอบด้วย backing PET สีดำและกาวอะคริลิกดัดแปลง และเป็นไปตามสูตรผลิตภัณฑ์ที่ได้รับการจดสิทธิบัตรและได้รับการคุ้มครอง การออกแบบผลิตภัณฑ์ที่ไม่เหมือนใครและมีประสิทธิภาพสูง และผลิตภัณฑ์เหล่านี้รวมกันเป็น Team 4965 เทปฟิล์มสองหน้าในกลุ่มนี้ช่วยให้เลือกเทปที่มีประสิทธิภาพสูงสุดได้อย่างง่ายดายตามความต้องการของลูกค้า ผลิตภัณฑ์ และกระบวนการ tesa® 4965 Black สามารถสั่งซื้อได้โดยใช้หมายเลขคำสั่งซื้อ tesa® 59652 สำรวจคุณประโยชน์ของ tesa® 4965 ทั้งหมดได้ที่นี่: https://www.tesa.com/en/industry/general-applications/mounting/team-4965-assortment
tesa® 4965 Black คุณสมบัติ:
Backing material | PET film |
Color | สีดำ |
Color of liner | logo สีน้ำตาล/น้ำเงิน |
Thickness of liner | 69 µm |
Total thickness | 205 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: paper |
Weight of liner | 80 g/m² |
Backing material | PET film |
Color | สีดำ |
Color of liner | logo สีน้ำตาล/น้ำเงิน |
Thickness of liner | 69 µm |
Total thickness | 205 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: paper |
Weight of liner | 80 g/m² |
Elongation at break | 50 % |
Tensile strength | 20 N/cm |
Static shear resistance at 40°C | ดีมาก |
Tack | ดี |
การทนต่ออุณหภูมิระยะเวลายาว | 100 °C |
Softener resistance | ดี |
ความต้านทานความร้อนที่อุณหภูมิต่ำสุด | -40 °C |
Chemical resistance | ดี |
Humidity resistance | ดีมาก |
Static shear resistance at 23°C | ดีมาก |
Ageing resistance (UV) | ดี |
การทนต่ออุณหภูมิระยะเวลาสั้น | 200 °C |
Elongation at break | 50 % |
Tensile strength | 20 N/cm |
Static shear resistance at 40°C | ดีมาก |
Tack | ดี |
การทนต่ออุณหภูมิระยะเวลายาว | 100 °C |
Softener resistance | ดี |
ความต้านทานความร้อนที่อุณหภูมิต่ำสุด | -40 °C |
Chemical resistance | ดี |
Humidity resistance | ดีมาก |
Static shear resistance at 23°C | ดีมาก |
Ageing resistance (UV) | ดี |
การทนต่ออุณหภูมิระยะเวลาสั้น | 200 °C |
Adhesion to ABS (initial) | 10.8 N/cm |
Adhesion to ABS (after 14 days) | 11.9 N/cm |
Adhesion to Aluminium (initial) | 10.2 N/cm |
Adhesion to Aluminium (after 14 days) | 12.6 N/cm |
Adhesion to PC (initial) | 12.2 N/cm |
Adhesion to PC (after 14 days) | 13.4 N/cm |
Adhesion to PE (initial) | 5.6 N/cm |
Adhesion to PE (after 14 days) | 6.6 N/cm |
Adhesion to PET (initial) | 9.8 N/cm |
Adhesion to PET (after 14 days) | 11.9 N/cm |
Adhesion to PP (after 14 days) | 8.8 N/cm |
Adhesion to PP (covered side, initial) | 6 N/cm |
Adhesion to PS (initial) | 10.4 N/cm |
Adhesion to PS (after 14 days) | 12.1 N/cm |
Adhesion to PVC (initial) | 9.6 N/cm |
Adhesion to PVC (after 14 days) | 12.8 N/cm |
Adhesion to Steel (initial) | 11.5 N/cm |
Adhesion to Steel (after 14 days) | 14 N/cm |
Adhesion to ABS (initial) | 10.8 N/cm |
Adhesion to ABS (after 14 days) | 11.9 N/cm |
Adhesion to Aluminium (initial) | 10.2 N/cm |
Adhesion to Aluminium (after 14 days) | 12.6 N/cm |
Adhesion to PC (initial) | 12.2 N/cm |
Adhesion to PC (after 14 days) | 13.4 N/cm |
Adhesion to PE (initial) | 5.6 N/cm |
Adhesion to PE (after 14 days) | 6.6 N/cm |
Adhesion to PET (initial) | 9.8 N/cm |
Adhesion to PET (after 14 days) | 11.9 N/cm |
Adhesion to PP (after 14 days) | 8.8 N/cm |
Adhesion to PP (covered side, initial) | 6 N/cm |
Adhesion to PS (initial) | 10.4 N/cm |
Adhesion to PS (after 14 days) | 12.1 N/cm |
Adhesion to PVC (initial) | 9.6 N/cm |
Adhesion to PVC (after 14 days) | 12.8 N/cm |
Adhesion to Steel (initial) | 11.5 N/cm |
Adhesion to Steel (after 14 days) | 14 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
