Product Construction
Backing material | non-woven |
Color | โปร่งแสง |
Color of liner | สีน้ำตาล |
Thickness of liner | 70 µm |
Total thickness | 160 µm |
Type of adhesive | type: synthetic rubber |
Type of liner | type: glassine |
Weight of liner | 78 g/m² |

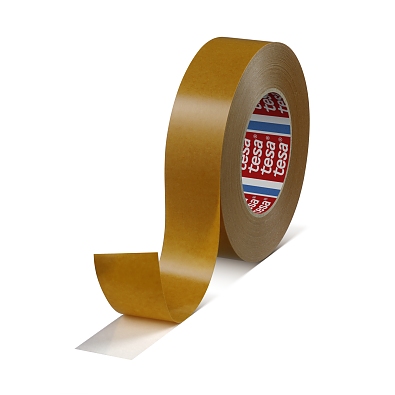

เทป non-woven กาวสองหน้า
tesa® 51570 เป็นเทปสองด้านที่มี backing เป็น non-woven ใช้สำหรับการติดแบบถาวรของโลหะและพลาสติก เช่น อลูมิเนียม, โพลีสไตรีน, โพลีโพรพิลีน, ABS มีชั้นกาวที่หนามากยึดติดได้ดีมากบนพื้นผิวที่ไม่สม่ำเสมอและมีแรงยึดติดเริ่มต้นที่สูงมาก
Backing material | non-woven |
Color | โปร่งแสง |
Color of liner | สีน้ำตาล |
Thickness of liner | 70 µm |
Total thickness | 160 µm |
Type of adhesive | type: synthetic rubber |
Type of liner | type: glassine |
Weight of liner | 78 g/m² |
Backing material | non-woven |
Color | โปร่งแสง |
Color of liner | สีน้ำตาล |
Thickness of liner | 70 µm |
Total thickness | 160 µm |
Type of adhesive | type: synthetic rubber |
Type of liner | type: glassine |
Weight of liner | 78 g/m² |
Elongation at break | 2 % |
Tensile strength | 9 N/cm |
Static shear resistance at 40°C | ดีมาก |
Static shear resistance at 70°C | ดี |
Humidity resistance | ดี |
การทนต่ออุณหภูมิระยะเวลายาว | 40 °C |
Ageing resistance (UV) | กลาง |
Static shear resistance at 23°C | ดี |
Fogging | ดีมาก |
Tack | ดีมาก |
การทนต่ออุณหภูมิระยะเวลาสั้น | 80 °C |
Elongation at break | 2 % |
Tensile strength | 9 N/cm |
Static shear resistance at 40°C | ดีมาก |
Static shear resistance at 70°C | ดี |
Humidity resistance | ดี |
การทนต่ออุณหภูมิระยะเวลายาว | 40 °C |
Ageing resistance (UV) | กลาง |
Static shear resistance at 23°C | ดี |
Fogging | ดีมาก |
Tack | ดีมาก |
การทนต่ออุณหภูมิระยะเวลาสั้น | 80 °C |
Adhesion to ABS (initial) | 11.8 N/cm |
Adhesion to Aluminium (initial) | 13 N/cm |
Adhesion to PC (initial) | 13.4 N/cm |
Adhesion to PE (initial) | 8 N/cm |
Adhesion to PE (after 14 days) | 8.5 N/cm |
Adhesion to PET (initial) | 10.6 N/cm |
Adhesion to PP (initial) | 9 N/cm |
Adhesion to PP (after 14 days) | 9 N/cm |
Adhesion to PS (initial) | 12.4 N/cm |
Adhesion to PVC (initial) | 12 N/cm |
Adhesion to PVC (after 14 days) | 13 N/cm |
Adhesion to Steel (initial) | 12.5 N/cm |
Adhesion to Steel (after 14 days) | 13 N/cm |
Adhesion to Steel (covered side, initial) | 12.5 N/cm |
Adhesion to ABS (initial) | 11.8 N/cm |
Adhesion to Aluminium (initial) | 13 N/cm |
Adhesion to PC (initial) | 13.4 N/cm |
Adhesion to PE (initial) | 8 N/cm |
Adhesion to PE (after 14 days) | 8.5 N/cm |
Adhesion to PET (initial) | 10.6 N/cm |
Adhesion to PP (initial) | 9 N/cm |
Adhesion to PP (after 14 days) | 9 N/cm |
Adhesion to PS (initial) | 12.4 N/cm |
Adhesion to PVC (initial) | 12 N/cm |
Adhesion to PVC (after 14 days) | 13 N/cm |
Adhesion to Steel (initial) | 12.5 N/cm |
Adhesion to Steel (after 14 days) | 13 N/cm |
Adhesion to Steel (covered side, initial) | 12.5 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
