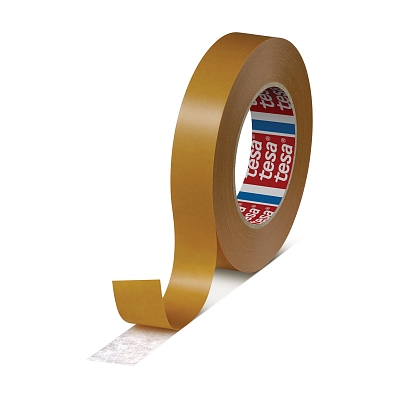

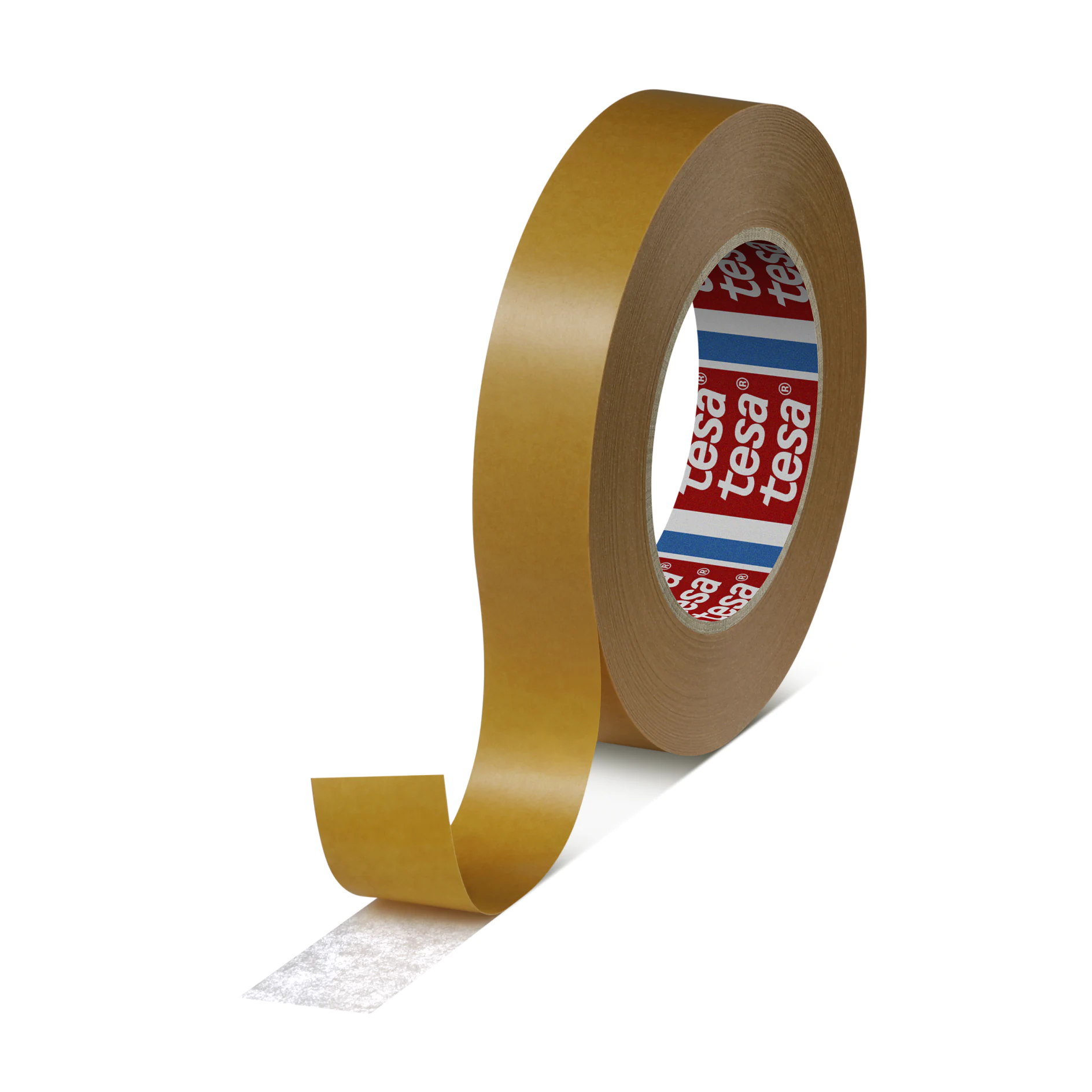

tesa 51570 double sided non woven tape white transluscent 515700000200
Product information

tesa® 51570

เทป non-woven กาวสองหน้า



Product description

tesa® 51570 เป็นเทปสองด้านที่มี backing เป็น non-woven ใช้สำหรับการติดแบบถาวรของโลหะและพลาสติก เช่น อลูมิเนียม, โพลีสไตรีน, โพลีโพรพิลีน, ABS มีชั้นกาวหนายึดติดได้ดีบนพื้นผิวที่ไม่สม่ำเสมอและมีแรงยึดติดเริ่มต้นที่สูงมาก

Main applications

การติดประกอบงานทั่วไป
 tesa 51570 double sided non woven tape white transluscent 515700000200
tesa-51570-double-sided-non-woven-tape-white-transluscent-515700000200-pr
tesa 51570 double sided non woven tape white transluscent 515700000600
tesa 51570 double sided non woven tape white transluscent 515700000400
tesa 51570 double sided non woven tape white transluscent 515700001800

tesa 51570 double sided non woven tape white transluscent 515700000200

tesa-51570-double-sided-non-woven-tape-white-transluscent-515700000200-pr

tesa 51570 double sided non woven tape white transluscent 515700000600

tesa 51570 double sided non woven tape white transluscent 515700000400

tesa 51570 double sided non woven tape white transluscent 515700001800

Technical properties

Type of adhesive

ยางสังเคราะห์

Total thickness

110 µm

Backing material

non-woven

Adhesion properties

Adhesion to Steel (initial)

12 N/cm

Adhesion to PE (initial)

5.5 N/cm

Adhesion to PP (after 14 days)

12 N/cm

Adhesion to PVC (initial)

9 N/cm

Adhesion to PE (after 14 days)

7 N/cm

Adhesion to PS (initial)

8 N/cm

Adhesion to PP (initial)

7 N/cm

Adhesion to Steel (after 14 days)

13 N/cm

Adhesion to PVC (after 14 days)

12.5 N/cm

Rating properties

Static shear resistance at 23°C

+

Resistance to chemicals

-

Humidity resistance

+

Tack

++

Ageing resistance (UV)

o

Temperature resistance long term

40 °C

Static shear resistance at 40°C

-

Fogging

+

Temperature resistance short term

80 °C

Softener resistance

-

Additional Info

ไม่แนะนำให้ใช้ tesa® 51570 เมื่ออุณหภูมิเกินกว่า 60° C เป็นระยะเวลานาน

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
