tesa® 51025 PV10

เทปผ้า PET ฉีกได้ด้วยมือสำหรับการห่อหุ้มสายไฟ


คุณสมบัติของสินค้า
  • ทนต่ออุณหภูมิ 125°C
  • แรงคลายตัวมีความเสถียร
  • กาวปราศจากตัวทำละลาย
ทั้งหมด ผลิตภัณฑ์ คุณลักษณะ
Product description

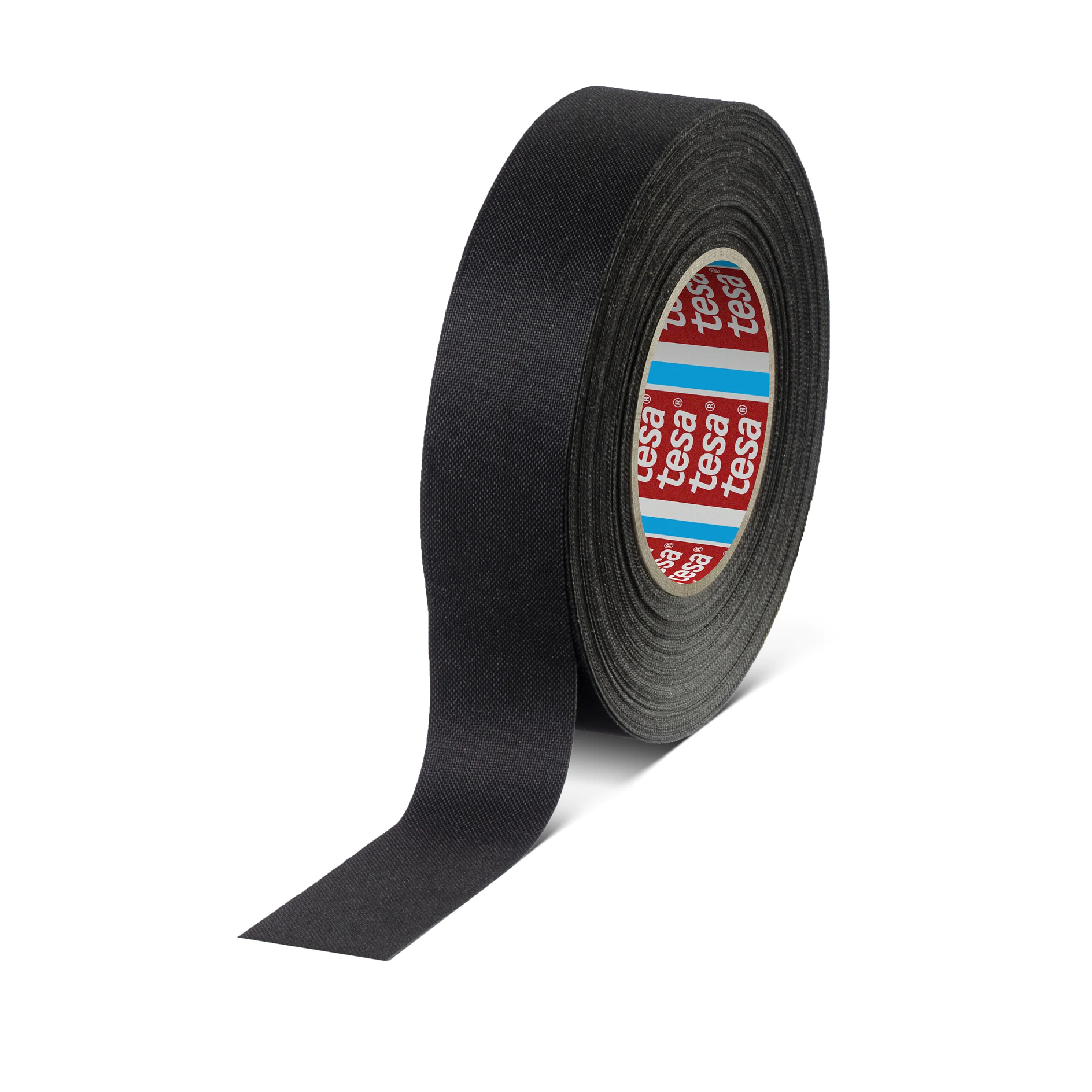

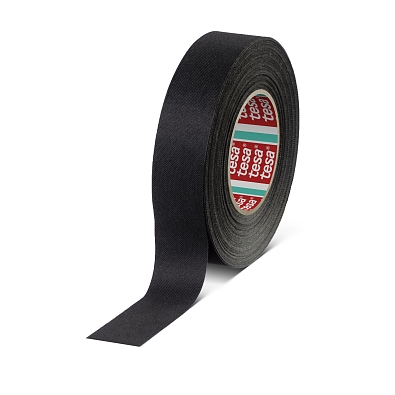

tesa® 51025 PV10 เป็นเทปผ้า PET พร้อมด้วยกาวยางที่ปราศจากตัวทำละลาย ใช้สำหรับหุ้มสายไฟ

คุณสมบัติสำคัญ :

  • ทนต่ออุณหภูมิ 125 °C/3000 ชั่วโมง
  • ปลอดสารทำละลาย
  • ฉีกได้ด้วยมือ

สี: สีดำ


รายละเอียดผลิตภัณฑ์และข้อมูลเฉพาะ

คุณสมบัติของสินค้า

  • ทนต่ออุณหภูมิ 125°C
  • แรงคลายตัวมีความเสถียร
  • กาวปราศจากตัวทำละลาย
  • ฉีกได้ด้วยมือ

Application Fields

tesa® 51025 PV10 ออกแบบสำหรับการห่อหุ้มสายไฟ สำหรับงานที่ต้องทนอุณหภูมิระดับ 125°C.
ความหนารวม 150 µm
ประเภทกาว rubber based
วัสดุตัวเทป PET cloth
การยืดตัวเมื่อขาด 25 %
ความทนต่อแรงดึง 80 N/cm
ทนต่อการขัดถู (แกนหมุน 5 มม., LV312) Class A
ความต้านทานความร้อนที่อุณหภูมิต่ำสุด -40 °C
แรงดันไฟฟ้าเบรกดาวน์ 6,300 V
แรงในการลอกออก (ความกว้างม้วน > 9 มม.) 8 N/roll (30 m/min)
ทนต่อการขัดถู (แกนหมุน 10 มม., LV312) Class B
ลดเสียงรบกวน (LV312) Class A
แรงในการลอกออก (ความกว้างม้วน < 9 มม.) 8 N/roll (30 m/min)
ฉีกได้ด้วยมือ ใช่
ค่าการต้านทานความร้อนสูงสุด 125 °C
การยึดเกาะกับเหล็ก 6.5 N/cm
ความกว้างมาตรฐาน: 9, 19, 25, 32, 38 มม.
ความยาวมาตรฐาน: 25, 50 ม.

1 สามารถคละความกว้างและความยาวมีขนาดอื่น ๆ ไว้พร้อมตามความต้องการ
  • เส้นผ่าศูนย์แกนมาตรฐาน: 38 มม.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้

Get in contact with us!

ติดต่อเรา

ขอบคุณสำหรับข้อความ

ทางเราจะติดต่อกลับโดยเร็วที่สุด

Something went wrong. Please try again later.

เปรียบเทียบผลิตภัณฑ์

ชื่อผลิตภัณฑ์ tesa® 51025 PV10 tesa® Supersleeve 51036 PV6 A tesa® Sleeve 51036 PV9 OR tesa® Supersleeve 51026 PV6 tesa® Spiralsleeve 51036 PV5 tesa® Sleeve 51036 PV9 tesa® 51026 tesa® 51006 tesa® 51037 tesa® Sleeve 51036 PV9 A tesa® 68000 PV1 tesa® Sleeve 51026 PV9
ความหนารวม
150 µm
530 µm
220 µm
530 µm
530 µm
220 µm
260 µm
320
230 µm
220 µm
210 µm
220 µm
ประเภทกาว
rubber based
advanced acrylic
อะครีลิค
อะครีลิค
advanced acrylic
อะครีลิค
อะครีลิค
rubber based
advanced acrylic
อะครีลิค
อะครีลิค
อะครีลิค
วัสดุตัวเทป
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
aluminium laminated glasscloth
PET cloth
ค่าการต้านทานความร้อนสูงสุด
125 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
การยึดเกาะกับเหล็ก
6.5 N/cm
5 N/cm
5 N/cm
5.5 N/cm
3 N/cm
5 N/cm
5.5 N/cm
4.5 N/cm
3 N/cm
5 N/cm
6 N/cm
5.5 N/cm
ความต้านทานความร้อนที่อุณหภูมิต่ำสุด
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
