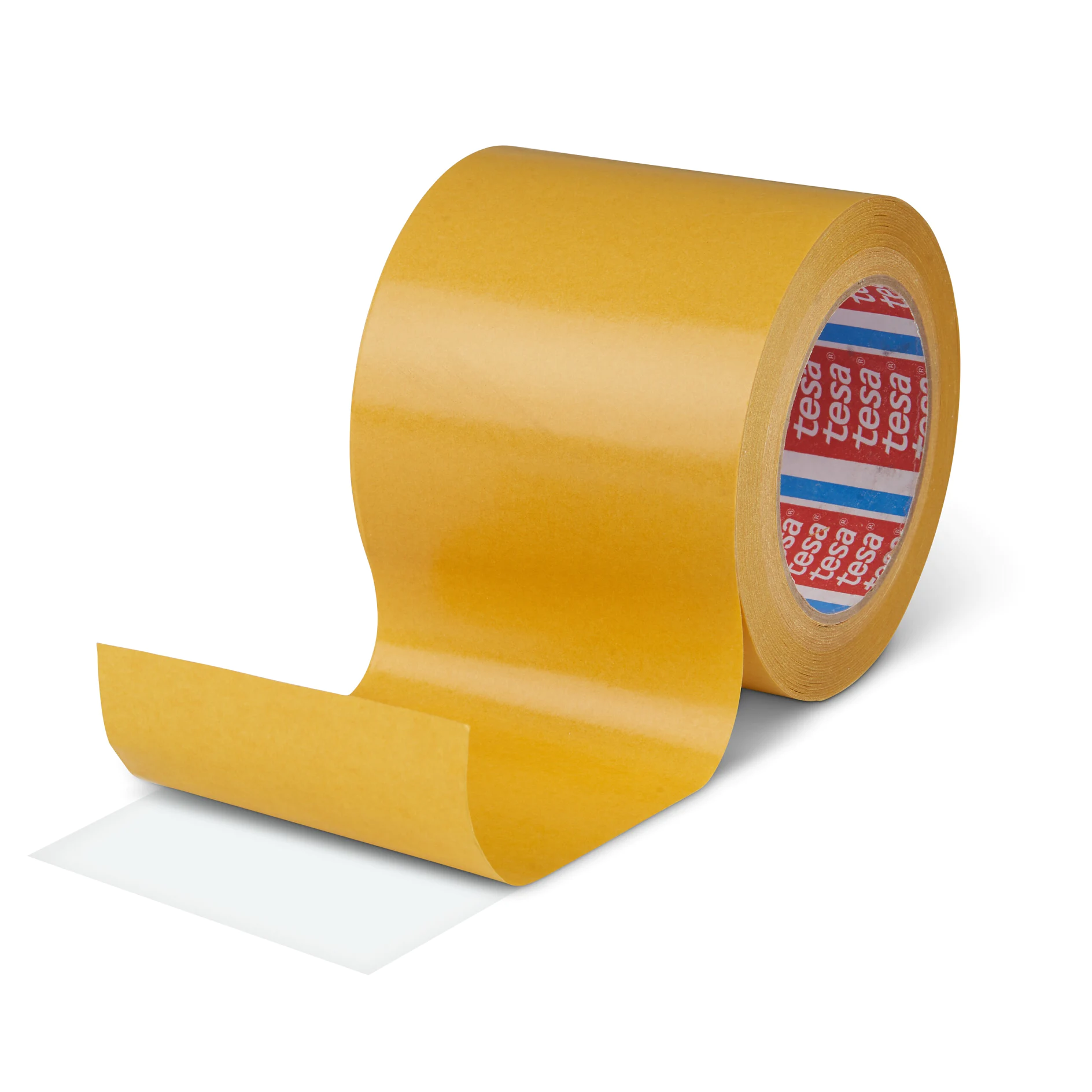

tesa® 4972
เทปฟิล์มใสสองหน้า หนา 48 ไมครอน
Product description
tesa® 4972 เป็นเทปกาวสองด้าน โปร่งใส ประกอบด้วย backing ชนิดPET และกาวtackified acrylic.
tesa® 4972 มีคุณสมบัติเฉพาะคือ:
tesa® 4972 มีคุณสมบัติเฉพาะคือ:
- ความหนา: 48μm
- ระดับการยึดเกาะสูง
- ต้านทานต่อสภาพแวดล้อม
- มีประสิทธิภาพการจัดการควบคุมที่ดีเยี่ยมในการ converting
Application Fields
- การติดป้ายโลหะหรือพลาสติคและป้ายต่าง ๆ
- การติดฟอยล์สะท้อนเข้ากับกรอบจอแอลซีดี
- การต่อฟิล์มพลาสติกแบบบาง
Product Construction
Backing material | PET film |
Color | โปร่งใส |
Total thickness | 48 µm |
Type of adhesive | type: tackified acrylic |
Properties / Performance Values
Elongation at break | 50 % |
Tensile strength | 20 N/cm |
Chemical resistance | ดี, กลาง |
Tack | ดีมาก |
Ageing resistance (UV) | ดี, กลาง |
การทนต่ออุณหภูมิระยะเวลาสั้น | 200 °C |
Static shear resistance at 23°C | ดี, กลาง |
Softener resistance | ดี, กลาง |
Humidity resistance | ดีมาก |
การทนต่ออุณหภูมิระยะเวลายาว | 100 °C |
Static shear resistance at 40°C | ดี, กลาง |
Adhesion to Values
Adhesion to ABS (initial) | 5.3 N/cm |
Adhesion to ABS (after 14 days) | 6.5 N/cm |
Adhesion to Aluminium (initial) | 5.2 N/cm |
Adhesion to Aluminium (after 14 days) | 7.7 N/cm |
Adhesion to PC (initial) | 6.5 N/cm |
Adhesion to PC (after 14 days) | 8.6 N/cm |
Adhesion to PE (initial) | 3.1 N/cm |
Adhesion to PE (after 14 days) | 3.5 N/cm |
Adhesion to PET (initial) | 5.3 N/cm |
Adhesion to PET (after 14 days) | 7 N/cm |
Adhesion to PP (initial) | 3 N/cm |
Adhesion to PP (after 14 days) | 4.8 N/cm |
Adhesion to PS (initial) | 5.4 N/cm |
Adhesion to PS (after 14 days) | 7.1 N/cm |
Adhesion to PVC (initial) | 5.7 N/cm |
Adhesion to PVC (after 14 days) | 9.4 N/cm |
Adhesion to Steel (initial) | 7 N/cm |
Adhesion to Steel (after 14 days) | 9.6 N/cm |
Additional Info
ความหลากหลายของ liner:
PV20 กระดาษกลาสซีนสีน้ำตาล/โลโก้สีฟ้า (71µm; 82 ก./ตรม.)
PV43 กระดาษเคลือบ PE สีขาว/โลโก้สีฟ้า (122µm; 120 ก./ตรม.)
PV20 กระดาษกลาสซีนสีน้ำตาล/โลโก้สีฟ้า (71µm; 82 ก./ตรม.)
PV43 กระดาษเคลือบ PE สีขาว/โลโก้สีฟ้า (122µm; 120 ก./ตรม.)
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
