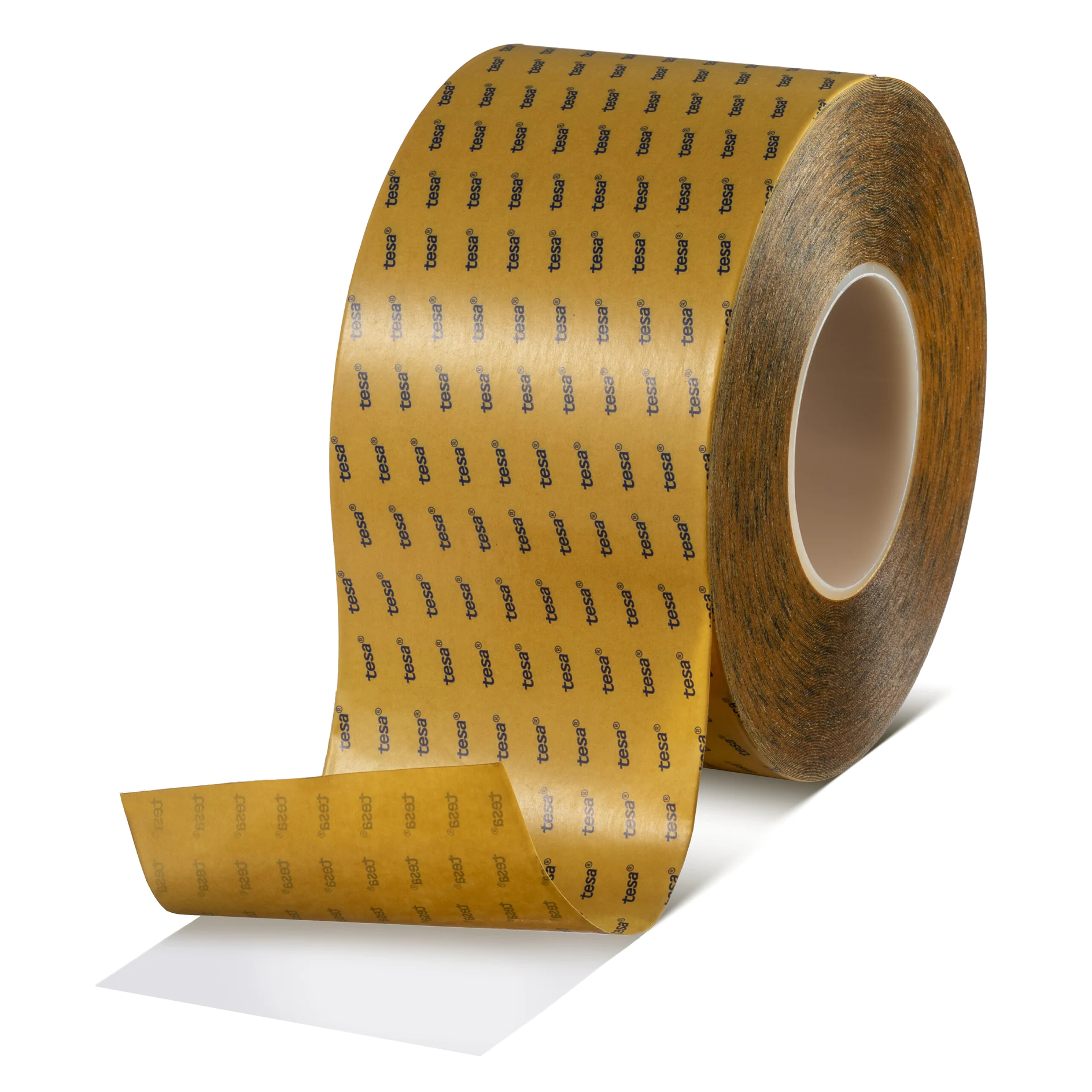

tesa® 4965 Original Next Gen
เทปฟิล์มใส กาวสองหน้า หนา 205ไมครอน
Product description
tesa® 4965 เป็นเทปใส ชนิดกาวสองหน้า ประกอบด้วย backing ชนิดฟิล์ม PET และกาว tackyfied acrylic
tesa® 4965 มีคุณสมบัติเฉพาะคือ:
tesa® 4965 มีคุณสมบัติเฉพาะคือ:
- มีแรงยึดติดที่สูงแม้บนพื้นผิวที่แข็ง
- งานที่ติดตั้งสามารถใช้งานได้ทันทีหลังจากติดเทป
- เหมาะสำหรับการใช้งานที่ต้องการคุณสมบัติขั้นสูง เช่น ทนทานต่อ heavy strees ทนทานต่ออุณหภูมิสูงหรือใช้งานกับพื้นผิวที่ติดยาก
Application Fields
จากสิทธิบัตรของ tesa® 4956 คุณสมบัติเฉพาะของ tesa® 4956 มีคุณสมบัติที่โดดเด่น คือความปลอดภัย ความทนทาน ช่วยให้กระบวนการผลิตดีขึ่น ใช้ได้ในหลายๆ อุตสาหกรรม
4965 เป็นที่ยอมรับตามมาตรฐาน UL standard 969. UL file: MH 18055
มีเอกสารรับรองตาม DIN EN 45545-2 สำหรับ 2R1+HL3
- การติดชิ้นส่วนพลาสติก ABS ในอุตสาหกรรมรถยนต์
- การติดยาง/EPDM โปรไฟล์
- การติดลวดลายการตกแต่งและงานขึ้นรูปในอุตสาหกรรมเฟอร์นิเจอร์
- การติดbattery packs เลนส์และจอสัมผัส ในอุปกรณ์อิเล็กทรอนิกส์
4965 เป็นที่ยอมรับตามมาตรฐาน UL standard 969. UL file: MH 18055
มีเอกสารรับรองตาม DIN EN 45545-2 สำหรับ 2R1+HL3
Product Construction
Backing material | PET film |
Color | โปร่งใส |
Color of liner | สีแดง |
Total thickness | 205 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: MOPP |
Properties / Performance Values
Elongation at break | 50 % |
Tensile strength | 20 N/cm |
Chemical resistance | ดี |
Static shear resistance at 40°C | ดีมาก |
ความต้านทานความร้อนที่อุณหภูมิต่ำสุด | -40 °C |
Softener resistance | ดี |
การทนต่ออุณหภูมิระยะเวลาสั้น | 200 °C |
Ageing resistance (UV) | ดี |
Humidity resistance | ดีมาก |
Static shear resistance at 23°C | ดีมาก |
Tack | ดี |
การทนต่ออุณหภูมิระยะเวลายาว | 100 °C |
Adhesion to Values
Adhesion to ABS (initial) | 10.3 N/cm |
Adhesion to ABS (after 14 days) | 12 N/cm |
Adhesion to Aluminium (initial) | 9.2 N/cm |
Adhesion to Aluminium (after 14 days) | 10.6 N/cm |
Adhesion to PC (initial) | 12.6 N/cm |
Adhesion to PC (after 14 days) | 14 N/cm |
Adhesion to PE (initial) | 5.8 N/cm |
Adhesion to PE (after 14 days) | 6.9 N/cm |
Adhesion to PET (initial) | 9.2 N/cm |
Adhesion to PET (after 14 days) | 9.5 N/cm |
Adhesion to PP (initial) | 6.8 N/cm |
Adhesion to PP (after 14 days) | 7.9 N/cm |
Adhesion to PS (initial) | 10.6 N/cm |
Adhesion to PS (after 14 days) | 12 N/cm |
Adhesion to PVC (initial) | 8.7 N/cm |
Adhesion to PVC (after 14 days) | 13 N/cm |
Adhesion to Steel (initial) | 11.5 N/cm |
Adhesion to Steel (after 14 days) | 11.8 N/cm |
Certificates
- tesa® 4965 Original Next Gen contains a total of 62% biocarbon content (including red MOPP liner)
- which is composed of 20% bio-based carbon content directly derived from biological sources and 42% bio-attributed carbon content from the use of biomass balanced adhesive components that are ISCC PLUS certified. The double-sided mounting tape contains a 90% recycled PET backing
- resulting in an average of 5% post-consumer recycled content (including red MOPP liner) in the tape. This is a third-party environmental claim validated against the UL Environmental Claim Validation Procedure 2809 for recycled content. The UL Environmental Claim Validation Program falls under UL’s ISO/IEC 17025 accreditation.
Additional Info
ความหลากหลายของ liner:
PV0 ฟิล์ม MOPP สีแดง (80µm; 72 ก./ตรม.)
PV1 กระดาษกลาสซีนสีน้ำตาล (69µm; 80 ก./ตรม.)
PV2 กระดาษกลาสซีนสีน้ำตาล (78µm; 90 ก./ตรม.)
PV4: กระดาษพิมพ์ยี่ห้อ (104μm; 120 ก./ตรม.)
PV8: ฟิล์ม MOPP สีขาว(80μm; 72ก./ ตรม.)
PV20: กระดาษพิมพ์ยี่ห้อสีน้ำตาล (69μm; 80 ก./ตรม.)
ข้อมูลเกี่ยวกับผลิตภัณฑ์นี้อ้างอิงกับ PV1 จากผล VDA278
เทปชนิดนี้ไม่มีส่วนผสมที่ต้องห้ามของ GB regulations (China) รวมถึงคู่มือการใช้กับพื้นที่ภายในอาคารของ Health, Labour and Welfare Ministry (Japan).
PV0 ฟิล์ม MOPP สีแดง (80µm; 72 ก./ตรม.)
PV1 กระดาษกลาสซีนสีน้ำตาล (69µm; 80 ก./ตรม.)
PV2 กระดาษกลาสซีนสีน้ำตาล (78µm; 90 ก./ตรม.)
PV4: กระดาษพิมพ์ยี่ห้อ (104μm; 120 ก./ตรม.)
PV8: ฟิล์ม MOPP สีขาว(80μm; 72ก./ ตรม.)
PV20: กระดาษพิมพ์ยี่ห้อสีน้ำตาล (69μm; 80 ก./ตรม.)
ข้อมูลเกี่ยวกับผลิตภัณฑ์นี้อ้างอิงกับ PV1 จากผล VDA278
เทปชนิดนี้ไม่มีส่วนผสมที่ต้องห้ามของ GB regulations (China) รวมถึงคู่มือการใช้กับพื้นที่ภายในอาคารของ Health, Labour and Welfare Ministry (Japan).
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
