Product information

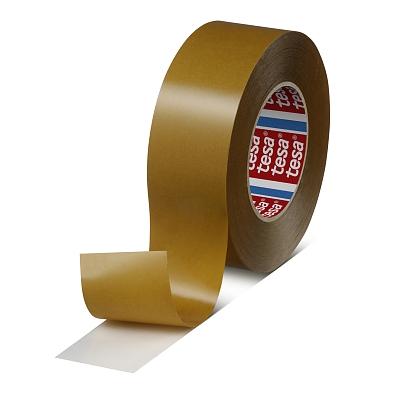

tesa® 4962

เทป non-woven กาวสองหน้า เกรดพรีเมี่ยม



Product description

tesa® 4962 เป็นเทปกาวสองหน้าซึ่งประกอบด้วย backing ชนิด non-woven เคลือบด้วยกาว tackyfied acrylic

tesa® 4962 มีคุณสมบัติเฉพาะคือ:
  • ค่าการยึดเกาะสูงกับพื้นผิวที่แตกต่างกัน
  • คุณสมบัติการยึดติด (wetting) ที่ดีเยียม มีแรงยึดติดที่ดีบนพื้นผิวขรุขระ
  • ทนต่ออุณหภูมิสูงได้ดีเยี่ยม

Main applications

การติดชิ้นส่วนพลาสติกและโฟม กระดาษที่หนัก สิ่งทอและเครื่องหนัง
tesa-4962-160micrometer-double-sided-non-woven-tape-049620001300-pr
tesa-4962-160micrometer-double-sided-non-woven-tape-049620001200-pr
tesa-4962-160micrometer-double-sided-non-woven-tape-049620000700-pr
tesa-4962-160micrometer-double-sided-non-woven-tape-049620000500-pr
tesa-4962-160micrometer-double-sided-non-woven-tape-049620000400-pr
tesa-4962-160micrometer-double-sided-non-woven-tape-049620001300-pr

tesa-4962-160micrometer-double-sided-non-woven-tape-049620001300-pr

tesa-4962-160micrometer-double-sided-non-woven-tape-049620001200-pr

tesa-4962-160micrometer-double-sided-non-woven-tape-049620000700-pr

tesa-4962-160micrometer-double-sided-non-woven-tape-049620000500-pr

tesa-4962-160micrometer-double-sided-non-woven-tape-049620000400-pr

tesa-4962-160micrometer-double-sided-non-woven-tape-049620001300-pr

Technical properties

Elongation at break

3 %

Type of adhesive

Tackified Acrylic

Tensile strength

8 N/cm

Total thickness

160 µm

Backing material

non-woven

Color

โปร่งแสง

Adhesion properties

Adhesion to Steel (initial)

11.5 N/cm

Adhesion to PE (initial)

6.5 N/cm

Adhesion to PC (after 14 days)

12.4 N/cm

Adhesion to PS (after 14 days)

13 N/cm

Adhesion to ABS (initial)

11 N/cm

Adhesion to PP (after 14 days)

10 N/cm

Adhesion to PET (after 14 days)

10.5 N/cm

Adhesion to Aluminium (after 14 days)

10.5 N/cm

Adhesion to PE (after 14 days)

7 N/cm

Adhesion to PC (covered side, after 14 days)

14 N/cm

Adhesion to Aluminium (initial)

10 N/cm

Adhesion to ABS (after 14 days)

12 N/cm

Adhesion to PC (initial)

13 N/cm

Adhesion to PVC (initial)

11 N/cm

Adhesion to PS (initial)

12 N/cm

Adhesion to PET (initial)

9.5 N/cm

Adhesion to PP (initial)

8.5 N/cm

Adhesion to Steel (after 14 days)

12 N/cm

Adhesion to PVC (after 14 days)

15 N/cm

Rating properties

Static shear resistance at 23°C

+

Resistance to chemicals

+

Humidity resistance

++

Static shear resistance at 40°C

o

Tack

++

Ageing resistance (UV)

++

Temperature resistance long term

80 °C

Temperature resistance short term

200 °C

Softener resistance

o

Additional Info

ความหลากหลายของ liner:
PV0 กระดาษกลาสซีนสีน้ำตาล (71 µm)
PV6 ฟิล์ม MOPP สีแดง (80 µm)

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
