Product Construction
Backing material | cloth |
Color | สีขาว |
Color of liner | สีน้ำตาล |
Total thickness | 235 µm |
Type of adhesive | type: synthetic rubber |
Type of liner | type: glassine |
ผ้า PET กาวสองหน้า ที่ลอกออกได้ ระบบกาวรับเบอร์ที่แตกต่างกัน

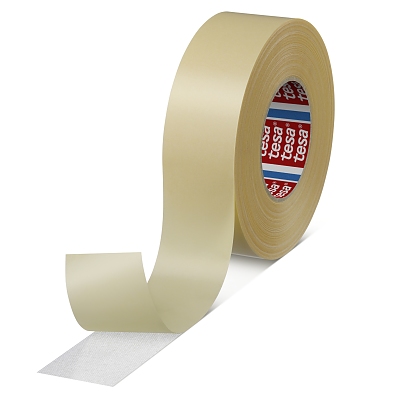

tesa® 4939 เป็นเทปกาวสองหน้าสำหรับติดพื้น ประกอบด้วย backing ชนิดผ้า PET ที่แข็งแรงและกาวรับเบอร์ที่ต่างชนิดกัน
กาวสูตรพิเศษที่อยู่ด้านเปิดจากม้วนเป็นกาวชนิดที่มีแรงยึดเกาะสูงและไม่ทิ้งคราบบนพื้นผิววัสดุทั่วไปหลังจากใช้งานและดึงออกได้นานหลังจากกการติดถึง 14 วันบนพื้นผิวที่ใช้งานกันทั่วไป (ต้องทดสอบก่อนการใช้งานจริง!)
Backing material | cloth |
Color | สีขาว |
Color of liner | สีน้ำตาล |
Total thickness | 235 µm |
Type of adhesive | type: synthetic rubber |
Type of liner | type: glassine |
Backing material | cloth |
Color | สีขาว |
Color of liner | สีน้ำตาล |
Total thickness | 235 µm |
Type of adhesive | type: synthetic rubber |
Type of liner | type: glassine |
Elongation at break | 25 % |
Tensile strength | 38 N/cm |
Static shear resistance at 70°C | กลาง |
Humidity resistance | ดี |
Static shear resistance at 40°C | ดี |
Fogging | ดีมาก |
Chemical resistance | ดี |
Tack | ดีมาก |
การทนต่ออุณหภูมิระยะเวลาสั้น | 80 °C |
Ageing resistance (UV) | กลาง |
การทนต่ออุณหภูมิระยะเวลายาว | 40 °C |
Elongation at break | 25 % |
Tensile strength | 38 N/cm |
Static shear resistance at 70°C | กลาง |
Humidity resistance | ดี |
Static shear resistance at 40°C | ดี |
Fogging | ดีมาก |
Chemical resistance | ดี |
Tack | ดีมาก |
การทนต่ออุณหภูมิระยะเวลาสั้น | 80 °C |
Ageing resistance (UV) | กลาง |
การทนต่ออุณหภูมิระยะเวลายาว | 40 °C |
Adhesion to PE (initial) | 2.5 N/cm |
Adhesion to PE (after 14 days) | 2 N/cm |
Adhesion to PE (covered side, initial) | 4.5 N/cm |
Adhesion to PE (covered side, after 14 days) | 5 N/cm |
Adhesion to PP (initial) | 4.5 N/cm |
Adhesion to PP (after 14 days) | 2.5 N/cm |
Adhesion to PP (covered side, after 14 days) | 5 N/cm |
Adhesion to PP (covered side, initial) | 6.5 N/cm |
Adhesion to Steel (initial) | 7.5 N/cm |
Adhesion to Steel (after 14 days) | 5.5 N/cm |
Adhesion to Steel (covered side, after 14 days) | 8 N/cm |
Adhesion to Steel (covered side, initial) | 9 N/cm |
Adhesion to PE (initial) | 2.5 N/cm |
Adhesion to PE (after 14 days) | 2 N/cm |
Adhesion to PE (covered side, initial) | 4.5 N/cm |
Adhesion to PE (covered side, after 14 days) | 5 N/cm |
Adhesion to PP (initial) | 4.5 N/cm |
Adhesion to PP (after 14 days) | 2.5 N/cm |
Adhesion to PP (covered side, after 14 days) | 5 N/cm |
Adhesion to PP (covered side, initial) | 6.5 N/cm |
Adhesion to Steel (initial) | 7.5 N/cm |
Adhesion to Steel (after 14 days) | 5.5 N/cm |
Adhesion to Steel (covered side, after 14 days) | 8 N/cm |
Adhesion to Steel (covered side, initial) | 9 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
