Acrylic Double Sided Tapes For Permanent Bonding

Acrylic Double Sided Tapes For Permanent Bonding

tesa® ACXplus is an acrylic tape that provides a powerful and long-lasting bond. Acrylic adhesives have optimal wetting characteristics and chemically adapts to surfaces, making them the ideal tape for permanent bonding applications across all industries.



tesa® ACXplus Acrylic Double Sided Tape

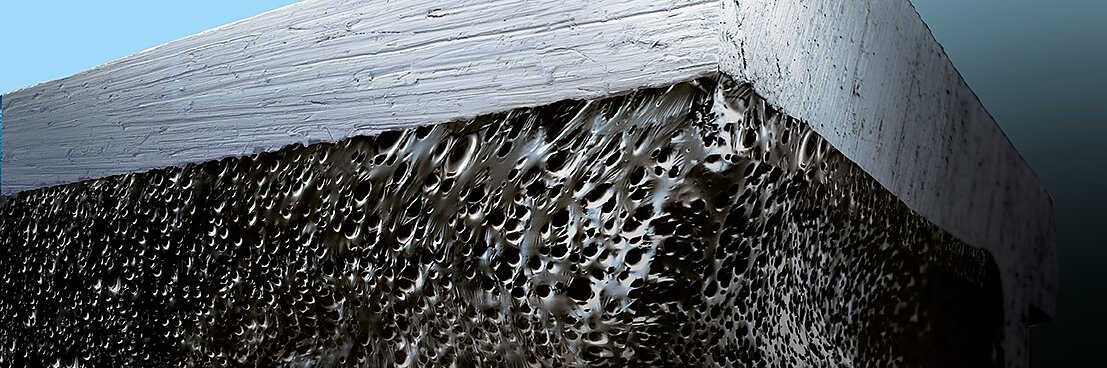

tesa® ACXplus is an acrylic core double sided tape for high performance constructive bonding and is the highest performing product range made by tesa. The range includes tapes with solid acrylic cores and foamed acrylic cores.Acrylic tapes are commonly used in many industries, as they can bond on a wide variety of even and uneven surfaces, such as plastics, glass, wood and most metals. Acrylic double sided tapes are great for permanent mounting, as they are resistant to different temperatures and weather conditions, while foam backed acrylic tapes provide additional benefits such as sound, shock and vibration absorption.



The Power of Acrylic Adhesives

The high performance of tesa® ACXplus is based on a special feature called 'viscoelasticity'. Viscoelasticity describes a material which is defined by both viscous and elastic properties. The elastic restoring forces provide inner strength, whilst the viscous part allows for relaxation of mechanical stresses. This means acrylic tapes are able to compensate for the different thermal expansion and contraction characteristics of dissimilar materials.

The special balance between these two properties not only provides optimal wetting of different surfaces, in other words optimum surface contact, but also absorbs dynamic forces and vibrations relieving stresses in the bond. This results in a bond that is both dimensionally stable and permanent

Learn more about the acrylic core tapes in the tesa® ACXplus range below.

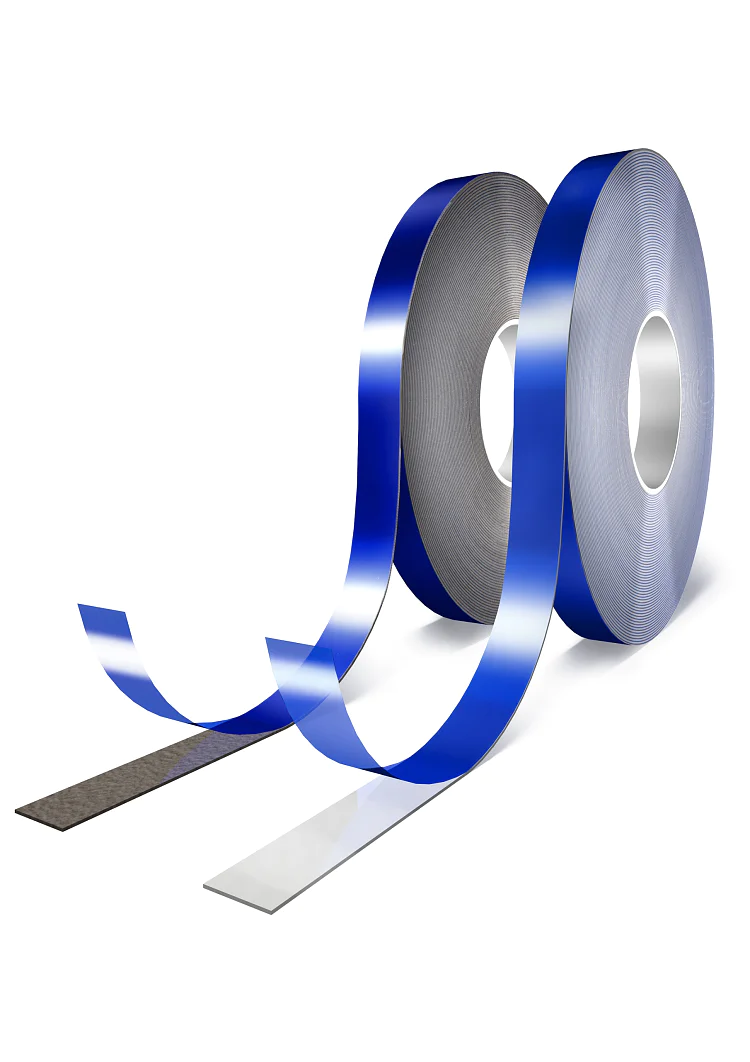

tesa® ACXplus Double Sided Acrylic Core Tape

tesa ACXplus Double Sided Acrylic Core Tape
tesa® ACXplus Acrylic Core tapes offer a high resistance to temperatures and different weather conditions. The main reason is the oxidation resistance of the fully saturated carbon chain which is the foundation of the acrylates used in tesa® ACXplus
tesa® ACXplus Acrylic Core tape is characterised by a very strong bonding power. Applied loads like wind, snow and the permanent load of bonded components can be accommodated by tesa® ACXplus without problems.
Due to the viscoelastic behaviour of tesa® ACXplus arising stresses can be optimally dissipated and a secure bond is assured. Extreme temperature changes are accommodated even for bonded substrates with different elongation characteristics.

Show filters

tesa® ACXplus 6808

Specifications
foamed acrylic
tackified acrylic
800 µm
600 %

tesa® ACXplus 6812

Specifications
foamed acrylic
tackified acrylic
1200 µm
600 %

tesa® ACXplus 6815

Specifications
foamed acrylic
tackified acrylic
1500 µm
600 %

tesa® ACXplus 7054

Specifications
solid acrylic
pure acrylic
500 µm
1000 %

tesa® ACXplus 7055

Specifications
solid acrylic
pure acrylic
1000 µm
1000 %

tesa® ACXplus 7056

Specifications
solid acrylic
pure acrylic
1500 µm
1000 %

tesa® ACXplus 7058

Specifications
solid acrylic
pure acrylic
2000 µm
1000 %

tesa® ACXplus 7062

Specifications
foamed acrylic
tackified acrylic
500 µm
600 %

tesa® ACXplus 7063

Specifications
foamed acrylic
tackified acrylic
800 µm
600 %

tesa® ACXplus 7065

Specifications
foamed acrylic
tackified acrylic
1200 µm
1000 %

tesa® ACXplus 7066

Specifications
foamed acrylic
tackified acrylic
1500 µm
600 %

tesa® ACXplus 7072

Specifications
foamed acrylic
pure acrylic
500 µm
1000 %

tesa® ACXplus 7074

Specifications
foamed acrylic
pure acrylic
1000 µm
1000 %

tesa® ACXplus 7076

Specifications
foamed acrylic
pure acrylic
1500 µm
1000 %

tesa® ACXplus 7078

Specifications
foamed acrylic
pure acrylic
2000 µm
1000 %

tesa® ACXplus 62680

Specifications
foamed acrylic
tackified acrylic
800 µm

tesa® ACXplus 62692

Specifications
foamed acrylic
tackified acrylic
1200 µm

tesa® ACXplus for the lift industry

Fixation of metal plates to assemble lift doors and frames.

Learn more
