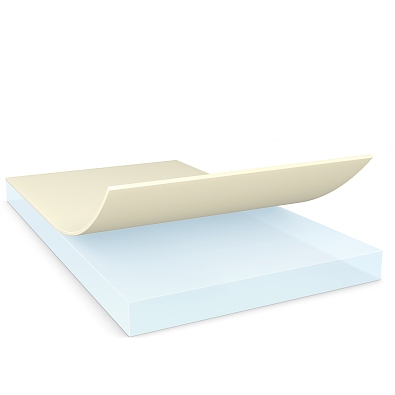

tesa_0870x_dr_001
Product information

tesa® XPU 8704

100µm 반응성 마운팅 테이프



Product description

tesa® XPU 8704 큐어링 과장을 거쳐 접착 강도와 탄성이 높은 heat & pressure 반응성 마운팅 테이프.


IEC 61249-2-2-21에 따라 할로겐프리 제품으로 현재 RoHS 규정을 준수.


tesa® XPU 8704는 조립 과정에서 가해지는 열과 압력에 반응하여 점착된다.


특성:
  • Extremely high bonding performance and reliability, even on thin design gaps
  • Excellent shock resistance
  • Extremely low oozing ratio
  • Translucent design

Main applications

tesa® XPU 8704 적용 권장 :
  • Bonding of plastics
  • Bonding of metals
  • Bonding of electronic components

Technical properties

점착제 종류

crosslinkable polyurethane

결합력 (푸쉬 아웃)

4 N/mm²

이형지 종류

PE 코팅된 직물

총두께

100 µm

기재 소재

없음

색깔

반투명

Additional Info

Technical recommendations: 기술적 정보
tesa® XPU 8704 is not self adhesive. It is activated by heat and pressure over a certain interval. The following values are recommendations for bond line parameters to start with.


1. Pre-lamination:
During pre-lamination, laminate the adhesive tape onto the first component.


Setting:
  • Temperature¹ 55-65 °C
  • Pressure² 3 bar
  • Time 5 – 20 s
Short-time exposure to 65 °C bond line temperature during pre-lamination does not impact final bonding potential.


2. Bonding:
Remove the liner from tape after the pre-lamination step.
Position the second component. Apply temperature and pressure for the bonding time to reach sufficient bonding strength.


2.1. PC/PC:
Setting:
  • Temperature¹ 80 – 140 °C
  • Pressure² 5 bar
  • Time 10 – 120 s


2.2. AL/PC:
Setting:
  • Temperature¹ 110 – 190 °C
  • Pressure² 5 bar
  • Time 20 – 120 s


Short cycle times can be achieved at high bond line temperatures. For activation at low temperatures, increase the heat-press time. To reach maximum bonding strength, surfaces should be clean and dry. Allow at least 1-2 hours dwell-time after bonding before performance testing. Final bonding strength will be reached after 24 hours.


Bonding strength values were obtained under standard laboratory conditions.
(PC/PC: bonding conditions: temperature = 110 °C (120°C jig); pressure = 5 bar; time = 60 sec / AL/PC: bonding conditions: temperature = 170 °C (180°C jig); pressure = 5 bar; time = 20 sec.)


Storage: tesa® recommends storage in original packaging in cool and dry conditions.


¹ ‘Pre-lamination’ and ‘Bonding’ temperature refer to the data that is measured in the bond line.
² ‘Pre-lamination’ and ‘Bonding’ pressure refer to the force that is transferred from jig surface directly to the bonding area.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
