Additional Info
- UV curing dosage: above 5000 mJ per square centimeter (measured on OCA surface, UVA 320-380nm)
- 75µm easy release PET liner outside of the roll

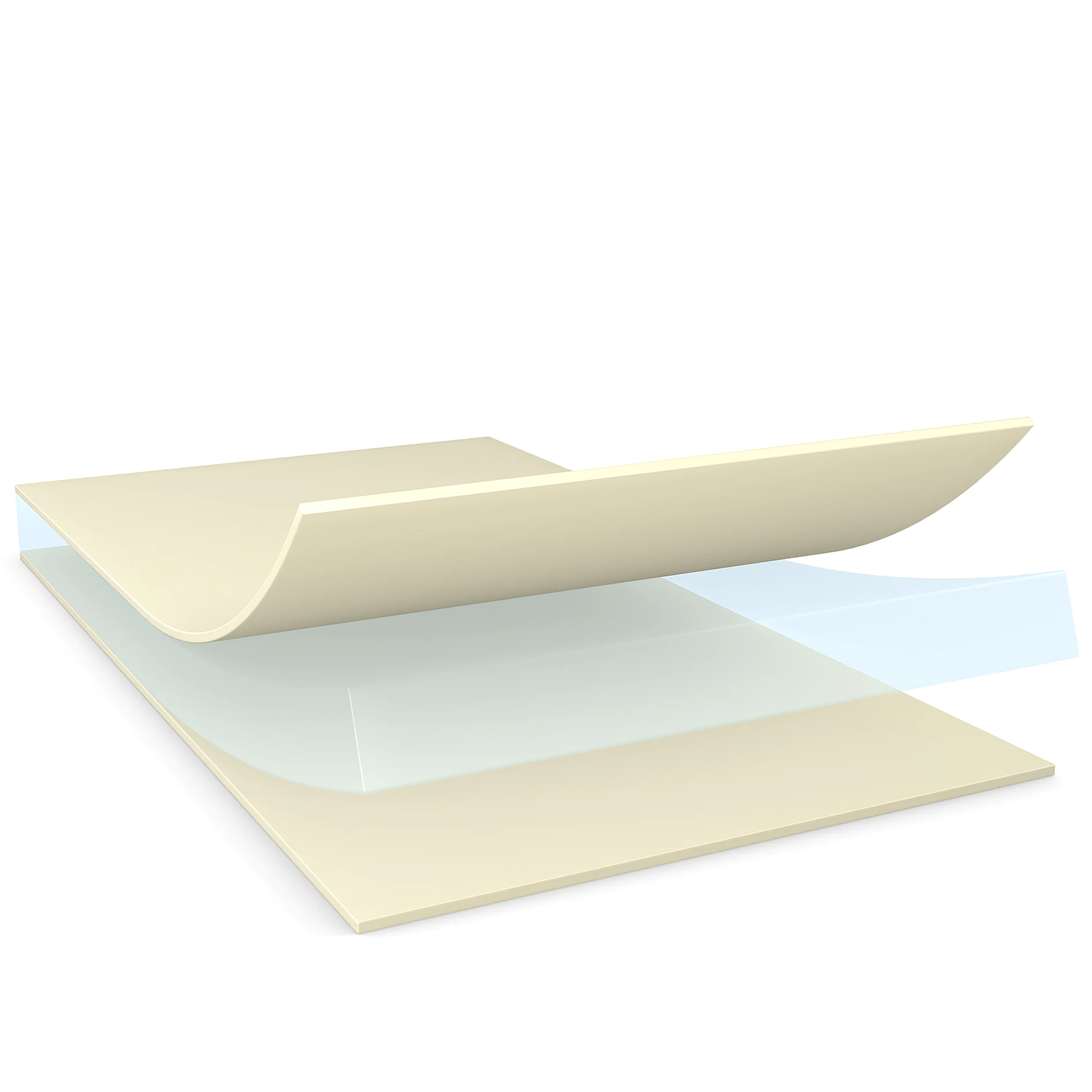

tesa® 69612 Optically Clear Adhesive
300µm UV-curable optically clear adhesive tape
Product description
tesa® 69612 is a highly transparent UV-curable transfer tape produced under controlled clean room conditions and designed for optically clear lamination of rigid and flexible substrates.
Special features:
- Good gap filling performance
- Excellent suppression of delay bubbles even in harsh environments
- Excellent whitening resistance
- High bonding strength
제품 세부 사항 및 사양
Application Fields
- Optically clear lamination of two rigid substrates especially in various types of capacitive touch panel designs
- Bonding of displays to cover lens
- Other optical lamination with high tolerance coverage demand
Product Construction
| 기재 소재 | 없음 |
|---|---|
| 이형력 낮은 이형지 두께 | 75 µm |
| 이형력 높은 이형지 두께 | 125 µm |
| 이형지 종류 | PET필름 |
| 점착제 종류 | 순수 아크릴 |
| 총두께 | 300 µm |
| 컬러 | 투명성 |
Product Construction
| 기재 소재 | 없음 |
|---|---|
| 이형력 낮은 이형지 두께 | 75 µm |
| 이형력 높은 이형지 두께 | 125 µm |
| 이형지 종류 | PET필름 |
| 점착제 종류 | 순수 아크릴 |
| 총두께 | 300 µm |
| 컬러 | 투명성 |
Properties / Performance Values
| 노후성 (UV) | very good |
|---|---|
| Tack | good |
| 헤이즈 < | 0.4 % |
| 투과성(380 - 780nm) > | 99 % |
| 내습성 | good |
| 굴절율 | 1.48 |
Properties / Performance Values
| 노후성 (UV) | very good |
|---|---|
| Tack | good |
| 헤이즈 < | 0.4 % |
| 투과성(380 - 780nm) > | 99 % |
| 내습성 | good |
| 굴절율 | 1.48 |
Adhesion to Values
| Glass점착력 (UV 경화 후) | 15.9 N/cm |
|---|---|
| PC점착력 (UV 경화 후) | 13.1 N/cm |
| PET점착력 (UV 경화 후) | 10.4 N/cm |
| PMMA점착력 (UV 경화 후) | 13.7 N/cm |
Adhesion to Values
| Glass점착력 (UV 경화 후) | 15.9 N/cm |
|---|---|
| PC점착력 (UV 경화 후) | 13.1 N/cm |
| PET점착력 (UV 경화 후) | 10.4 N/cm |
| PMMA점착력 (UV 경화 후) | 13.7 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.
