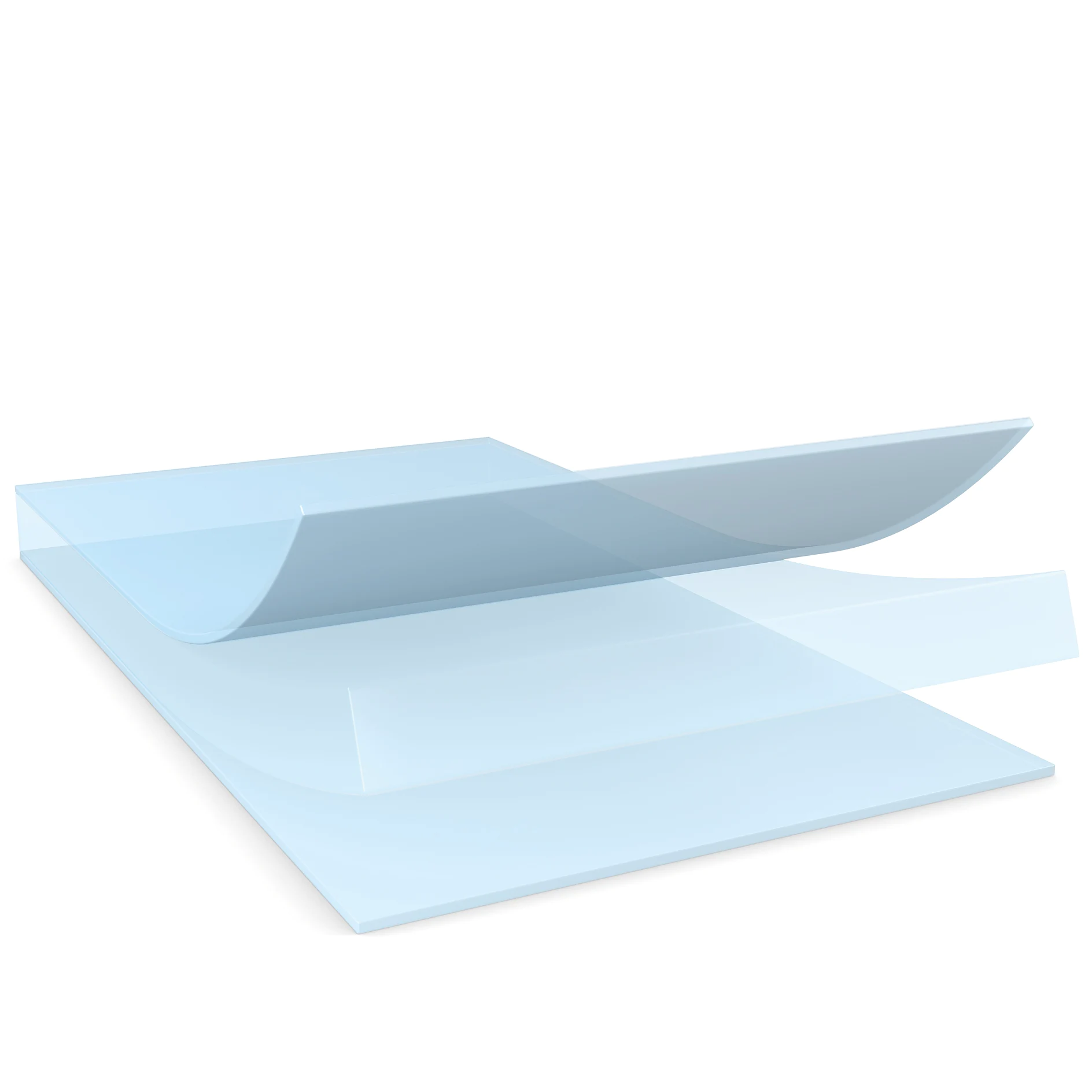

tesa® 88710 Optically Clear Adhesive
250μm Optically Clear Adhesive for Automotive Applications
제품 기능
- PSA type
- High transmission and low haze
- Smooth and easy liner removal
Product description
887xx Automotive OCA solution provides a wide thickness range together with outstanding ink step coverage feature and reliability performance.
It is a proven solution, well performed at glass/polarizer lamination stack-ups. And it would be suitable for a large and curved display lamination.
제품 세부 사항 및 사양
제품 기능
- PSA type
- High transmission and low haze
- Smooth and easy liner removal
- High bonding strength
- Balanced gap filling and converting performance
- Excellent temperature, humidity and UV resistance
Application Fields
- Automotive Display Lamination
- Curved Glass
- Other optical integration
Product Construction
기재 소재 | 없음 |
---|---|
이형력 낮은 이형지 두께 | 75 µm |
이형력 높은 이형지 두께 | 100 µm |
이형지 색깔 | 투명성 |
이형지 색깔 - 바깥쪽 | 투명성 |
이형지 색깔 - 안쪽 | 투명성 |
이형지 종류 | PET |
점착제 종류 | 아크릴 |
컬러 | 투명성 |
테이프 두께 | 250 µm |
Product Construction
기재 소재 | 없음 |
---|---|
이형력 낮은 이형지 두께 | 75 µm |
이형력 높은 이형지 두께 | 100 µm |
이형지 색깔 | 투명성 |
이형지 색깔 - 바깥쪽 | 투명성 |
이형지 색깔 - 안쪽 | 투명성 |
이형지 종류 | PET |
점착제 종류 | 아크릴 |
컬러 | 투명성 |
테이프 두께 | 250 µm |
Properties / Performance Values
노후성 (UV) | good |
---|---|
장기간 온도저항 | 105 °C |
Tack | good |
헤이즈 < | 0.001 % |
이형지 제거 - 안쪽 | 팽팽함 |
투과성(380 - 780nm) > | 99.5 % |
내습성 | very good |
이형지 제거 - 바깥쪽 | 간단함 |
Properties / Performance Values
노후성 (UV) | good |
---|---|
장기간 온도저항 | 105 °C |
Tack | good |
헤이즈 < | 0.001 % |
이형지 제거 - 안쪽 | 팽팽함 |
투과성(380 - 780nm) > | 99.5 % |
내습성 | very good |
이형지 제거 - 바깥쪽 | 간단함 |
Adhesion to Values
유리점착력 (초기) | 8.5 N/cm |
---|
Adhesion to Values
유리점착력 (초기) | 8.5 N/cm |
---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
