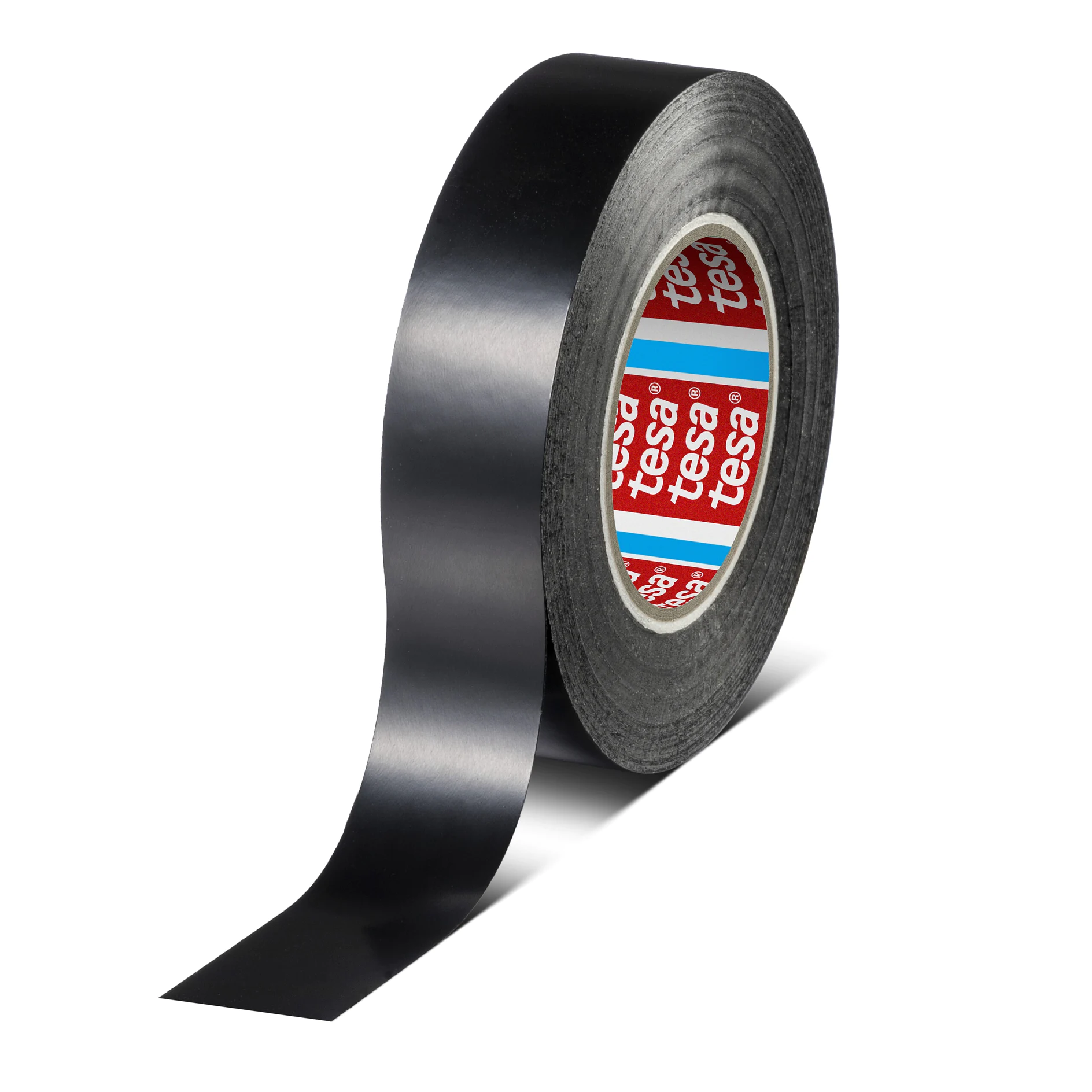

tesa® 4182 PV2

PVC 필름 테이프


Product description

tesa® 4182 PV2 는 차량 조수석 컴파트먼트의 와이어 하니스 부품을 기본적으로 묶기 위한 아크릴 점착제가 있는 PVC 필름 테이프입니다. 지속적인 풀림력, 유연한 뒷면 및 손으로 찢어짐성은 부드럽고 효율적인 적용을 보장합니다.

tesa® 4182 PV2는 메뉴얼 어플리케이션에 적합합니다.

주요 사양:

  • Temperature resistance of up to 105°C for 3000h
  • Flag-resistant
  • Hand-tearable
  • Resistant to environmental influences
  • Constant unwind force – optimized for manual application
  • Ageing-resistant
  • Flame-retardant
  • Flexible and smooth


제품 세부 사항 및 사양

Application Fields

tesa® 4182 PV2 는 특히 자동차 조수석 컴파트먼트에서 와이어 하니스 부품의 효율적인 번들을 위해 개발되었습니다.
기재 소재 PVC필름
점착제 종류 아크릴
총두께 104 µm
연신률 250 %
인장강도 25 N/cm
소음 댐핑 (LV312) Class A
풀림성 (roll width ≤ 9mm) 7.5 N/roll (30 m/min)
내마모성 (5mm mandrel, LV312) Class A
최저 내열도 -25 °C
최대 내열도 105 °C
풀림성 (roll width > 9mm) 7.5 N/roll (30 m/min)
내마모성 (10mm mandrel, LV312) Class A
Steel점착력 1.8 N/cm
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 33 m
  • Most combinations of width and length are possible
  • Further dimensions are available upon request

  • Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.

연락주세요!

연락처

메시지 보내주셔서 감사합니다.

최대한 빨리 연락드리겠습니다.

Something went wrong. Please try again later.

제품 비교

제품명 tesa® 4182 PV2 tesa® 62309 tesa® 62250 tesa® 51623 tesa® 51608 PV0 tesa® 51616 ID tesa® Supersleeve 51036 PV6 tesa® 51025 PV10 tesa® Spiralsleeve 51026 PV5 tesa® Sleeve 51026 PV9 tesa® 51616
총두께
104 µm
95
72
250 µm
280 µm
650 µm
530 µm
150 µm
530 µm
220 µm
650 µm
점착제 종류
아크릴
아크릴
수용성 아크릴
고무 기반
고무 기반
고무 기반
개선된 아크릴
고무 기반
아크릴
아크릴
고무 기반
기재 소재
PVC필름
PE 필름
BOPP
PET / 부직포
PET 양모
PET 양모
PET천
PET천
PET천
PET천
PET 양모
최대 내열도
105 °C
125 °C
125 °C
105 °C
105 °C
105 °C
150 °C
125 °C
150 °C
150 °C
105 °C
Steel점착력
1.8 N/cm
2 N/cm
2.5 N/cm
2 N/cm
3 N/cm
3 N/cm
5 N/cm
6.5 N/cm
5.5 N/cm
5.5 N/cm
3 N/cm
최저 내열도
-25 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
