Product information

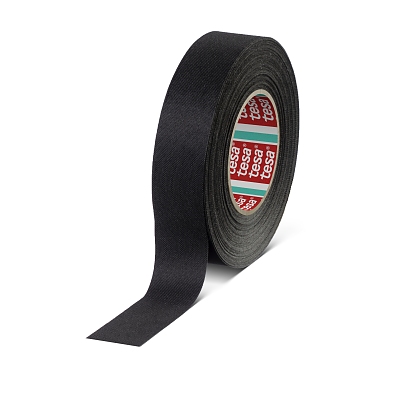

tesa® 51025 PV10

손으로 찢을 수 있는 PET 클로스 테이프



Product description

tesa® 51025 PV10은 무용제 고무 점착제가 들어간, PET 직물 와이어를 사용하는 테이프입니다.

주요 특성:
  • 내열성: 125°C/3000h
  • 무용제 점착제
  • 손으로 찢을 수 있음

색상: 검정

Main applications

tesa® 51025 PV10은 최대 125°C까지의 온도 등급에서 래핑 용도로 설계된 제품입니다.
tesa-51025-PV10-wire-harnessing-pr

tesa-51025-PV10-wire-harnessing-pr

Technical properties

연신률

25 %

점착제 종류

고무 기반

내마모성 (5mm mandrel)

Class A (acc. to LV312)

최저 내열도

-40 °C

내열성 (3000h)

125 °C

인장강도

80 N/cm

풀림성 (roll width ≤ 9mm)

8 N/roll (30 m/min)

풀림성 (roll width > 9mm)

8 N/roll (30 m/min)

총두께

160 µm

기재 소재

PET천

Steel점착력

6.5 N/cm

합성품으로서의 난연특성

Class B (acc. to LV312)

소음 댐핑 (데시벨)

Class A (acc. to LV312)

내마모성 (10mm mandrel)

Class B (acc. to LV312)

절연파괴전압

6300 volt

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
