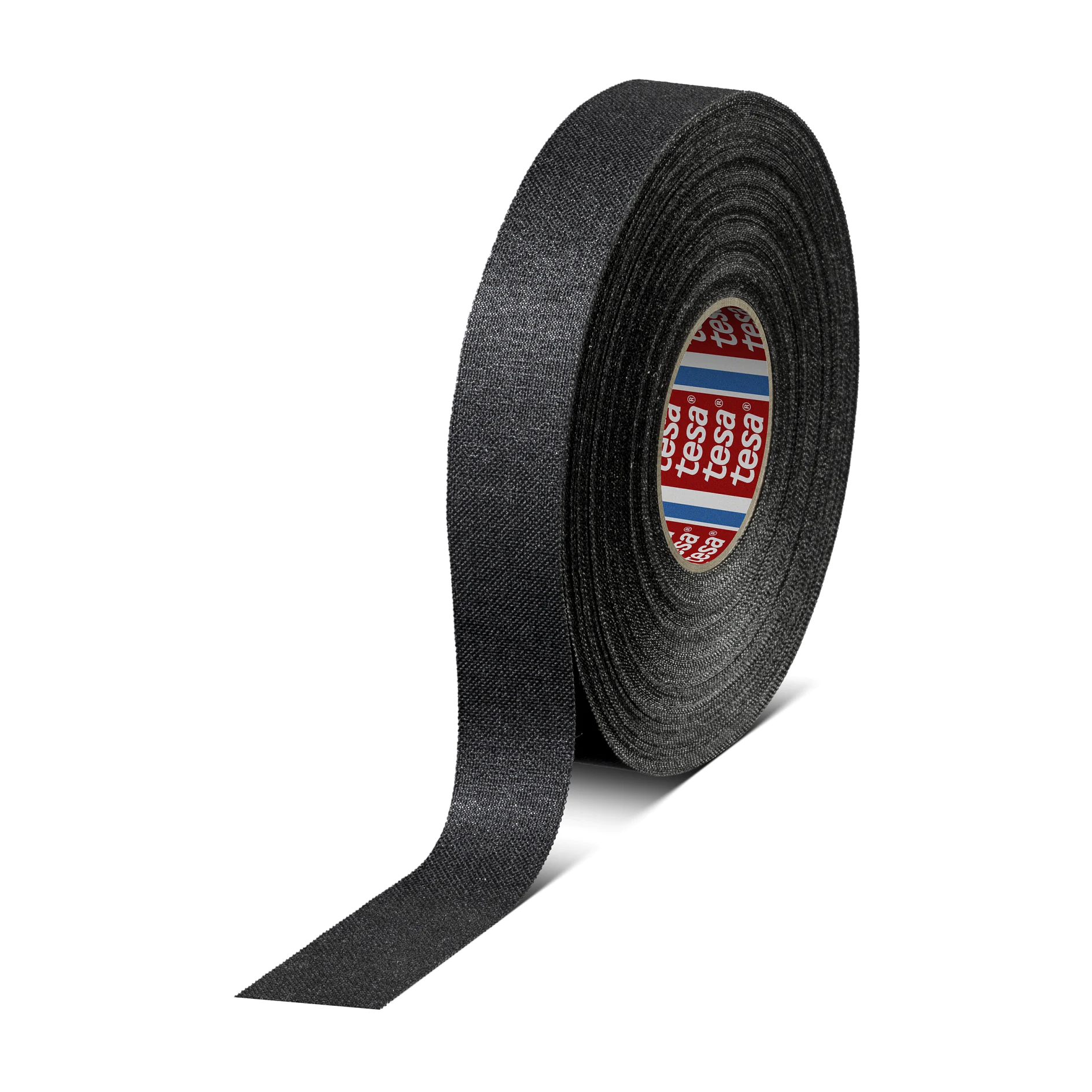

tesa® 51006
내마모성 PET 클로스 테이프
Product description
tesa® 51006은 고무 점착제로 구성된 PET 클로스와이어하네스 테이프입니다.
주요 특성:
- 우수한 내열성 150°C/3000h
- 내마모성
- 강력한 점착력
색상: 검은색
제품 세부 사항 및 사양
Application Fields
tesa® 51006은 엔진실 용으로 설계된 제품으로, 마모를 방지해줍니다.
Product Construction
기재 소재 | PET천 |
---|---|
점착제 종류 | 고무 기반 |
총두께 | 320 µm |
Product Construction
기재 소재 | PET천 |
---|---|
점착제 종류 | 고무 기반 |
총두께 | 320 µm |
Properties / Performance Values
연신률 | 22 % |
---|---|
인장강도 | 175 N/cm |
풀림성 (roll width > 9mm) | 10 N/roll (30 m/min) |
최저 내열도 | -40 °C |
내마모성 (10mm mandrel, LV312) | Class C |
최대 내열도 | 150 °C |
풀림성 (roll width ≤ 9mm) | 10 N/roll (30 m/min) |
내마모성 (5mm mandrel, LV312) | Class B |
소음 댐핑 (LV312) | Class A |
Properties / Performance Values
연신률 | 22 % |
---|---|
인장강도 | 175 N/cm |
풀림성 (roll width > 9mm) | 10 N/roll (30 m/min) |
최저 내열도 | -40 °C |
내마모성 (10mm mandrel, LV312) | Class C |
최대 내열도 | 150 °C |
풀림성 (roll width ≤ 9mm) | 10 N/roll (30 m/min) |
내마모성 (5mm mandrel, LV312) | Class B |
소음 댐핑 (LV312) | Class A |
Adhesion to Values
Steel점착력 | 4.5 N/cm |
---|
Adhesion to Values
Steel점착력 | 4.5 N/cm |
---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.
