Product Construction
| Type of adhesive | type: nitrile rubber / phenolic resin |
| Type of liner | type: glassine |
| 기재 소재 | 없음 |
| 총두께 | 200 µm |
| 컬러 | amber |
8401
HAF 열압착 필름 테이프
제품 기능
- 경화후 tesa HAF® 8401 제품 특성: 매우 우수한 접착력. 고내온성. 탹월한 내화학성.
- 접착력은 유연하고 신축성있게 유지됨.
- tesa HAF® 8401은 상온에서 끈적이지 않습니다.
Product description

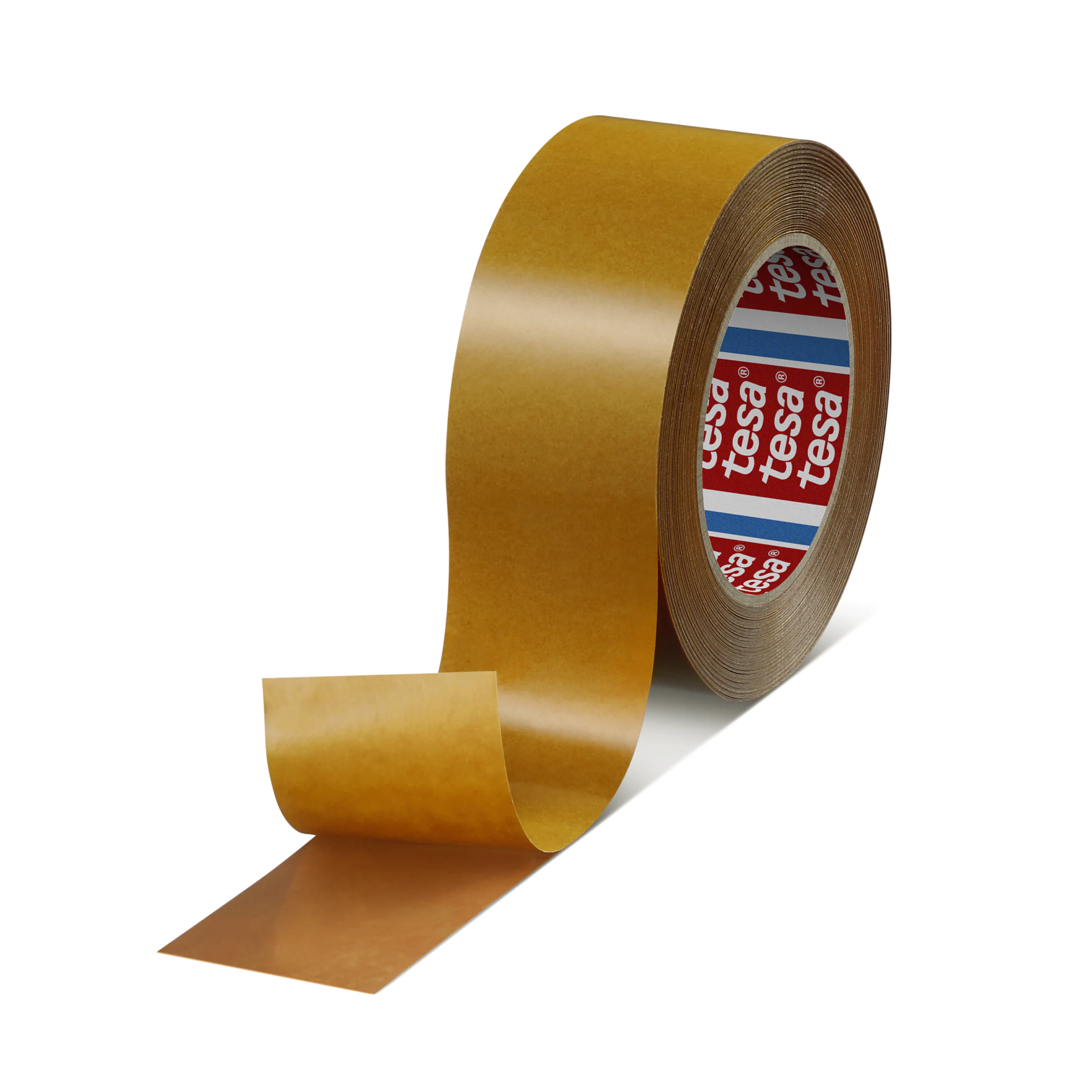

tesa HAF® 8401은 페놀 수지 및 니트릴 고무에 기반한 열압착 필름입니다. 이 호박색 양면 테이프는 백킹이 없습니다. 강력한 페이퍼 라이너로 보호되며 쉽게 잘리고 다이컷될 수 있습니다.
HAF는 일정 시간 동안 가해진 열과 압력에 의해 활성화된다..
제품 세부 사항 및 사양
제품 기능
- 경화후 tesa HAF® 8401 제품 특성: 매우 우수한 접착력. 고내온성. 탹월한 내화학성.
- 접착력은 유연하고 신축성있게 유지됨.
- tesa HAF® 8401은 상온에서 끈적이지 않습니다.
Application Fields
It is suitable for bonding of all thermal resistant materials such as metal, glass, plastic, wood and textiles.
- High-strength splicing (overlap splice)
- Structural bonding
- Magnet bonding in electric motors
- Friction liners for clutches
Product Construction
| Type of adhesive | type: nitrile rubber / phenolic resin |
| Type of liner | type: glassine |
| 기재 소재 | 없음 |
| 총두께 | 200 µm |
| 컬러 | amber |
Properties / Performance Values
| 점착력 (동적 전단) | 12 N/mm² |
Properties / Performance Values
| 점착력 (동적 전단) | 12 N/mm² |
Additional Info
Technical recommendations
tesa HAF® 8401 is not self adhesive. It is activated by heat and pressure over a certain interval. The following values are recommendations for machine parameters to start with. Please note that optimum parameters strongly depend on the type of machine, particular materials as well as customer requirements.
1.Pre-lamination: tesa HAF® 8401 is laminated before curing. For this process we recommend a temperature between 120°C and 140°C.
2.Bonding: The bonding conditions temperature, pressure and time depend on the application. Following parameters can be regarded as a guideline:
Splicing application:
tesa HAF® 8401 is not self adhesive. It is activated by heat and pressure over a certain interval. The following values are recommendations for machine parameters to start with. Please note that optimum parameters strongly depend on the type of machine, particular materials as well as customer requirements.
1.Pre-lamination: tesa HAF® 8401 is laminated before curing. For this process we recommend a temperature between 120°C and 140°C.
2.Bonding: The bonding conditions temperature, pressure and time depend on the application. Following parameters can be regarded as a guideline:
Splicing application:
- Temperature: 120-220 °C
- Pressure: >2bar
- Time: 15 – 90 s.
- Temperature: 180 – 230 °C
- Pressure: > 8 bar
- Time: 3 min – 30 min
- Temperature: 140 – 180 °C
- Pressure > 6-10 bar
- Time: 2 min - 5 min
- Temperature: 180 – 220 °C
- Pressure: > 10-15 bar
- Time: > 3 - 30 min
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
