tesa® 75710
100μm double-sided black acrylic foam tape
제품 기능
- Thickness: 100µm
- High shock performance
- High thermal shock resistance
Product description

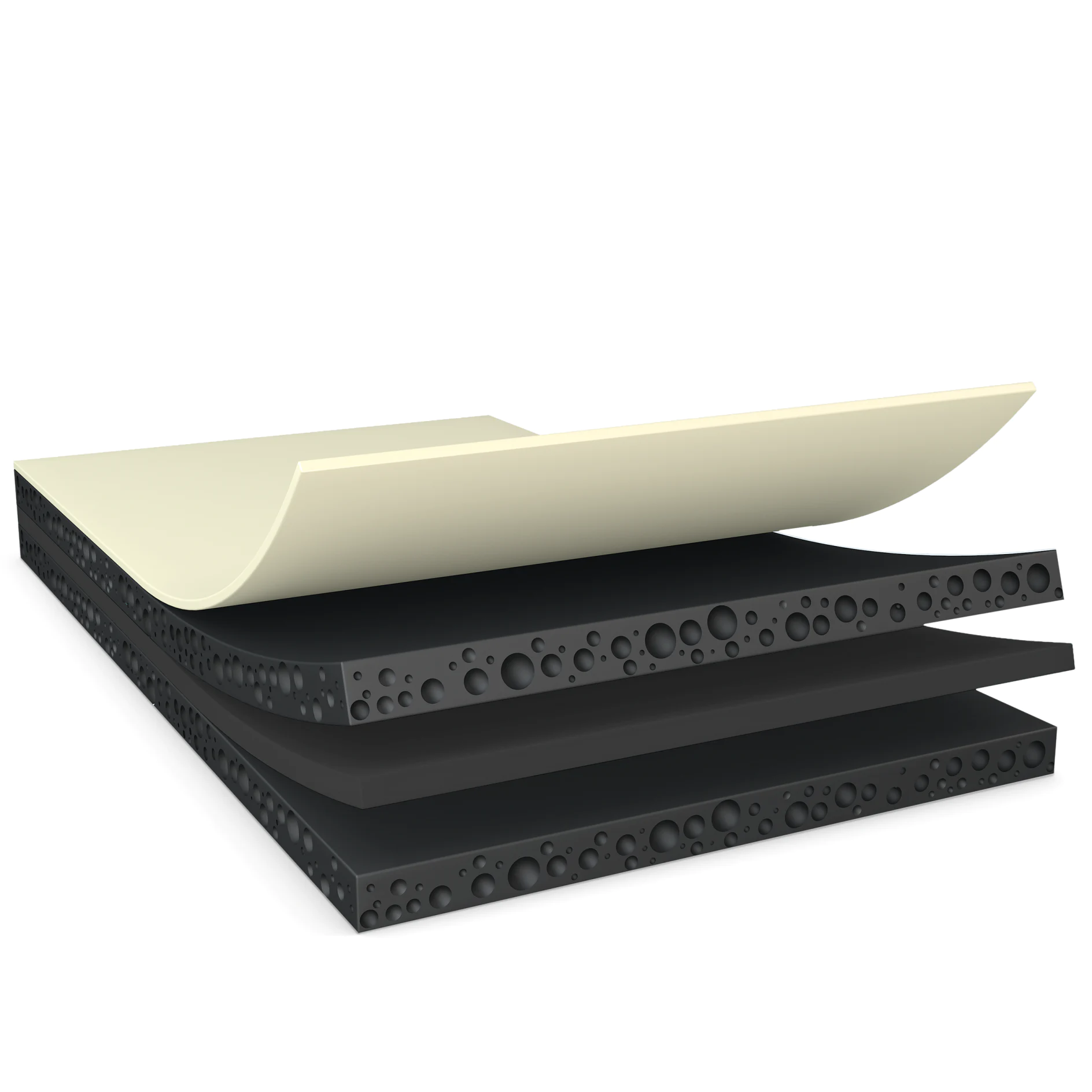

tesa® 75710 is a double-sided black tape with a PET backing. The tape is equipped with a novel foamed shock absorbing and anti-repulsion adhesive.
제품 세부 사항 및 사양
제품 기능
- Thickness: 100µm
- High shock performance
- High thermal shock resistance
- High bonding strength
- Anti-repulsion properties to prevent lifting
- Very good reworkability and die-cut ability
- Waterproofing
Application Fields
- Demanding mounting applications with high requirements for impact resistance
- Mounting of waterproof designs
- Mounting of components
Product Construction
기재 소재 | PETP |
---|---|
이형지 두께 | 50 µm |
이형지 무게 | 72 g/m² |
이형지 색깔 | 투명성 |
이형지 종류 | PET |
점착제 종류 | 변성 아크릴 |
총두께 | 100 µm |
컬러 | 검정 |
Product Construction
기재 소재 | PETP |
---|---|
이형지 두께 | 50 µm |
이형지 무게 | 72 g/m² |
이형지 색깔 | 투명성 |
이형지 종류 | PET |
점착제 종류 | 변성 아크릴 |
총두께 | 100 µm |
컬러 | 검정 |
Properties / Performance Values
연신률 | 100 % |
---|---|
장기간 온도저항 | 80 °C |
정적 전단응력 (23°C) | good |
단기간 온도저항 | 130 °C |
정적 전단응력 (40°C) | good |
노후성 (UV) | very good |
Properties / Performance Values
연신률 | 100 % |
---|---|
장기간 온도저항 | 80 °C |
정적 전단응력 (23°C) | good |
단기간 온도저항 | 130 °C |
정적 전단응력 (40°C) | good |
노후성 (UV) | very good |
Adhesion to Values
유리점착력 (초기) | 7.5 N/cm |
---|---|
유리점착력 (3일 경과) | 9.5 N/cm |
PC점착력 (초기) | 8 N/cm |
PC점착력 (3일 경과) | 9 N/cm |
PE점착력 (초기) | 5 N/cm |
PE점착력 (3일 경과) | 6 N/cm |
Steel점착력 (초기) | 10 N/cm |
Steel점착력 (3일 경과) | 11 N/cm |
Adhesion to Values
유리점착력 (초기) | 7.5 N/cm |
---|---|
유리점착력 (3일 경과) | 9.5 N/cm |
PC점착력 (초기) | 8 N/cm |
PC점착력 (3일 경과) | 9 N/cm |
PE점착력 (초기) | 5 N/cm |
PE점착력 (3일 경과) | 6 N/cm |
Steel점착력 (초기) | 10 N/cm |
Steel점착력 (3일 경과) | 11 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.
