tesa® 75635
350μm double-sided black acrylic foam tape
제품 기능
- Thickness: 350μm
- Very high shock performance
- Very high thermal and cold shock resistance
Product description

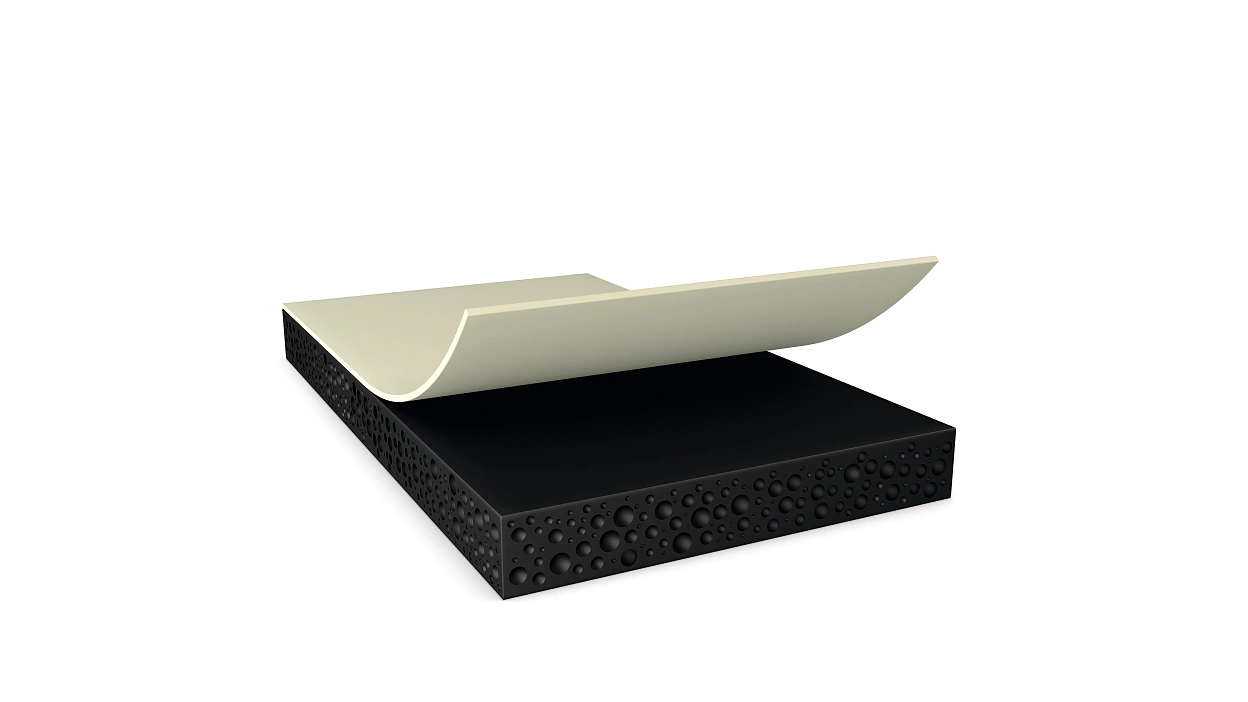

tesa® 75635 is a double-sided black tape consisting of a high shock absorbing black acrylic foam.
제품 세부 사항 및 사양
제품 기능
- Thickness: 350μm
- Very high shock performance
- Very high thermal and cold shock resistance
- Very high bonding strength for wide temperature range
- Good anti-repulsion properties to prevent lifting
- Waterproofing
- Light blocking
Application Fields
- Demanding touch panel, lens or screen mounting applications with high requirements for impact resistance
- Mounting of Displays and flexible OLED Displays
- Mounting of ultra slim bezel or curved designs
- Mounting of waterproof designs
Product Construction
기재 소재 | 아크릴 |
---|---|
이형지 두께 | 75 µm |
이형지 무게 | 105 g/m² |
이형지 색깔 | 투명성 |
이형지 종류 | PET |
점착제 종류 | 변성 아크릴 |
총두께 | 350 µm |
컬러 | 검정 |
Product Construction
기재 소재 | 아크릴 |
---|---|
이형지 두께 | 75 µm |
이형지 무게 | 105 g/m² |
이형지 색깔 | 투명성 |
이형지 종류 | PET |
점착제 종류 | 변성 아크릴 |
총두께 | 350 µm |
컬러 | 검정 |
Properties / Performance Values
정적 전단응력 (40°C) | very good |
---|---|
투과성(380 - 780nm) < | 0.001 % |
노후성 (UV) | very good |
단기간 온도저항 | 180 °C |
장기간 온도저항 | 90 °C |
Properties / Performance Values
정적 전단응력 (40°C) | very good |
---|---|
투과성(380 - 780nm) < | 0.001 % |
노후성 (UV) | very good |
단기간 온도저항 | 180 °C |
장기간 온도저항 | 90 °C |
Adhesion to Values
알루미늄점착력 (초기) | 10 N/cm |
---|---|
알루미늄점착력 (3일 경과) | 16 N/cm |
유리점착력 (초기) | 17.5 N/cm |
유리점착력 (3일 경과) | 19 N/cm |
PC점착력 (초기) | 14.5 N/cm |
PC점착력 (3일 경과) | 34 N/cm |
Steel점착력 (초기) | 17 N/cm |
Steel점착력 (3일 경과) | 20 N/cm |
Adhesion to Values
알루미늄점착력 (초기) | 10 N/cm |
---|---|
알루미늄점착력 (3일 경과) | 16 N/cm |
유리점착력 (초기) | 17.5 N/cm |
유리점착력 (3일 경과) | 19 N/cm |
PC점착력 (초기) | 14.5 N/cm |
PC점착력 (3일 경과) | 34 N/cm |
Steel점착력 (초기) | 17 N/cm |
Steel점착력 (3일 경과) | 20 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.
