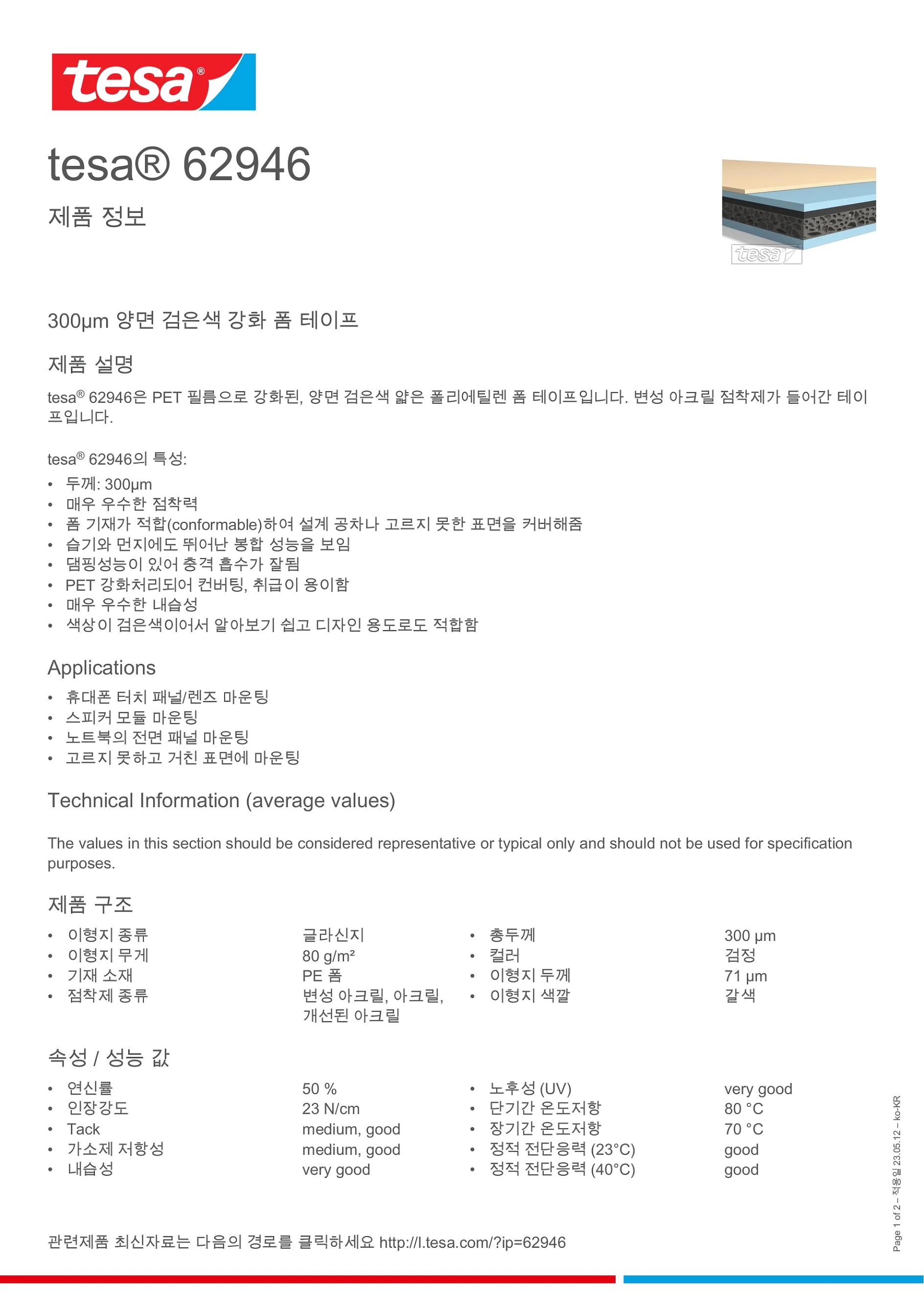

tesa® 62946
300µm 양면 검은색 강화 폼 테이프
Product description
tesa® 62946은 PET 필름으로 강화된, 양면 검은색 얇은 폴리에틸렌 폼 테이프입니다. 변성 아크릴 점착제가 들어간 테이프입니다.
tesa® 62946의 특성:
tesa® 62946의 특성:
- 두께: 300µm
- 매우 우수한 점착력
- 폼 기재가 적합(conformable)하여 설계 공차나 고르지 못한 표면을 커버해줌
- 습기와 먼지에도 뛰어난 봉합 성능을 보임
- 댐핑성능이 있어 충격 흡수가 잘됨
- PET 강화처리되어 컨버팅, 취급이 용이함
- 매우 우수한 내습성
- 색상이 검은색이어서 알아보기 쉽고 디자인 용도로도 적합함
Application Fields
- 휴대폰 터치 패널/렌즈 마운팅
- 스피커 모듈 마운팅
- 노트북의 전면 패널 마운팅
- 고르지 못하고 거친 표면에 마운팅

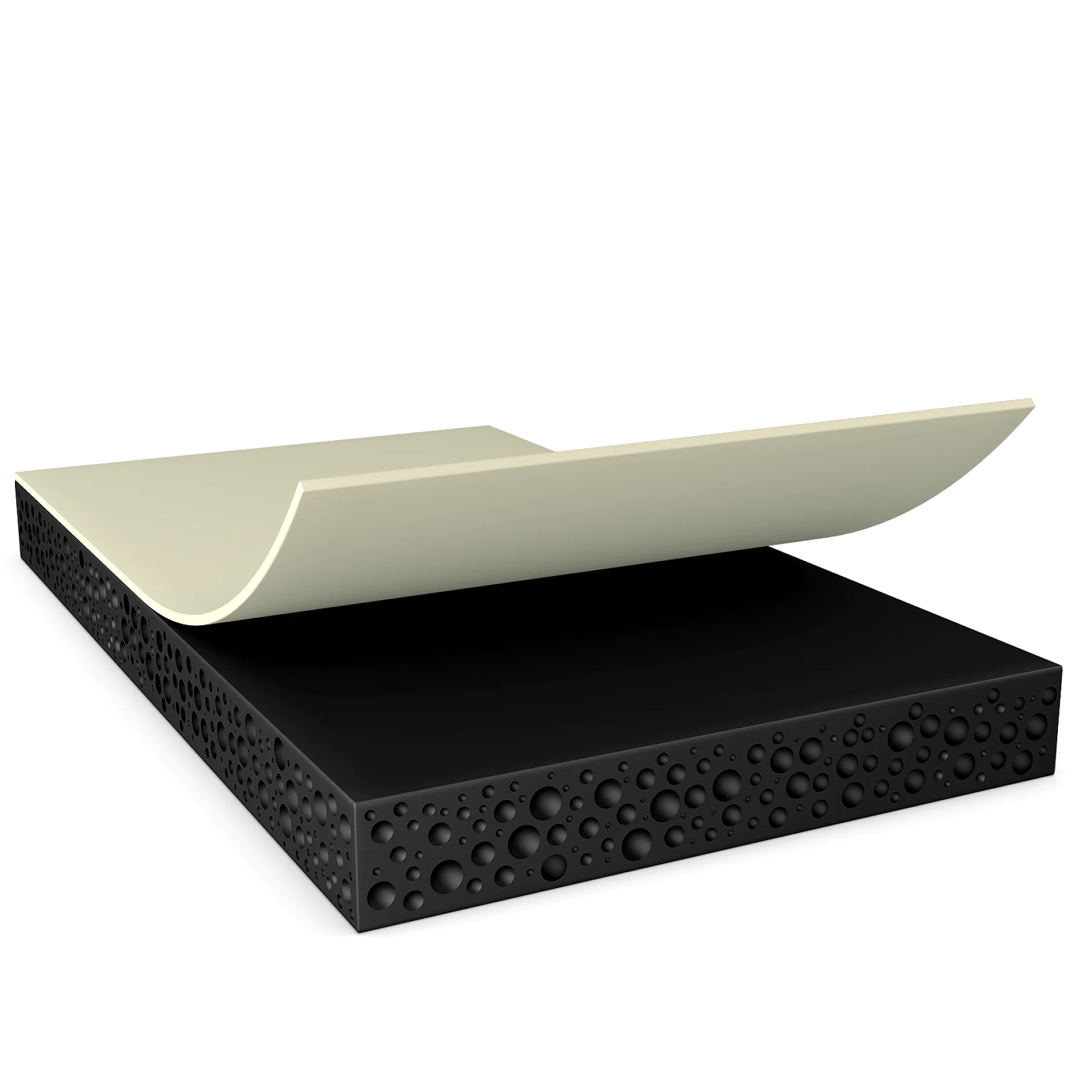

Product Construction
이형지 종류 | 글라신지 |
이형지 무게 | 80 g/m² |
기재 소재 | PE 폼 |
점착제 종류 | 변성 아크릴, 아크릴, 개선된 아크릴 |
총두께 | 300 µm |
컬러 | 검정 |
이형지 색깔 | 갈색 |
이형지 두께 | 71 µm |
Properties / Performance Values
연신률 | 50 % |
인장강도 | 23 N/cm |
내습성 | very good |
장기간 온도저항 | 70 °C |
가소제 저항성 | medium, good |
단기간 온도저항 | 80 °C |
정적 전단응력 (23°C) | good |
정적 전단응력 (40°C) | good |
노후성 (UV) | very good |
Tack | medium, good |
Adhesion to Values
ABS점착력 (초기) | 6.7 N/cm |
ABS점착력 (14일 경과) | 9.4 N/cm |
알루미늄점착력 (초기) | 5.3 N/cm |
알루미늄점착력 (14일 경과) | 10.9 N/cm |
유리점착력 (초기) | 7.3 N/cm |
유리점착력 (14일 경과) | 12 N/cm |
PC점착력 (초기) | 7.6 N/cm |
PC점착력 (14일 경과) | 12.2 N/cm |
PE점착력 (초기) | 2.3 N/cm |
PE점착력 (14일 경과) | 2.7 N/cm |
PET점착력 (초기) | 5.3 N/cm |
PET점착력 (14일 경과) | 7.7 N/cm |
PVC점착력 (초기) | 6.7 N/cm |
PVC점착력 (14일 경과) | 13.7 N/cm |
Steel점착력 (초기) | 6.4 N/cm |
Steel점착력 (14일 경과) | 13.2 N/cm |
Additional Info
Peel adhesion data based on 90° test method.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
