tesa® 60256
200µm double-sided grey electrically conductive woven tape
제품 기능
- Thickness: 200µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- Good adhesion level even at harsh environmental conditions
Product description
tesa® 60256 is a grey double-sided electrically conductive self adhesive tape. It consists of an electrically conductive woven backing and an electrically conductive acrylic adhesive.
제품 세부 사항 및 사양
제품 기능
- Thickness: 200µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- Good adhesion level even at harsh environmental conditions
- Tear resistant backing which provides very good dimensional stability

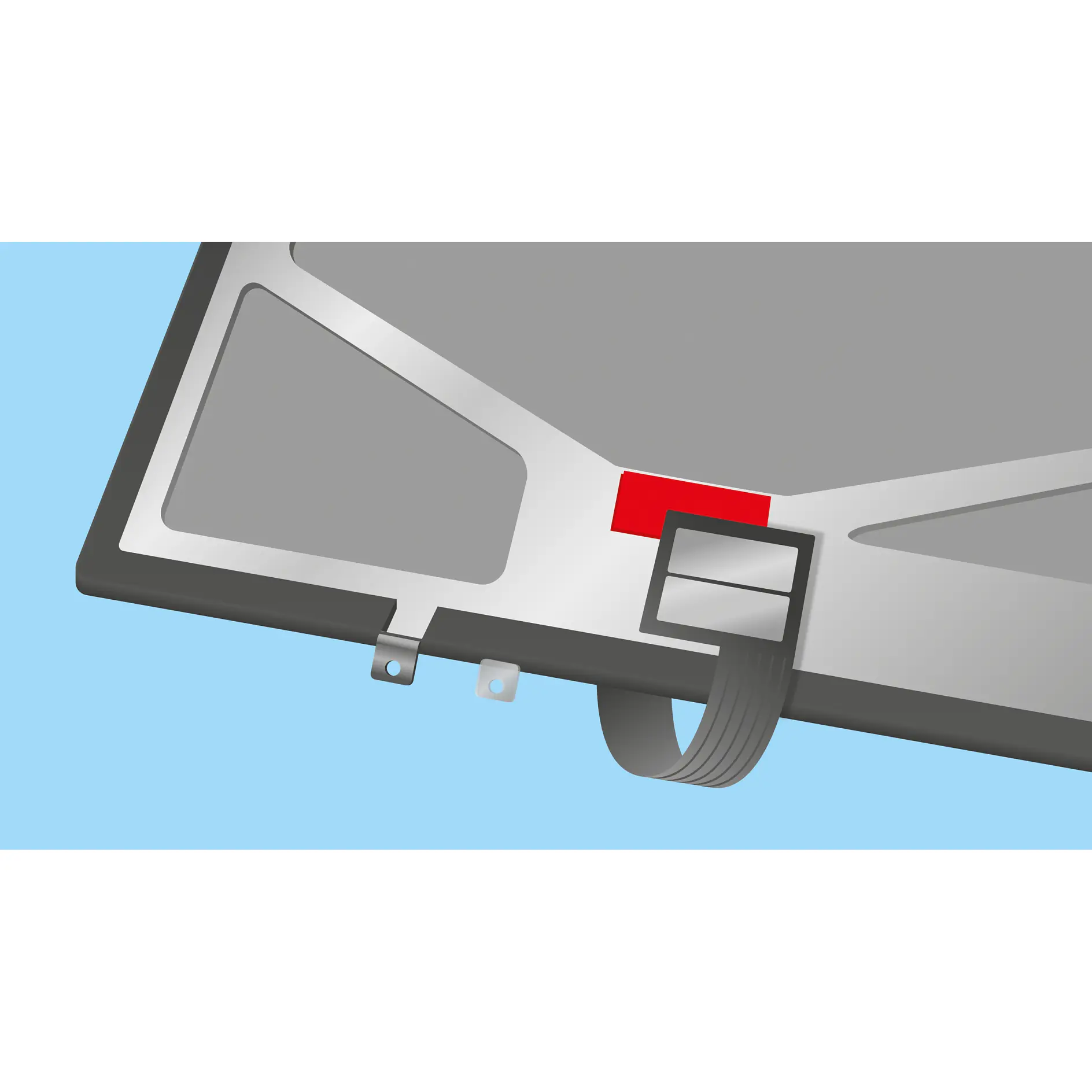

Application Fields
- EMC applications, such as grounding
- Electrostatic discharge applications
Product Construction
| 기재 소재 | 전도성 직물 |
|---|---|
| 이형지 두께 | 120 µm |
| 이형지 색깔 | 흰색/파란색 로고 |
| 이형지 종류 | PE 코팅된 직물 |
| 점착제 종류 | 전도성 아크릴 |
| 총두께 | 200 µm |
| 컬러 | 회색 |
Product Construction
| 기재 소재 | 전도성 직물 |
|---|---|
| 이형지 두께 | 120 µm |
| 이형지 색깔 | 흰색/파란색 로고 |
| 이형지 종류 | PE 코팅된 직물 |
| 점착제 종류 | 전도성 아크릴 |
| 총두께 | 200 µm |
| 컬러 | 회색 |
Properties / Performance Values
| 정적 전단응력 (40°C) | low |
|---|---|
| 정적 전단응력 (23°C) | medium |
| 단기간 온도저항 | 160 °C |
| 이형지 제거 | 간단함 |
| z-축 방향 접촉저항 (초기) | 0.05 Ohm / square inch |
| 표면 저항 x-y-축 방향 (점착제) | 0.2 Ohm / square |
Properties / Performance Values
| 정적 전단응력 (40°C) | low |
|---|---|
| 정적 전단응력 (23°C) | medium |
| 단기간 온도저항 | 160 °C |
| 이형지 제거 | 간단함 |
| z-축 방향 접촉저항 (초기) | 0.05 Ohm / square inch |
| 표면 저항 x-y-축 방향 (점착제) | 0.2 Ohm / square |
Adhesion to Values
| Steel점착력 (14일 경과) | 10.6 N/cm |
|---|
Adhesion to Values
| Steel점착력 (14일 경과) | 10.6 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
