- 50µm tight release liner (outside of the roll)
- 23µm easy release liner
tesa® 60381
50µm double sided gray electrically conductive woven tape
제품 기능
- High bonding performance with very high peel adhesion level
- Excellent anti-repulsion performance
- Good electrical conductivity in XYZ-direction even at high temperatures and humidity
Product description
tesa® 60381 is a gray double sided electrically conductive self-adhesive tape. It consists of an electrically conductive woven backing and an electrically conductive acrylic adhesive.
제품 세부 사항 및 사양
제품 기능
- High bonding performance with very high peel adhesion level
- Excellent anti-repulsion performance
- Good electrical conductivity in XYZ-direction even at high temperatures and humidity
- Good tear resistance
Application Fields
- EMC applications
- FPC grounding
- Antenna grounding
- Electrostatic discharge applications

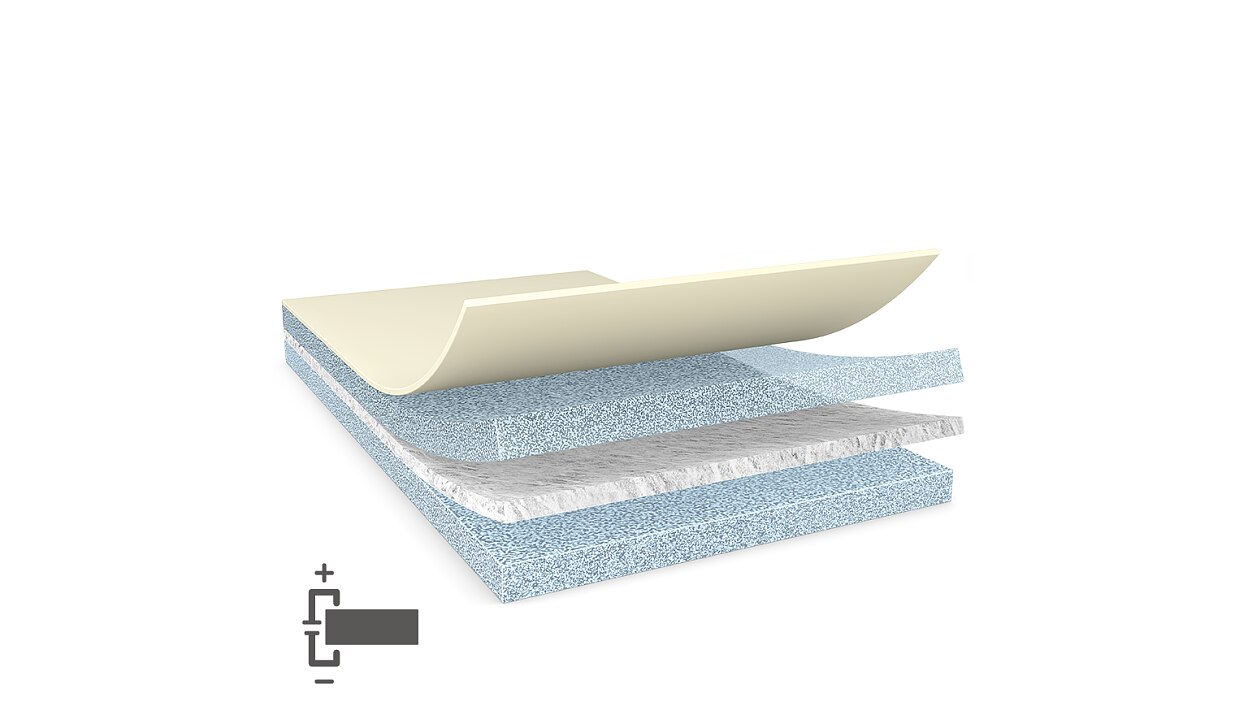

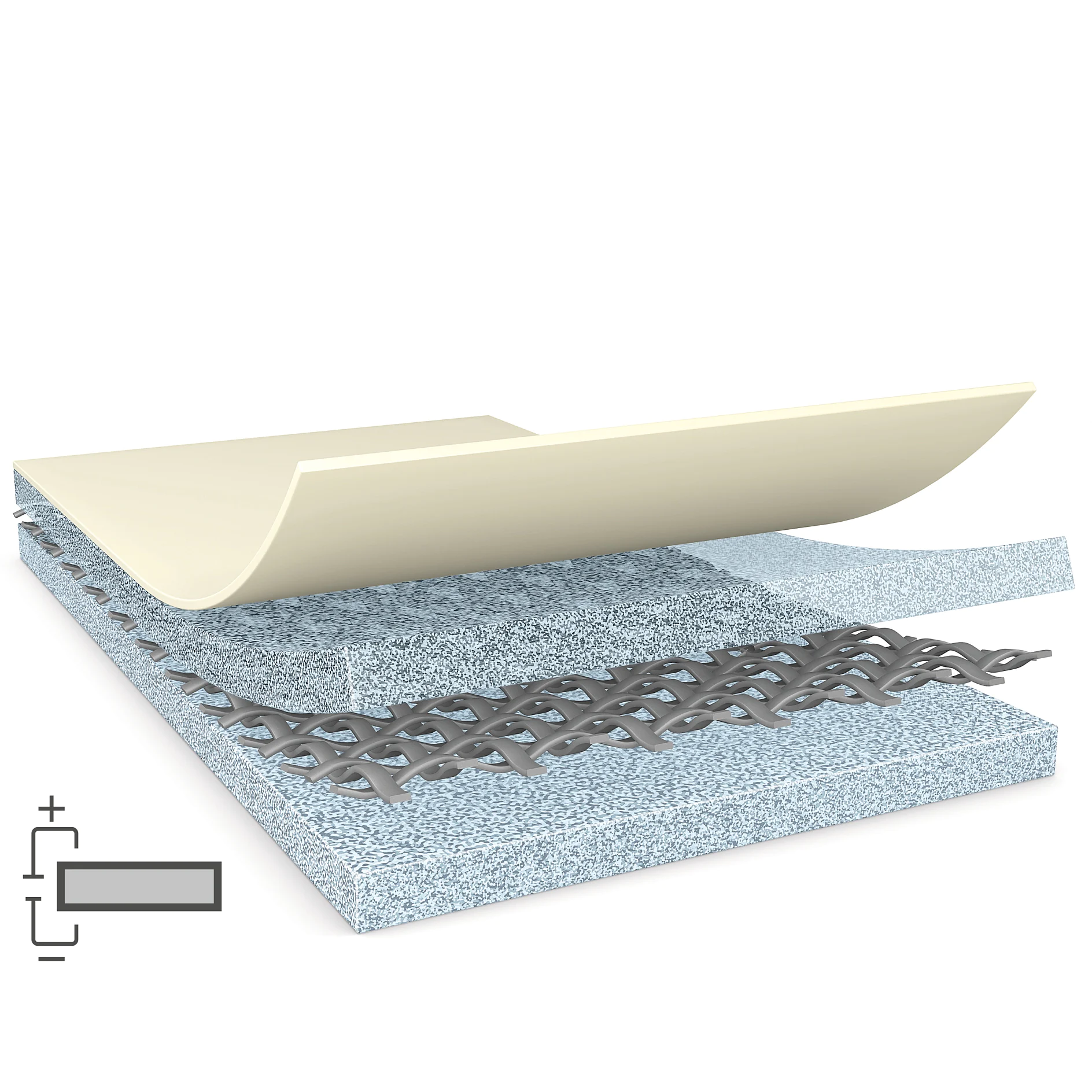

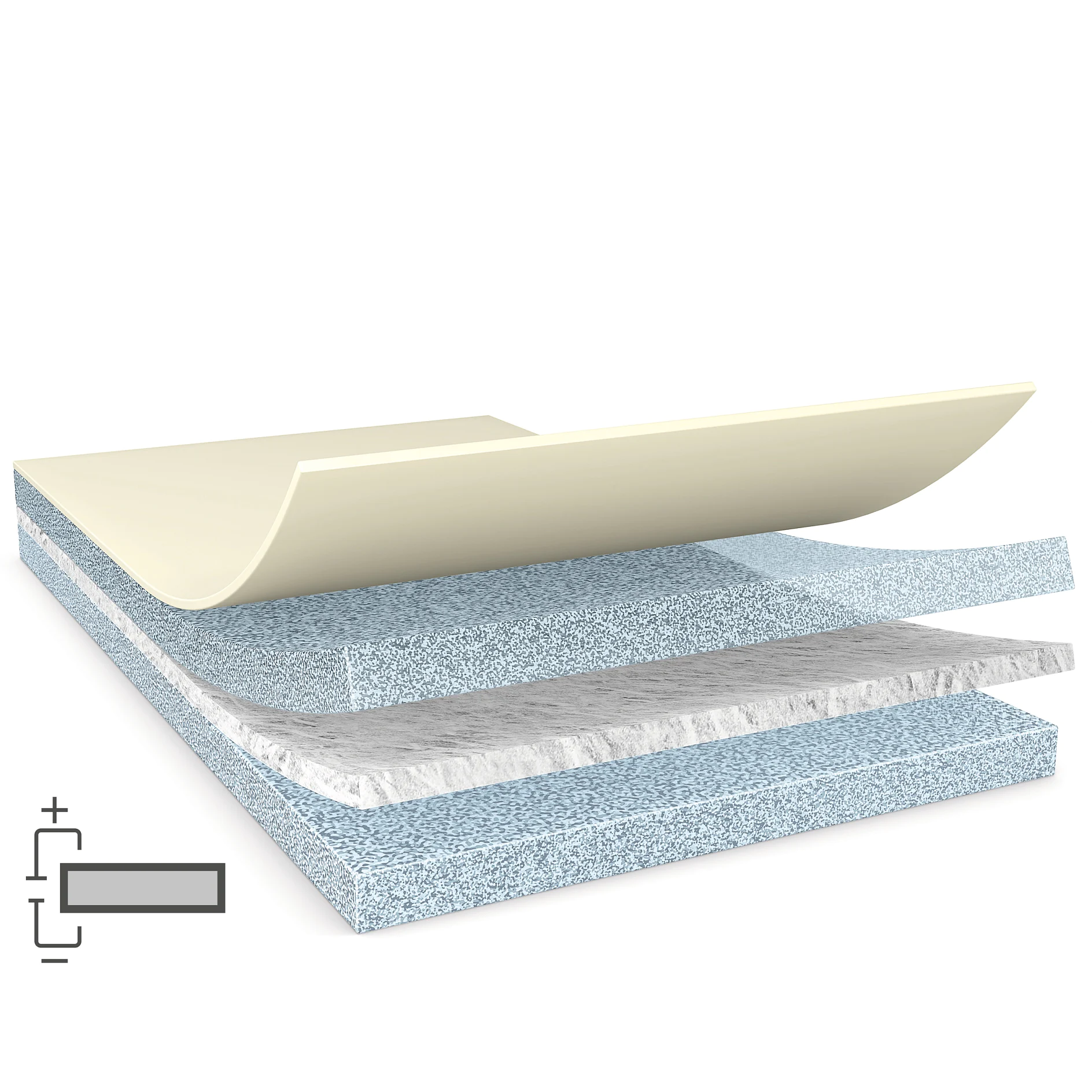

Product Construction
| 기재 소재 | 전도성 직물 |
|---|---|
| 이형지 두께 | 23 µm |
| 이형지 색깔 | 투명성 |
| 이형지 종류 | PET |
| 점착제 종류 | 전도성 아크릴 |
| 총두께 | 50 µm |
| 컬러 | 회색 |
Properties / Performance Values
| 정적 전단응력 (40°C) | very good |
|---|---|
| z-축 방향 접촉저항 (초기) | 0.06 Ohm / square inch |
| 단기간 온도저항 | 180 °C |
| 이형지 제거 | 간단함 |
| 표면 저항 x-y-축 방향 | 0.3 Ohm / square |
Adhesion to Values
| Steel점착력 (14일 경과) | 10 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
