tesa® 60249
700µm single sided grey electrically conductive foam tape
제품 기능
- Thickness: 700µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- Very good shock absorbing and cushioning properties
Product description
tesa® 60249 is a grey single sided electrically conductive self adhesive foam tape. It consist of a perforated foam with electrically conductive coating and an electrically conductive adhesive.
제품 세부 사항 및 사양
제품 기능
- Thickness: 700µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- Very good shock absorbing and cushioning properties
- High stability of the foam to avoid flaking of particles
- High adhesion level even at harsh environmental conditions
Application Fields
- EMI shielding and grounding applications
- Electrostatic discharge applications

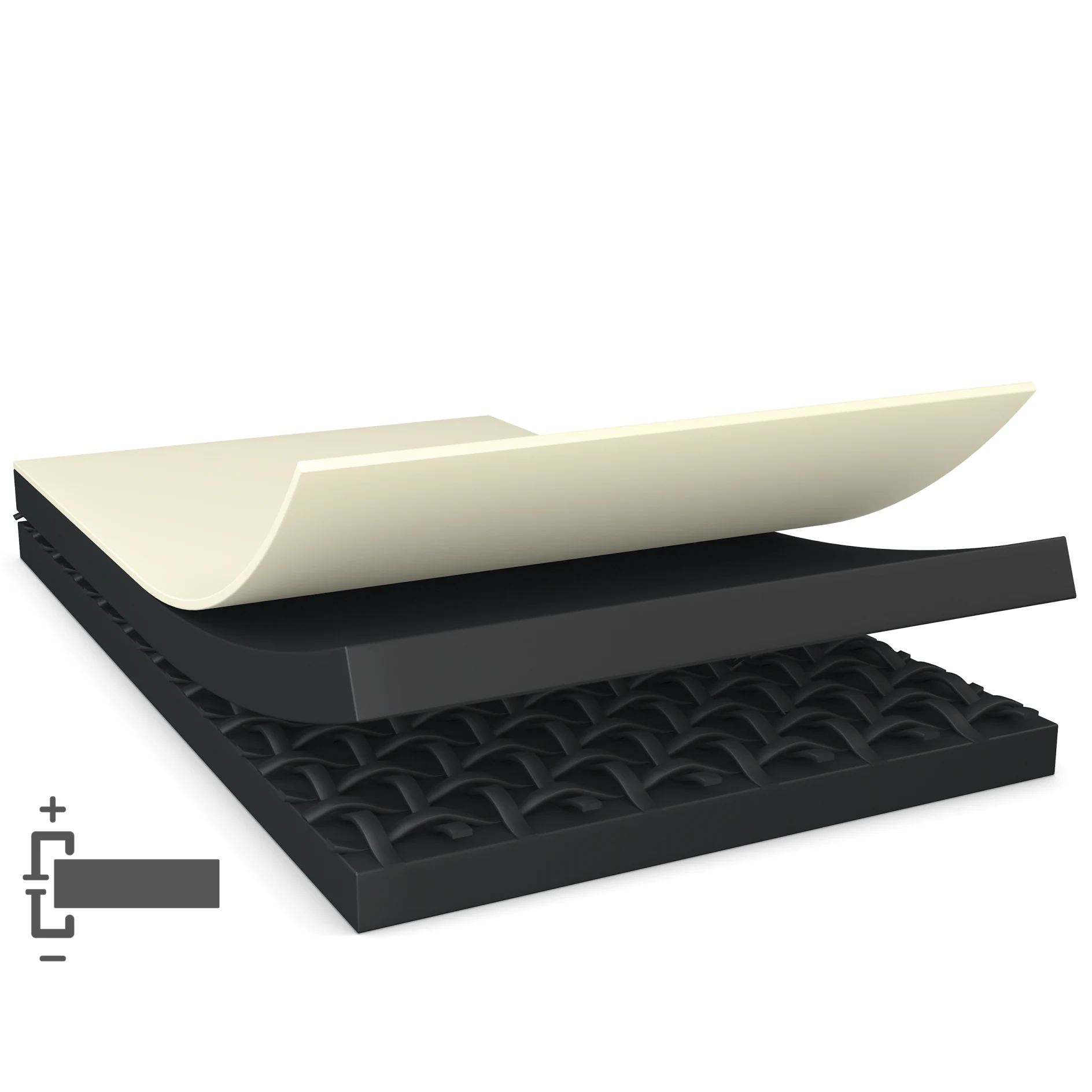

Product Construction
| 기재 소재 | 전도성 폼 |
|---|---|
| 이형지 두께 | 120 µm |
| 이형지 색깔 | 흰색/파란색 로고 |
| 이형지 종류 | PE 코팅된 직물 |
| 점착제 종류 | 전도성 아크릴 |
| 총두께 | 700 µm |
| 컬러 | 회색 |
Product Construction
| 기재 소재 | 전도성 폼 |
|---|---|
| 이형지 두께 | 120 µm |
| 이형지 색깔 | 흰색/파란색 로고 |
| 이형지 종류 | PE 코팅된 직물 |
| 점착제 종류 | 전도성 아크릴 |
| 총두께 | 700 µm |
| 컬러 | 회색 |
Properties / Performance Values
| 이형지 제거 | 간단함 |
|---|---|
| 단기간 온도저항 | 160 °C |
| z-축 방향 접촉저항 (초기) | 0.03 Ohm / square inch |
| 표면 저항 x-y-축 방향 | 0.2 Ohm / square |
Properties / Performance Values
| 이형지 제거 | 간단함 |
|---|---|
| 단기간 온도저항 | 160 °C |
| z-축 방향 접촉저항 (초기) | 0.03 Ohm / square inch |
| 표면 저항 x-y-축 방향 | 0.2 Ohm / square |
Adhesion to Values
| Steel점착력 (14일 경과) | 7.5 N/cm |
|---|
Adhesion to Values
| Steel점착력 (14일 경과) | 7.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.
