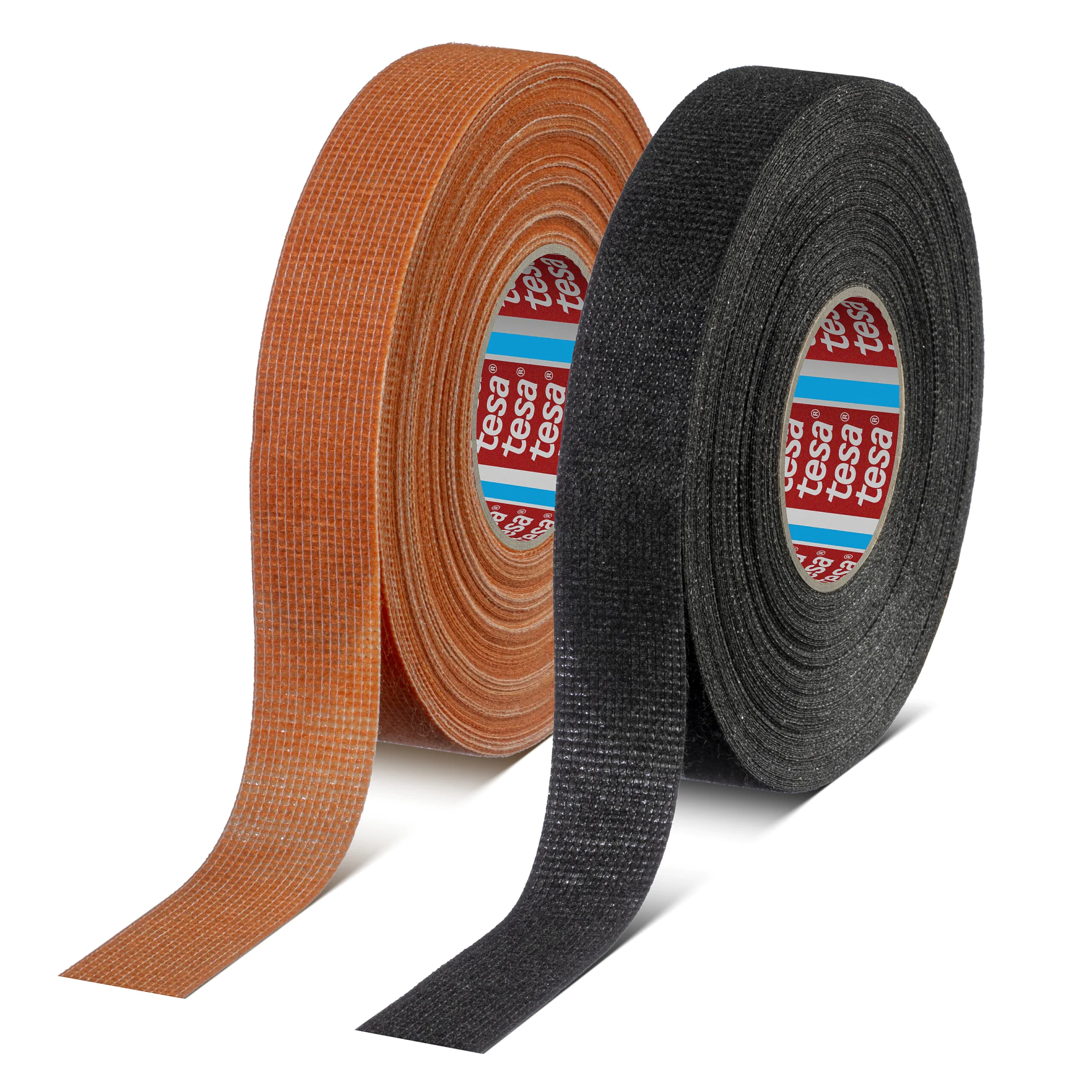

tesa® 51638 PV01
제품 세부 사항 및 사양
Product Construction
| 기재 소재 | PET 양모 |
|---|---|
| 점착제 종류 | 수용성 아크릴 |
| 총두께 | 260 µm |
Product Construction
| 기재 소재 | PET 양모 |
|---|---|
| 점착제 종류 | 수용성 아크릴 |
| 총두께 | 260 µm |
Properties / Performance Values
| 연신률 | 19.2 % |
|---|---|
| 인장강도 | 46.4 N/cm |
| 최저 내열도 | -40 °C |
| 내마모성 (5mm mandrel, LV312) | Class A |
| 소음 댐핑 (LV312) | Class C |
| 풀림성 (roll width > 9mm) | 9 N/roll (30 m/min) |
| 풀림성 (roll width ≤ 9mm) | 4.5 N/roll (30 m/min) |
| 내마모성 (10mm mandrel, LV312) | Class B |
| 최대 내열도 | 105 °C |
Properties / Performance Values
| 연신률 | 19.2 % |
|---|---|
| 인장강도 | 46.4 N/cm |
| 최저 내열도 | -40 °C |
| 내마모성 (5mm mandrel, LV312) | Class A |
| 소음 댐핑 (LV312) | Class C |
| 풀림성 (roll width > 9mm) | 9 N/roll (30 m/min) |
| 풀림성 (roll width ≤ 9mm) | 4.5 N/roll (30 m/min) |
| 내마모성 (10mm mandrel, LV312) | Class B |
| 최대 내열도 | 105 °C |
Adhesion to Values
| Steel점착력 | 2.3 N/cm |
|---|
Adhesion to Values
| Steel점착력 | 2.3 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
