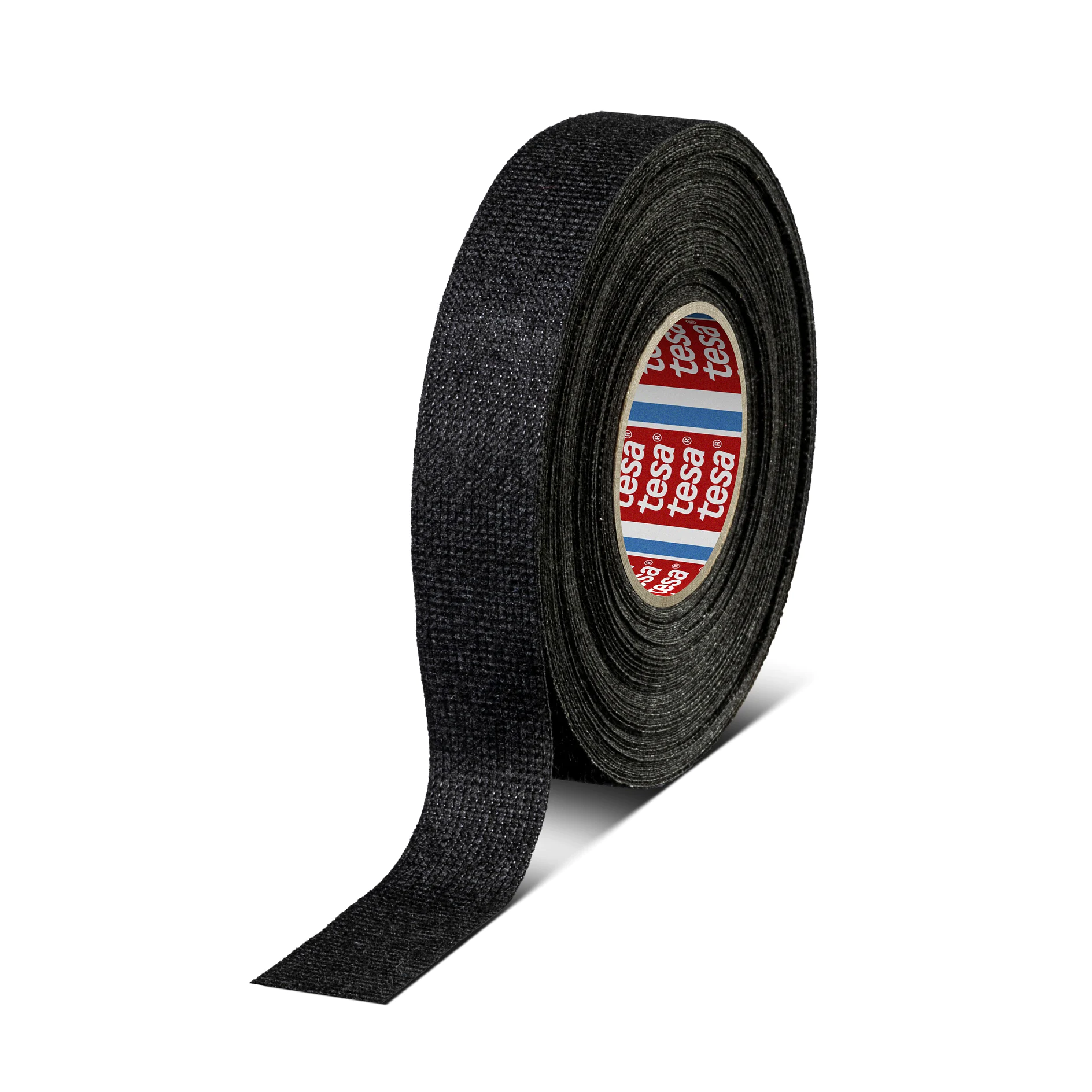

tesa® 51606
소음 방지용 고성능 PET 플리스 테이프
Product description
tesa® 51606은 고무 점착제가 사용된 두꺼운 PET 플리스 와이어 하네스 테이프입니다.
주요 특성:
- 우수한 소음 댐핑
- 우수한 내마모성
색상: 검은색
제품 세부 사항 및 사양
Application Fields
tesa® 51606은 차량 실내용으로 설계된 제품으로 우수한 소음 댐핑 성능을 제공합니다.
Product Construction
기재 소재 | PET 양모 |
---|---|
점착제 종류 | 고무 기반 |
총두께 | 800 µm |
Product Construction
기재 소재 | PET 양모 |
---|---|
점착제 종류 | 고무 기반 |
총두께 | 800 µm |
Properties / Performance Values
연신률 | 85 % |
---|---|
인장강도 | 55 N/cm |
풀림성 (roll width > 9mm) | 7.5 N/roll (30 m/min) |
최저 내열도 | -40 °C |
내마모성 (5mm mandrel, LV312) | Class C |
열 전도성 x-y-축 방향 | 0.066 W/mK |
내마모성 (10mm mandrel, LV312) | Class D |
최대 내열도 | 105 °C |
풀림성 (roll width ≤ 9mm) | 7.5 N/roll (30 m/min) |
소음 댐핑 (LV312) | Class D |
Properties / Performance Values
연신률 | 85 % |
---|---|
인장강도 | 55 N/cm |
풀림성 (roll width > 9mm) | 7.5 N/roll (30 m/min) |
최저 내열도 | -40 °C |
내마모성 (5mm mandrel, LV312) | Class C |
열 전도성 x-y-축 방향 | 0.066 W/mK |
내마모성 (10mm mandrel, LV312) | Class D |
최대 내열도 | 105 °C |
풀림성 (roll width ≤ 9mm) | 7.5 N/roll (30 m/min) |
소음 댐핑 (LV312) | Class D |
Adhesion to Values
Steel점착력 | 5.5 N/cm |
---|
Adhesion to Values
Steel점착력 | 5.5 N/cm |
---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.
