tesa® ACXplus 77805 Primerless Line

0.5mm 양면 아크릴 폼 테이프 / 자동차 외장 부품 마운팅용


Product description

tesa® ACXplus 77805 제품은 자동차 외장용 부품 마운팅을 위한 양면 아크릴 폼 테이프입니다. 양면에 LSE 접착제가 코팅된 3중 대칭 디자인 제품입니다. 공정에서 프라이머를 제거하는 데 도움이 될 수 있습니다. 고성능 LSE 점착제는 프라이머가 없는 LSE(PP, PP/EPDM 등) 플라스틱과 MSE(ABS 등) 플라스틱으로 만들어진 일반적인 자동차 부착 부품에 효율적이고 안전한 접착이 가능합니다.
또한, 본 제품은 OEM 클리어 코트의 종류에 따라 접착성이 뛰어납니다. 점탄성 아크릴 폼 코어 덕분에 tesa® ACXplus 77811 Primerless Line은 동적 및 정적 하중을 흡수 및 분산할 수 있습니다.
0.8mm, 1.1mm 및 1.5mm 형식으로도 사용 가능.
특성:

  • High initial performance on LSE plastics and difficult-to-bond clear coats without primer
  • Superior peel-adhesion level right after application
  • Excellent bonding stability at an application temperature as low as 5°C
  • PFAS / PFOS free Product
  • Efficient and robust application
  • Viscoelastic acrylic foam core to compensate for different thermal elongation of bonded parts
  • Outstanding wet-out property
  • High humidity and UV resistance
LSE: low surface energy, MSE: medium surface energy


제품 세부 사항 및 사양

Application Fields

tesa® ACXplus 77805 Primerless Line is suitable for a wide range of permanent exterior mounting applications. To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.
Example applications are:

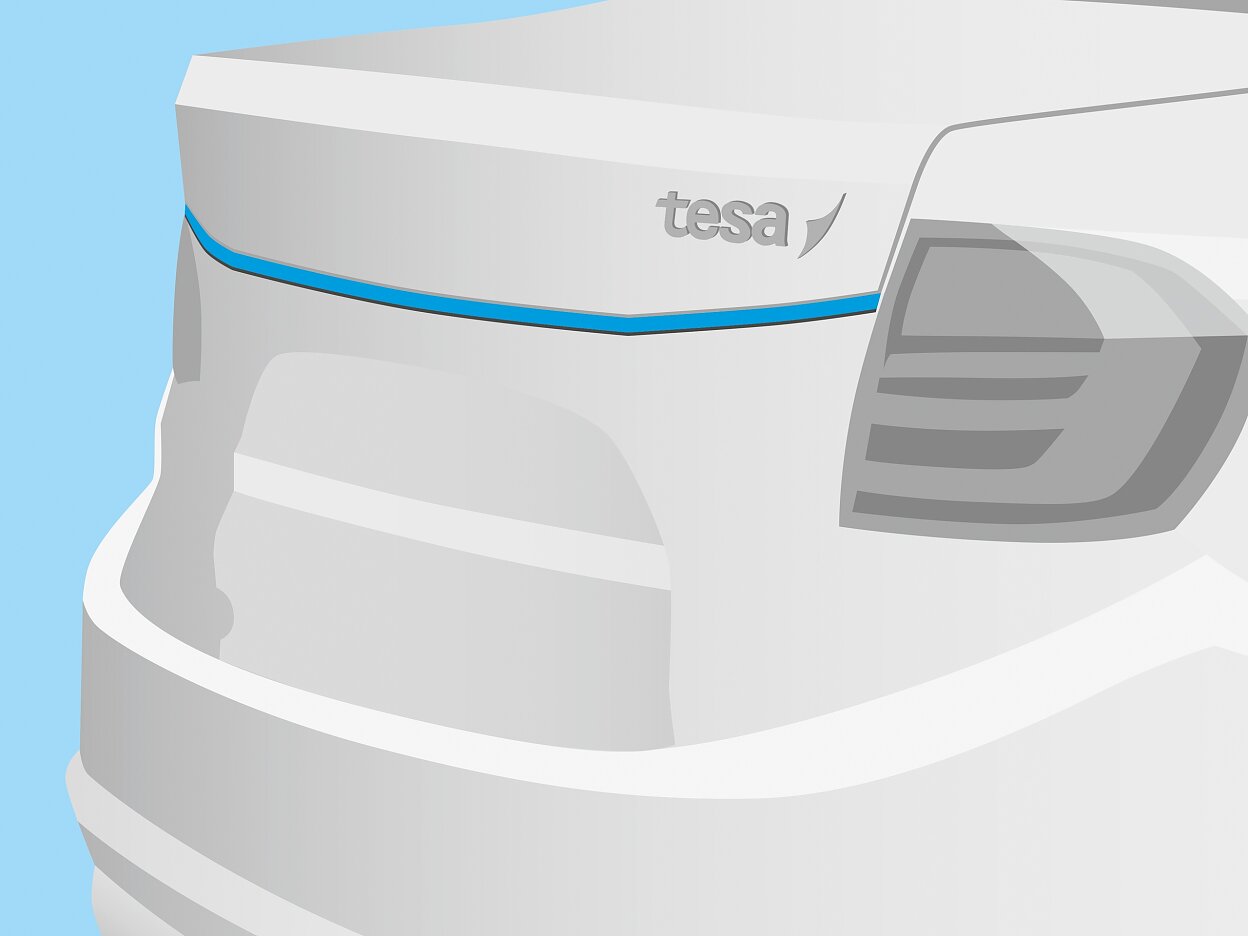

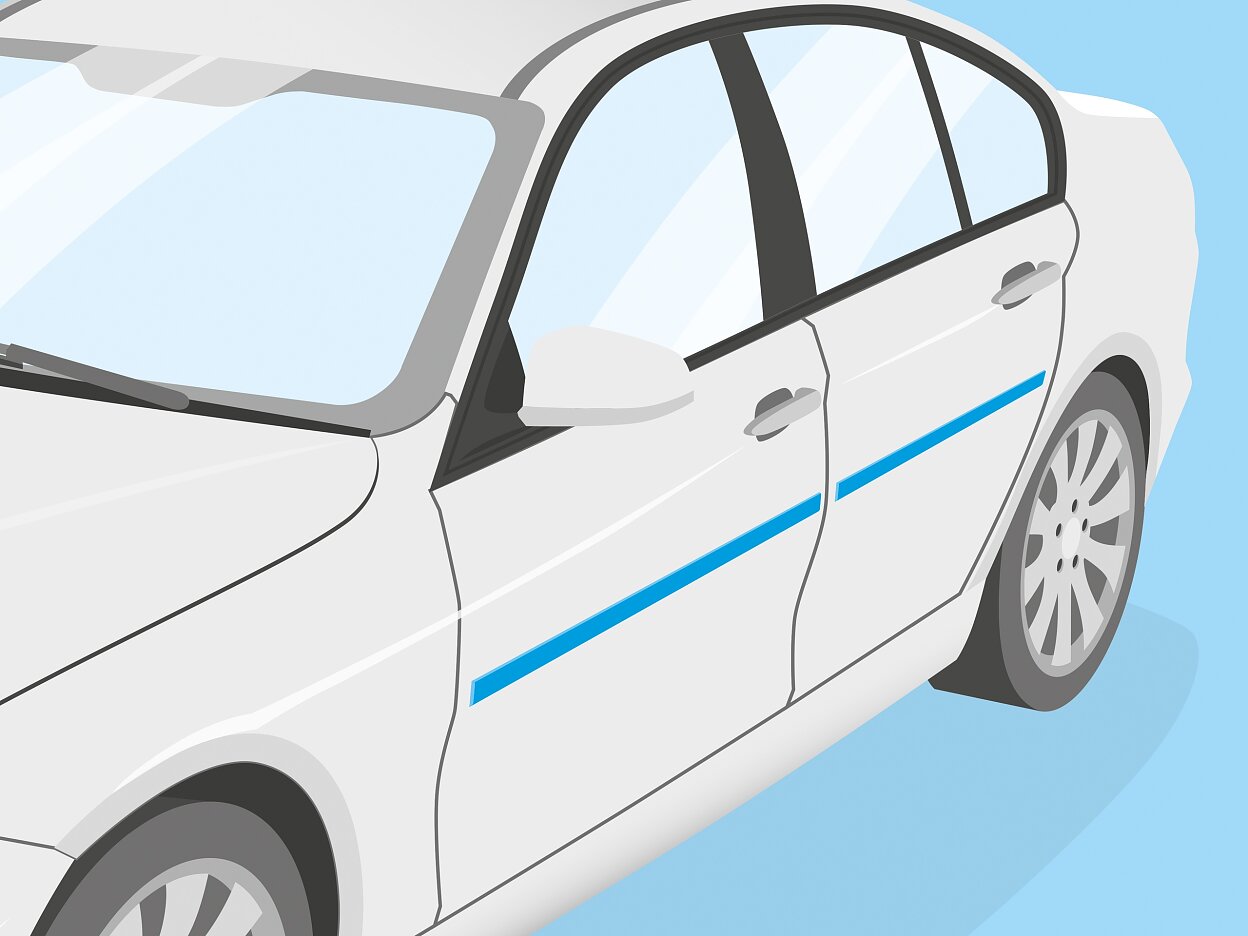

  • Body side moldings and decorative trims

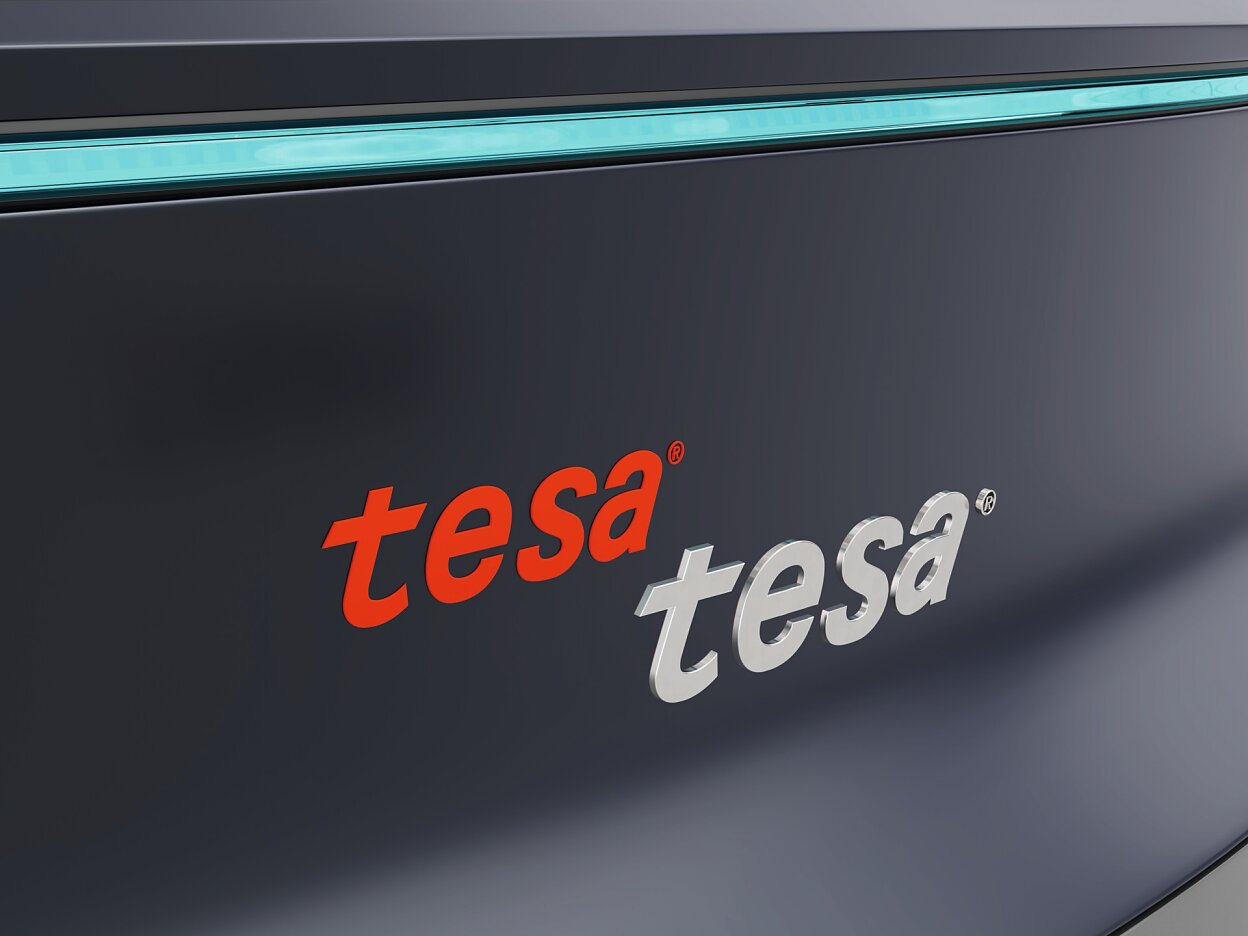

  • Emblems
  • Spoilers
  • Antennas

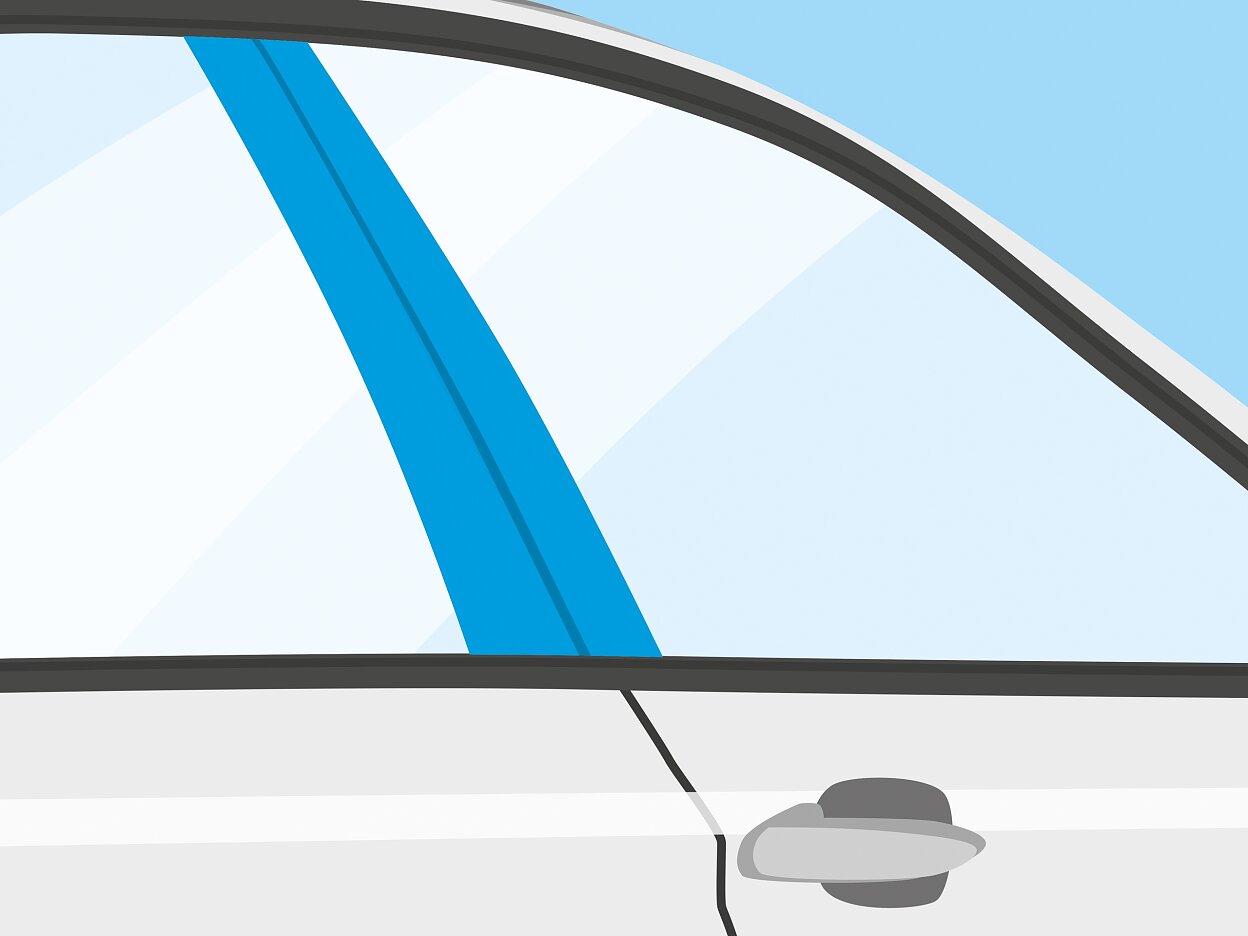

  • Pillar appliqués

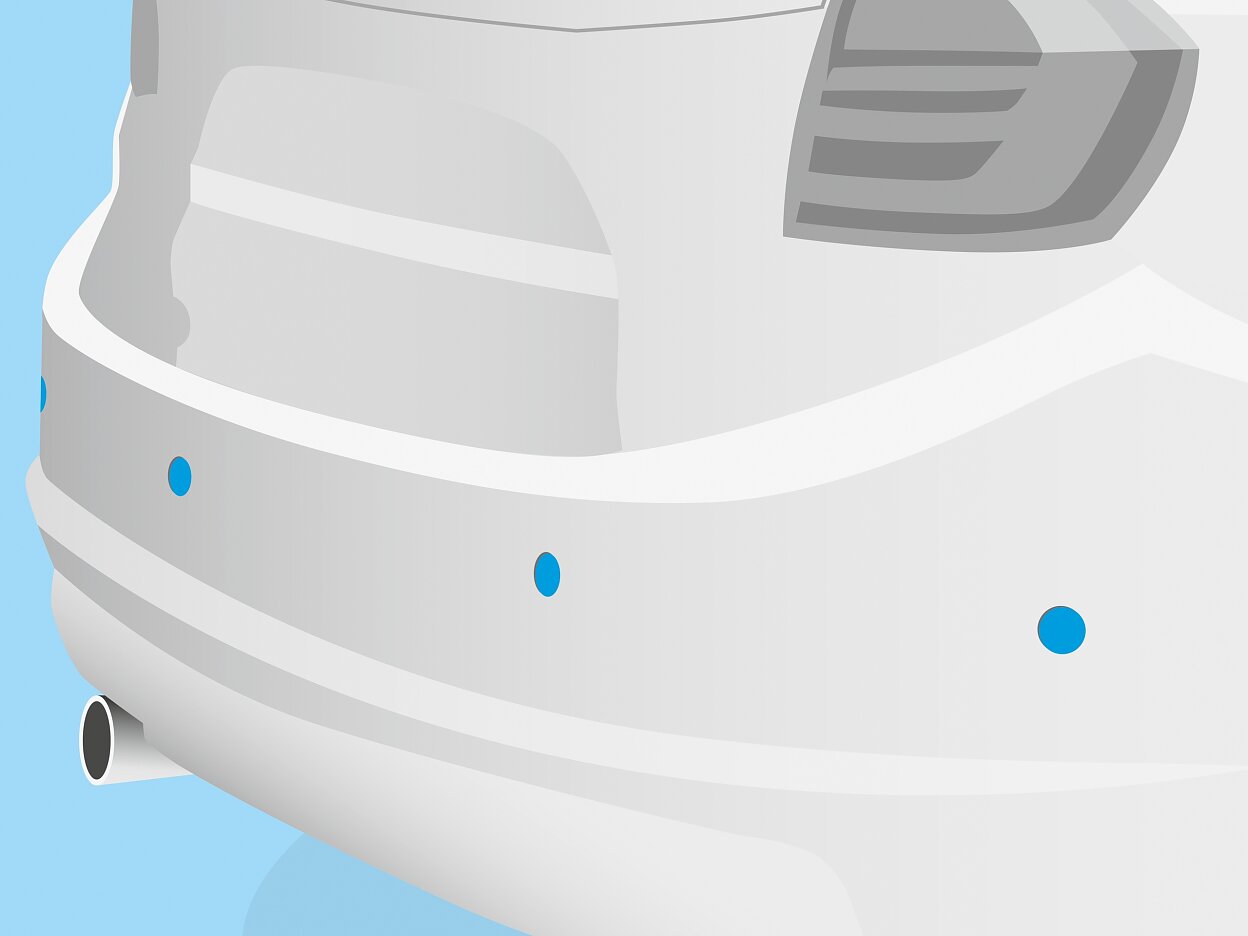

  • PDC mounting

Product Construction

기재 소재 아크릴 폼
이형지 종류 PE
점착제 종류 LSE
총두께 500 µm
컬러 회색

Properties / Performance Values

단기간 온도저항 120 °C
노후성 (UV) good
장기간 온도저항 80 °C
내열 범위 -40 to +80
내습성 very good
정적 전단응력 (90°C) very good

Adhesion to Values

ABS점착력 (초기) 24 N/cm
ABS점착력 (3일 경과) 26 N/cm
PP점착력 (초기) 26 N/cm
PP점착력 (3일 경과) 27 N/cm
Steel점착력 (초기) 26 N/cm
Steel점착력 (14일 경과) 28 N/cm
Steel점착력 (3일 경과) 28 N/cm

Additional Info

  • Static shear resistance tested with 25 mm x 25 mm tape on steel, 200 g weight
  • Liner: PV15 = royal blue siliconized HDPE film liner
  • Temperature range: values are load dependent
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.
