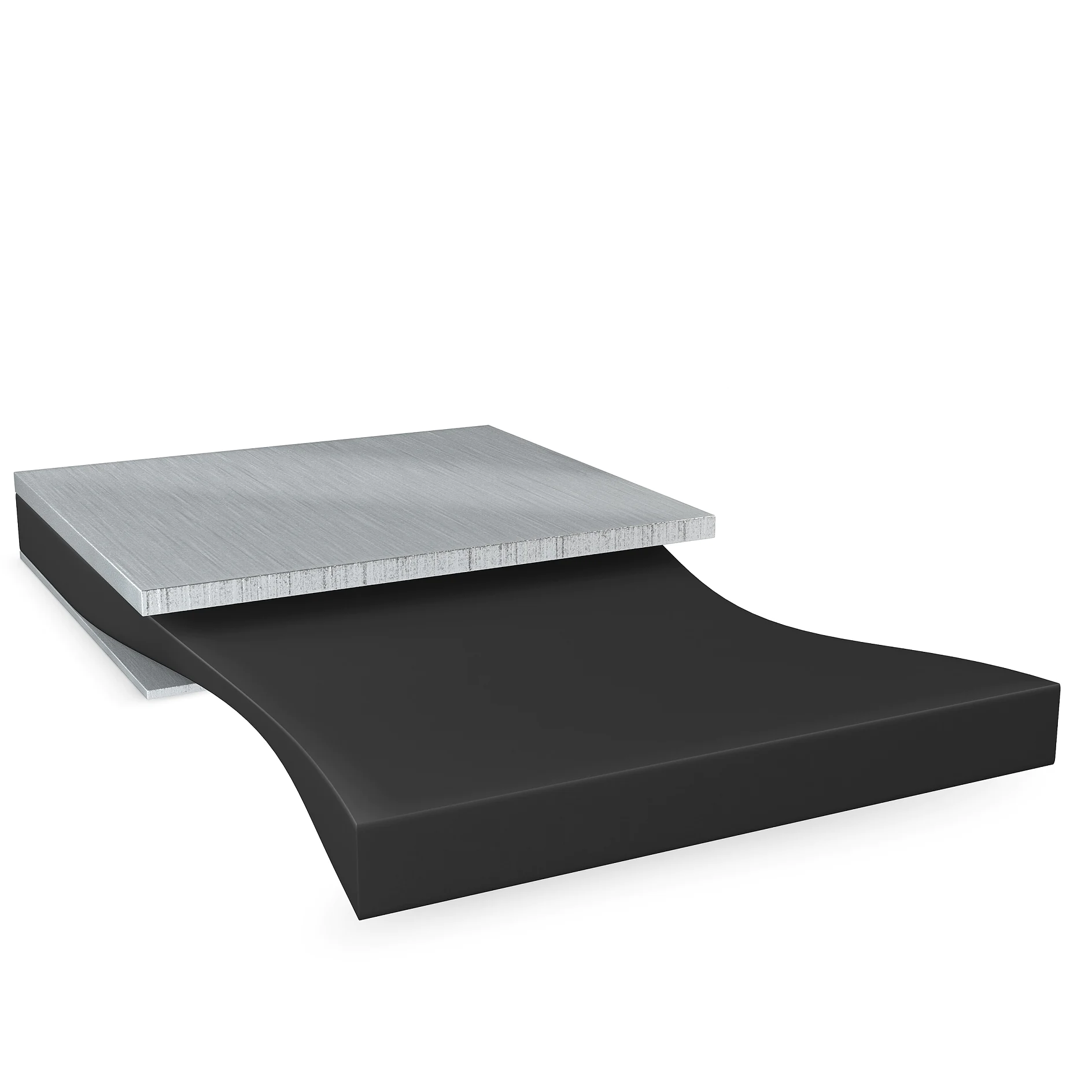

tesa® 76565 Bond & Detach

500 µm stretch release tape


제품 기능
  • High initial bonding strength
  • High temperature, humidity and UV resistance
  • Easy and reliable removability even after long bonding time
모든 제품 기능
Product description

Double sided specialty adhesive tape for reliable bonding of components over the lifetime of a car with the additional feature to release the bond whenever needed, leaving no residues behind.
Our Bond & Detach solutions offer the possibility to rework high value components during the production process enhancing process efficiency by decreasing reworking time, effort, and scrap cost. Furthermore, tesa® 76565 Bond & Detach enables the separation of bonds during or after the lifetime of a vehicle allowing for repairing, reuse or recycle of components.
The stretch-release mechanism used to debond our Bond & Detach needs no additional heat, cold or liquids that would endanger surrounding materials and leaves clean and residue-free substrates. This enables an easy reuse of the bonded high value components.
Its high temperature-, humidity- and UV-resistance allows for the usage in various automotive applications such as display mounting, bonds in ADAS components and EV systems. The deep black color eliminates issues with light leakage and allows for decent appearance in flexible designs as well as automated application.


제품 세부 사항 및 사양

제품 기능

  • High initial bonding strength
  • High temperature, humidity and UV resistance
  • Easy and reliable removability even after long bonding time
  • Light blocking
  • PFAS free

Application Fields

Target markets for tesa® Bond & Detach 76565 are automotive Display mounting, E-mobility and ADAS systems. Generally, it is especially recommended for the bonding of high value components.
E-mobility: Our stretch release mechanism is suitable for battery pack sealing, cell- as well as module-mounting.
Connected Interior: Focus applications in the automotive interior are display frame mounting, retainer mounting and FPC/PCB mounting.
기재 소재 없음
이형지 두께 75 µm
이형지 무게 110 g/m²
이형지 색깔 투명성
이형지 종류 siliconised PET
점착제 종류 합성고무
총두께 500 µm
컬러 deep black
For our comprehensive technical information sheet, please visit our website: https://www.tesa.com/en-sg/about-tesa/press-insights/stories/bond-and-detach-automotive.html
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.

연락주세요!

연락처

메시지 보내주셔서 감사합니다.

최대한 빨리 연락드리겠습니다.

Something went wrong. Please try again later.

제품 비교

제품명 tesa® 76565 Bond & Detach tesa® 58334 100µm D/S PET tesa® 58332 50µm D/S PET tesa® 88710S OCA tesa® ACXplus 76730 Box Seal tesa® 70410 Bond & Detach® tesa® 60619 Bond & Detach® tesa® 70430 Bond & Detach® tesa® 70420 Bond & Detach® tesa® 67215 Bond & Detach® tesa® 70440 Bond & Detach®
총두께
500 µm
100 µm
50 µm
250 µm
100 µm
250 µm
300 µm
200 µm
150 µm
400 µm
점착제 종류
합성고무
변성 아크릴
변성 아크릴
아크릴
아크릴
특수
특수
특수
특수
합성고무
특수
기재 소재
없음
PET
PET
없음
PU 필름
없음
없음
없음
없음
PU 필름
없음
장기간 온도저항
125 °C
125 °C
60 °C
60 °C
60 °C
60 °C
60 °C
60 °C
정적 전단응력 (23°C)
good
good
very good
very good
very good
very good
very good
very good
단기간 온도저항
90 °C
90 °C
90 °C
90 °C
90 °C
90 °C
마지막 업데이트 날짜 2025. 2. 14.
