1.2mm 열압착 폼 테이프 - 차량 도어 씰링과 같은 까다로운 씰링 애플리케이션 마운팅용
제품 기능
Efficient and secure bonding of the heat-activatable layer to seals
Application on clearcoats without primer
Final peel adhesion reached after 24 h
모든 제품 기능Product description
tesa® ACXplus 74712 Seal Line is a deep black acrylic foam tape for permanent mounting of seals, mainly on automotive clearcoat. It has a heat-activatable adhesive on the non-liner side. The adhesive gets activated by hot air or near-infrared when applying it onto the PP/EPDM, PP, TPV, or TPE seal.
Compared to the conventional process with primer, tesa® ACXplus 74712 Seal Line ensures a highly secure bond to the rubber profile, enables a higher application speed than using primer, and supports a more environmentally friendly production process.
By introducing a functional layer at the liner side, tesa® ACXplus 74712 can be used on various automotive clearcoats even without the use of adhesion promoters. The acrylic foam core ensures outstanding dimensional stability even at high temperatures and loads. At the same time, by its viscoelastic properties, tesa® ACXplus 74712 Seal Line absorbs and dissipates dynamic and static loads. This also allows compensation of extreme physical stress caused by the different thermal elongation of bonded parts in rapidly changing temperatures.
The deep black color provides an enhanced appearance and high design flexibility.
제품 세부 사항 및 사양
제품 기능
Efficient and secure bonding of the heat-activatable layer to seals
Application on clearcoats without primer
Final peel adhesion reached after 24 h
Enhanced temperature resistance
Robust shear performance even at high temperatures
PFAS / PFOS free product
Strong bonding of the heat-activatable layer to acrylic core that withstands even humidity and heat
Closed cell acrylic foam core for reliable sealing to prevent water penetration
High humidity and UV resistance
Excellent cold shock performance
Application Fields
tesa® ACXplus 74712 Seal Line can be widely used for all kinds of automotive seal applications within a temperature range of -40 °C to 90 °C.

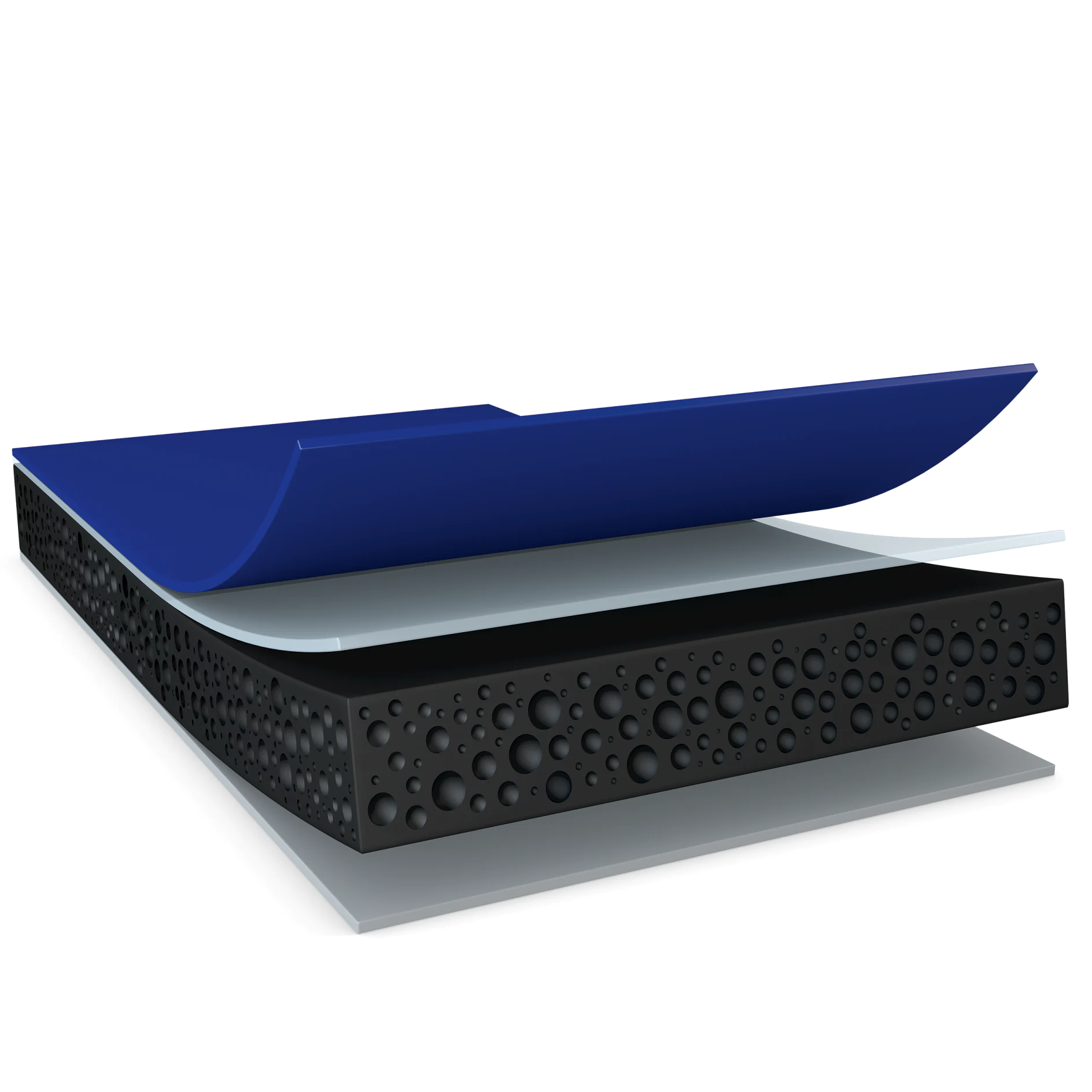

Product Construction
Type of adhesive
type: acrylic
Type of liner
type: PE/PP protection film
기재 소재
아크릴 폼
이형지 색깔
파랑
점착제 종류 to Seal
heat-activatable
총두께
1.2 µm
컬러
deep black, 검정
Product Construction
Type of adhesive
type: acrylic
Type of liner
type: PE/PP protection film
기재 소재
아크릴 폼
이형지 색깔
파랑
점착제 종류 to Seal
heat-activatable
총두께
1.2 µm
컬러
deep black, 검정
Properties / Performance Values
연신률
500 %
인장강도
19 N/cm
내습성
very good
노후성 (UV)
very good
Properties / Performance Values
연신률
500 %
인장강도
19 N/cm
내습성
very good
노후성 (UV)
very good
Adhesion to Values
Adhesion to Clear coat (covered side, after 3 days)
36 N/cm
Clear Coat점착력 (20분 경과)
18 N/cm
Steel점착력 (초기)
36 N/cm
Steel점착력 (3일 경과)
36 N/cm
Adhesion to TPE (T-Peel, after 3 days warm / humid)
16 N/cm
Adhesion to TPE (T-Peel, after 3 days)
16 N/cm
Adhesion to Values
Adhesion to Clear coat (covered side, after 3 days)
36 N/cm
Clear Coat점착력 (20분 경과)
18 N/cm
Steel점착력 (초기)
36 N/cm
Steel점착력 (3일 경과)
36 N/cm
Adhesion to TPE (T-Peel, after 3 days warm / humid)
16 N/cm
Adhesion to TPE (T-Peel, after 3 days)
16 N/cm
Additional Info
PV29 = filmic liner in royal blue, siliconized to adhesive side and silicone free to tabbing side, works with both heat and adhesive tabbing tapes. Liner removal force 45 cN/cm.
Adhesion to steel and tesa standard clearcoat: measured at 90°, 300mm/min, tape reinforced with aluminium foil
T-Peel test: heat-activatable adhesive to standard TPE seal, 300 mm/min
Warm/humid storage: 72 h at 40°C and 100% r.h.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
