tesa® 68747
100µm 양면 검은색 필름테이프
Product description
tesa® 68747은 검은색 PET 기재와 변성 아크릴 점착제로 구성된 검은색 양면 점착 테이프입니다.
tesa® 68747의 특성
- 두께: 100μm
- 우수한 점착력
- 까다로운 환경에서도 내성이 뛰어남
- 컨버팅 과정에서 작업성이 뛰어남
제품 세부 사항 및 사양
Application Fields

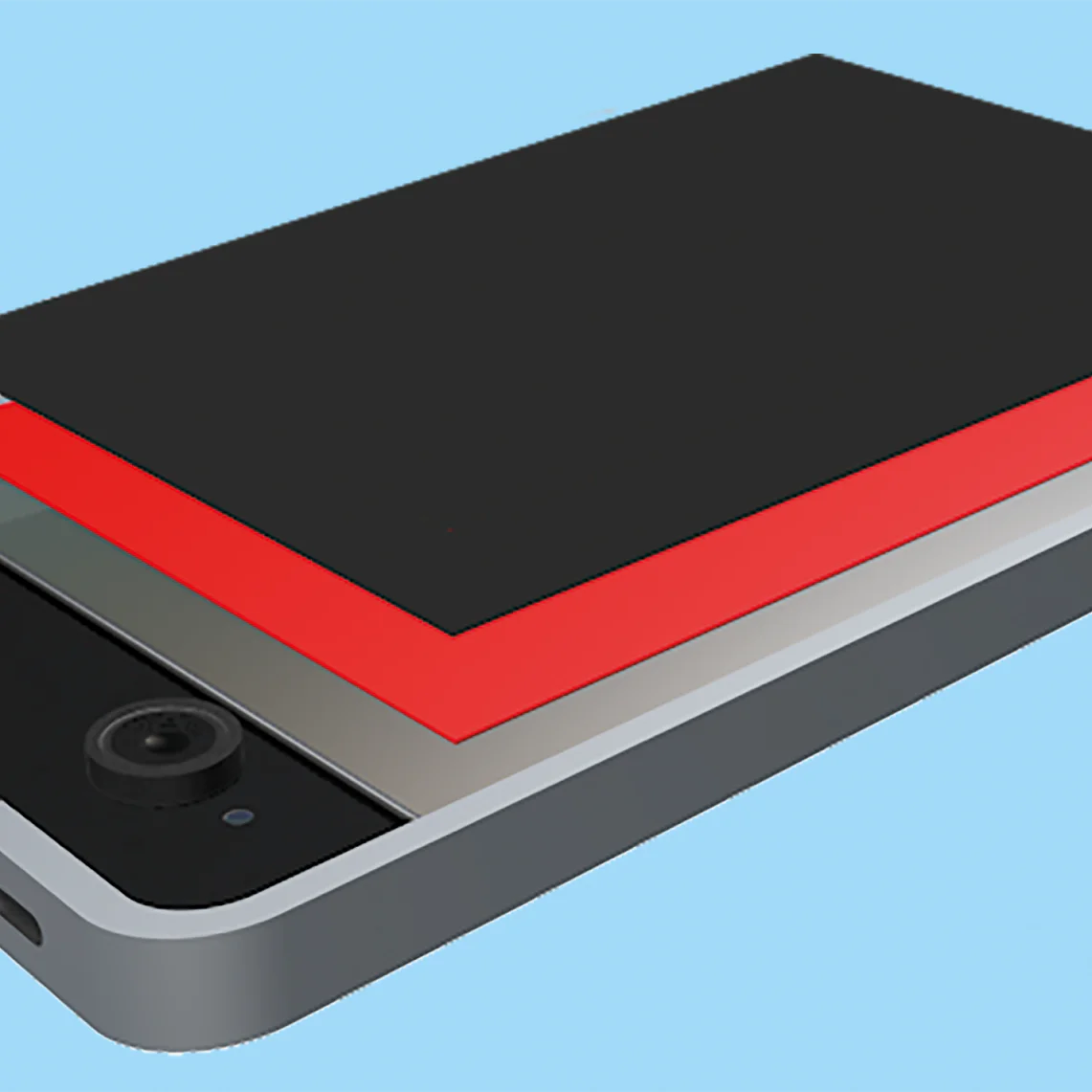

tesa® 68747은 일반적인 마운팅 및 합지 용도로 사용되며 특히 전자 산업에서 널리 쓰입니다.

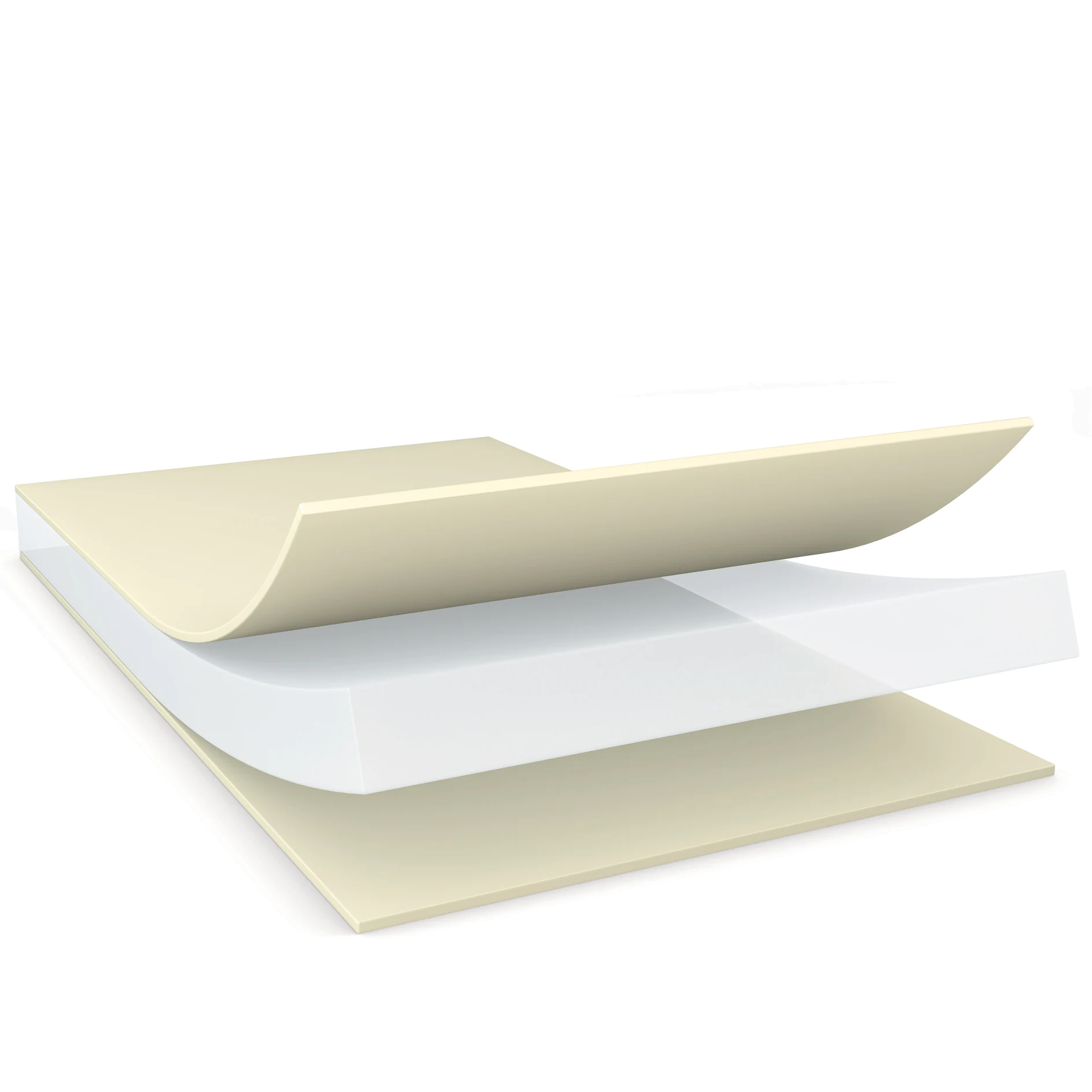

Product Construction
기재 소재 | PET필름 |
---|---|
이형지 두께 | 71 µm |
이형지 무게 | 82 g/m² |
이형지 색깔 | 황색 |
이형지 종류 | 글라신지 |
점착제 종류 | 변성 아크릴 |
총두께 | 100 µm |
컬러 | 검정 |
Product Construction
기재 소재 | PET필름 |
---|---|
이형지 두께 | 71 µm |
이형지 무게 | 82 g/m² |
이형지 색깔 | 황색 |
이형지 종류 | 글라신지 |
점착제 종류 | 변성 아크릴 |
총두께 | 100 µm |
컬러 | 검정 |
Properties / Performance Values
연신률 | 50 % |
---|---|
인장강도 | 20 N/cm |
단기간 온도저항 | 150 °C |
가소제 저항성 | good |
Tack | good |
내습성 | good |
노후성 (UV) | very good |
장기간 온도저항 | 80 °C |
정적 전단응력 (23°C) | good |
Properties / Performance Values
연신률 | 50 % |
---|---|
인장강도 | 20 N/cm |
단기간 온도저항 | 150 °C |
가소제 저항성 | good |
Tack | good |
내습성 | good |
노후성 (UV) | very good |
장기간 온도저항 | 80 °C |
정적 전단응력 (23°C) | good |
Adhesion to Values
ABS점착력 (초기) | 7.6 N/cm |
---|---|
ABS점착력 (14일 경과) | 7.2 N/cm |
알루미늄점착력 (초기) | 5.8 N/cm |
알루미늄점착력 (14일 경과) | 8.8 N/cm |
PC점착력 (초기) | 9.9 N/cm |
PC점착력 (14일 경과) | 12 N/cm |
PE점착력 (초기) | 4.3 N/cm |
PE점착력 (14일 경과) | 4.7 N/cm |
PET점착력 (초기) | 6.9 N/cm |
PET점착력 (14일 경과) | 7.5 N/cm |
PP점착력 (초기) | 4.2 N/cm |
PP점착력 (14일 경과) | 6.6 N/cm |
PVC점착력 (초기) | 7.9 N/cm |
PVC점착력 (14일 경과) | 11.8 N/cm |
Steel점착력 (초기) | 8.7 N/cm |
Steel점착력 (14일 경과) | 10.1 N/cm |
Adhesion to Values
ABS점착력 (초기) | 7.6 N/cm |
---|---|
ABS점착력 (14일 경과) | 7.2 N/cm |
알루미늄점착력 (초기) | 5.8 N/cm |
알루미늄점착력 (14일 경과) | 8.8 N/cm |
PC점착력 (초기) | 9.9 N/cm |
PC점착력 (14일 경과) | 12 N/cm |
PE점착력 (초기) | 4.3 N/cm |
PE점착력 (14일 경과) | 4.7 N/cm |
PET점착력 (초기) | 6.9 N/cm |
PET점착력 (14일 경과) | 7.5 N/cm |
PP점착력 (초기) | 4.2 N/cm |
PP점착력 (14일 경과) | 6.6 N/cm |
PVC점착력 (초기) | 7.9 N/cm |
PVC점착력 (14일 경과) | 11.8 N/cm |
Steel점착력 (초기) | 8.7 N/cm |
Steel점착력 (14일 경과) | 10.1 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

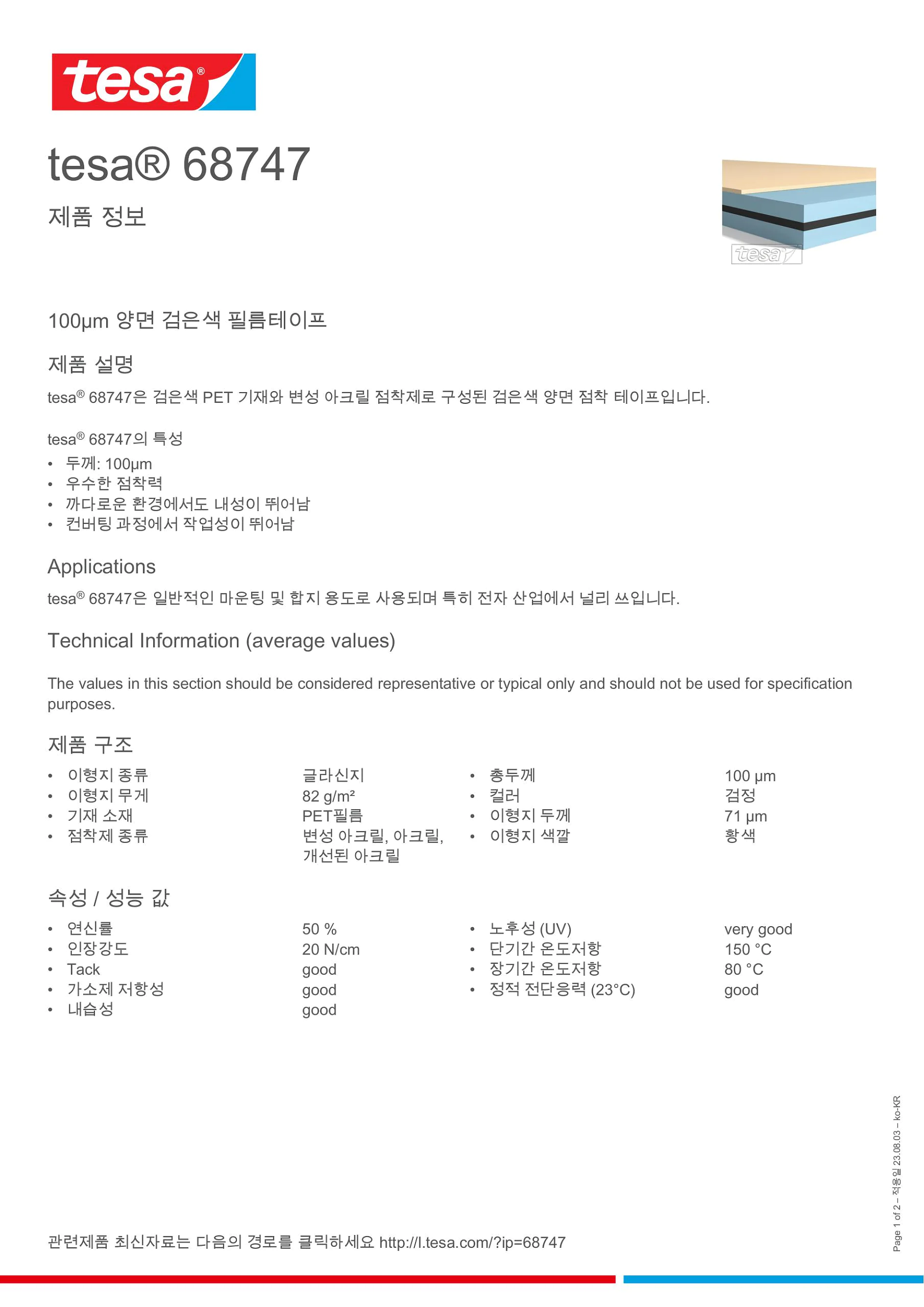

Downloads
이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.
