tesa® 66330
30µm single-sided amber polyimide tape
제품 기능
- Thickness: 30µm
- Excellent anti-repulsion properties
- Flame retardant property
Product description
tesa® 66330 is a single sided tape, consisting of a poyimide film backing and special anti-repulsion acrylic adhesive
Color: Amber
제품 세부 사항 및 사양
제품 기능
- Thickness: 30µm
- Excellent anti-repulsion properties
- Flame retardant property
- Very good insulation resistance properties
- Very good chemical and temperature stability
Application Fields
- Li -battery edge wrapping
- Fixing or wrapping applications where insulation resistance, flame retardant or high temperature is required

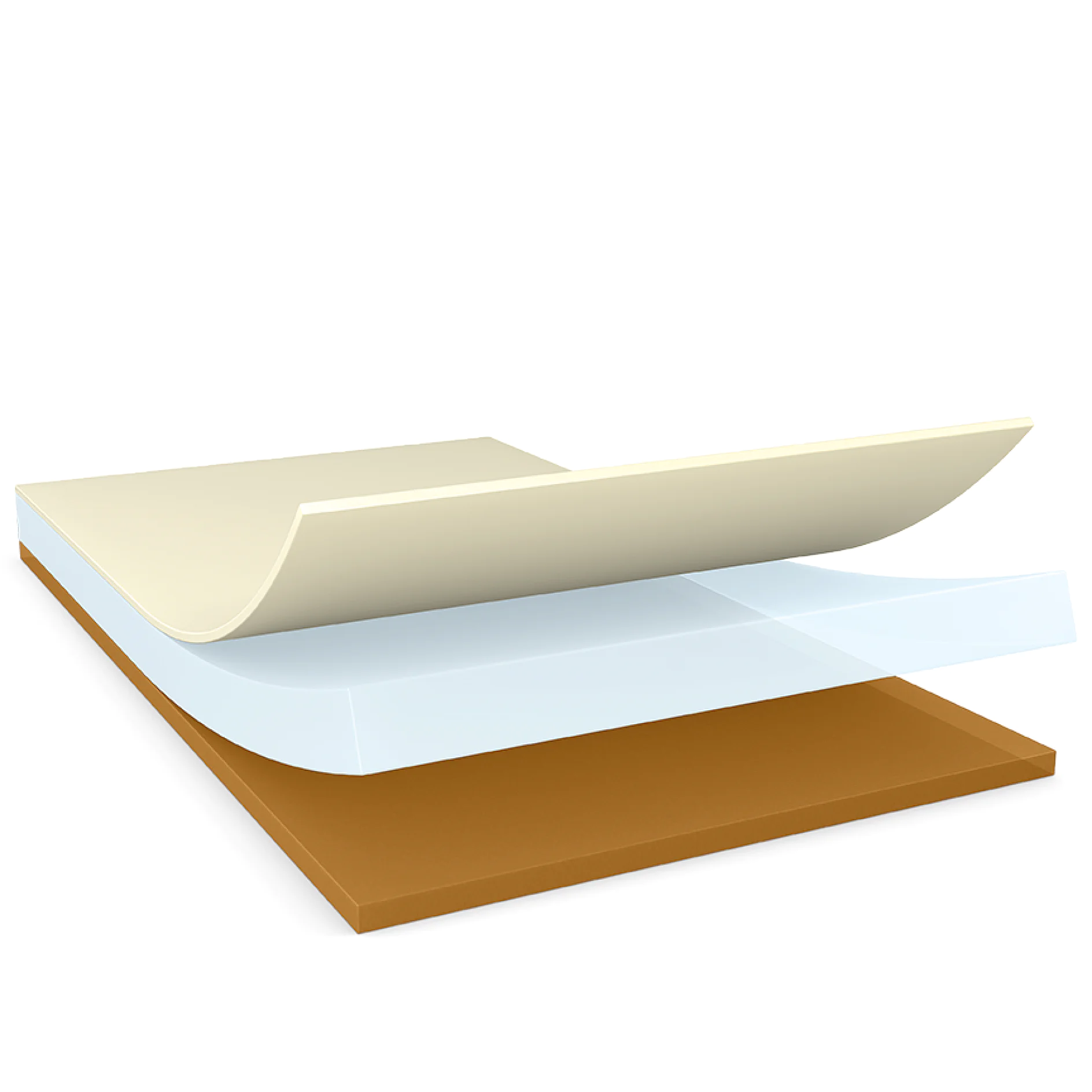

Product Construction
기재 소재 | 폴리이미드 |
---|---|
이형지 두께 | 50 µm |
이형지 색깔 | 투명성 |
이형지 종류 | PET |
점착제 종류 | 아크릴 |
총두께 | 30 µm |
Product Construction
기재 소재 | 폴리이미드 |
---|---|
이형지 두께 | 50 µm |
이형지 색깔 | 투명성 |
이형지 종류 | PET |
점착제 종류 | 아크릴 |
총두께 | 30 µm |
Properties / Performance Values
연신률 | 30 % |
---|---|
인장강도 | 20 N/cm |
장기간 온도저항 | 85 °C |
절연파괴전압 | 3600 V |
단기간 온도저항 | 140 °C |
Properties / Performance Values
연신률 | 30 % |
---|---|
인장강도 | 20 N/cm |
장기간 온도저항 | 85 °C |
절연파괴전압 | 3600 V |
단기간 온도저항 | 140 °C |
Adhesion to Values
Steel점착력 | 3 N/cm |
---|
Adhesion to Values
Steel점착력 | 3 N/cm |
---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
