tesa® 66108

아크릴 양면 테이프 (PE폼 기재)



Product description

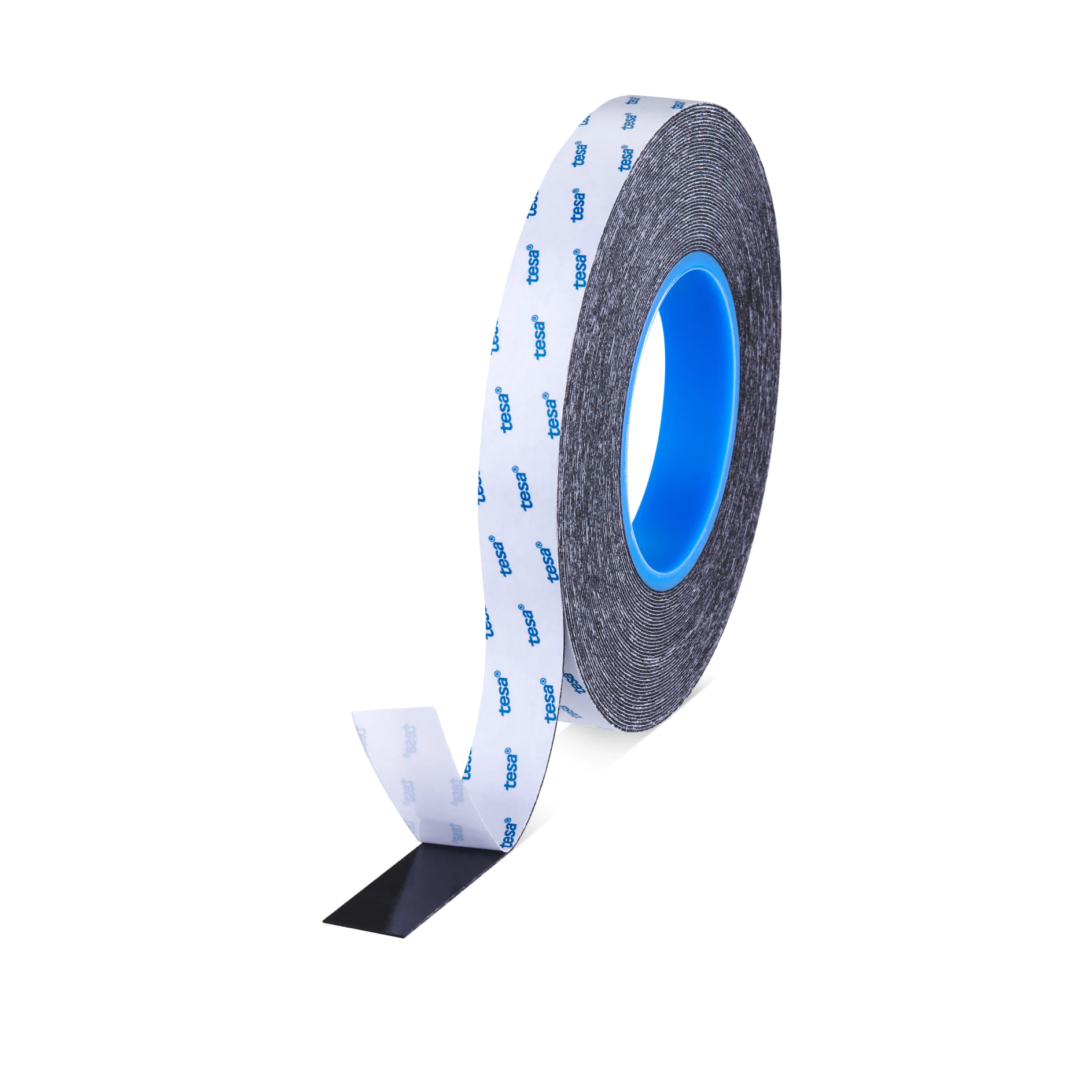

tesa® 66108 is a double-sided adhesive tape consisting of a PE foam backing and a tackified acrylic adhesive. With a thickness of 0.8 mm it is perfectly suitable to mount automotive exterior mirrors with or without heating element onto the base plate.
The tackified acrylic adhesive features an high initial and ultimate adhesion strength especially to ABS and ABS/PC and a good temperature resistance.


Due to the high conformability the tape ensures a superior wet out and compensates design tolerances leading to an reliable bond especially for electrochromic mirrors with higher weight and mirrors of light and heavy trucks and bus bigger in size and with increased curvature. This leads also to an excellent performance in splintering protection and cold shock resistance.


특성:
  • High initial adhesive strength
  • Excellent cold shock resistance
  • Superior wet-out performance
  • Conformable PE foam backing to compensate design tolerance
  • Excellent splintering protection
  • Good temperature resistance performance
  • Excellent converting property
  • UV resistant

Main applications

tesa® 66108 is suitable for mounting automotive exterior mirrors with or without heating element onto the base plate.


Example applications are:
  • Passenger car mirror with electrochromic mirror glass
  • Light and heavy truck and bus mirrors with bigger size and increased curvature


To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.

Technical properties

연신률

190 %

점착제 종류

변성 아크릴

인장강도

8 N/cm

총두께

800 µm

기재 소재

PE 폼

색깔

검정

Adhesion properties

Steel점착력 (초기)

10 N/cm

PC점착력 (14일 후)

10 N/cm

ABS점착력 (초기)

10 N/cm

ABS점착력 (14일 후)

10 N/cm

PP점착력 (14일 후)

10 N/cm

PET점착력 (14일 후)

10 N/cm

PC점착력 (초기)

10 N/cm

PET점착력 (초기)

10 N/cm

PP점착력 (초기)

1.7 N/cm

Steel점착력 (14일 후)

10 N/cm

Rating properties

정적 전단응력 (23°C)

++

Tack

++

정적 전단응력 (70°C)

+

장기 내열성

80 °C

단기 내열성

80 °C

Additional Info

Liner:
PV0: brown glassine paper (71μm)

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
