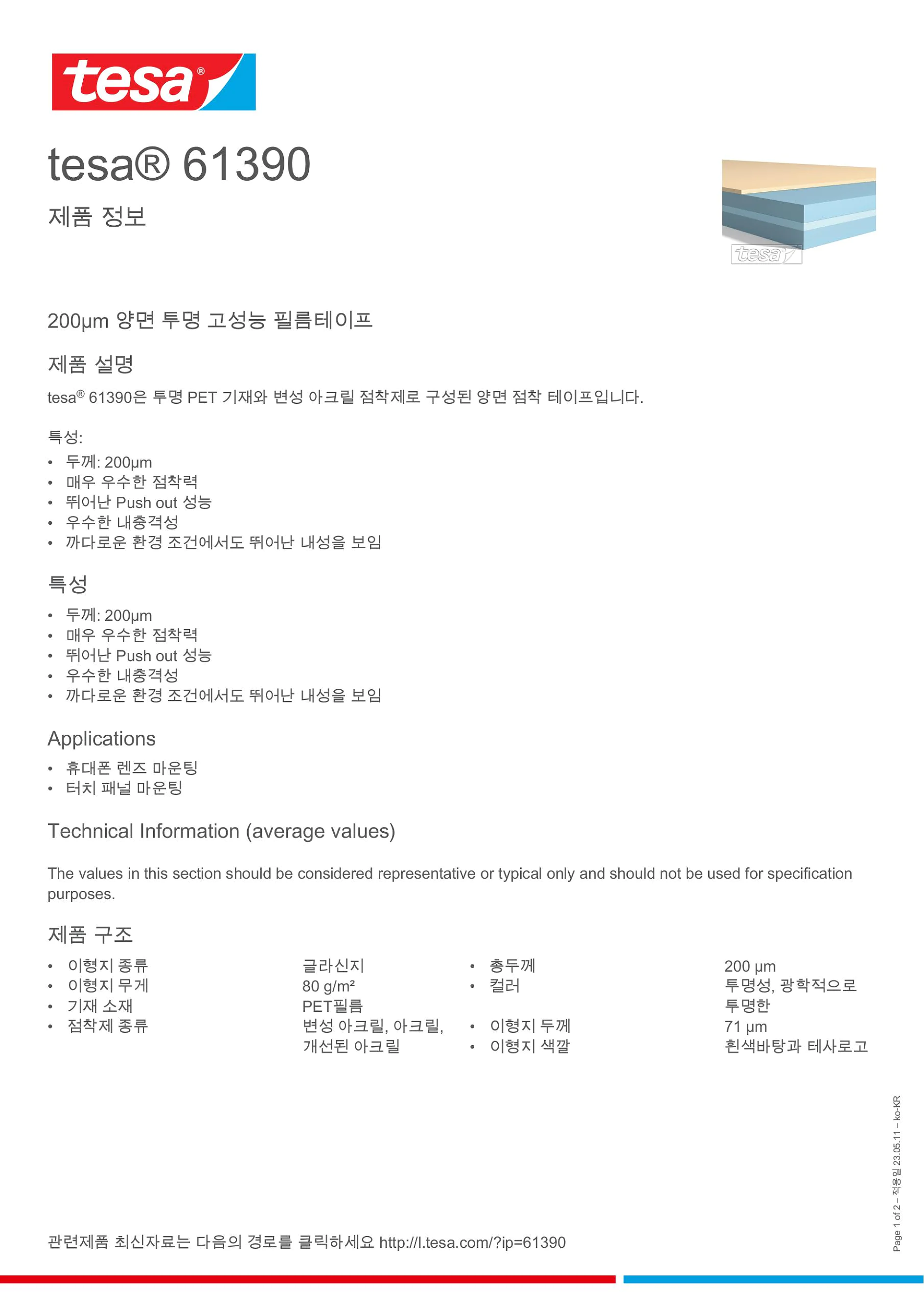

tesa® 61390

200µm 양면 투명 고성능 필름테이프

제품 기능
  • 두께: 200µm
  • 매우 우수한 점착력
  • 뛰어난 Push out 성능
모든 제품 기능

Product description

tesa® 61390은 투명 PET 기재와 변성 아크릴 점착제로 구성된 양면 점착 테이프입니다.

특성:
  • 두께: 200µm
  • 매우 우수한 점착력
  • 뛰어난 Push out 성능
  • 우수한 내충격성
  • 까다로운 환경 조건에서도 뛰어난 내성을 보임

제품 기능

  • 두께: 200µm
  • 매우 우수한 점착력
  • 뛰어난 Push out 성능
  • 우수한 내충격성
  • 까다로운 환경 조건에서도 뛰어난 내성을 보임

Application Fields

  • 휴대폰 렌즈 마운팅
  • 터치 패널 마운팅

Product Construction

이형지 종류 글라신지
이형지 무게 80 g/m²
기재 소재 PET필름
점착제 종류 변성 아크릴, 아크릴, 개선된 아크릴
총두께 200 µm
컬러 투명성, 광학적으로 투명한
이형지 두께 71 µm
이형지 색깔 흰색바탕과 테사로고

Properties / Performance Values

연신률 50 %
인장강도 20 N/cm
내습성 very good
단기간 온도저항 200 °C
장기간 온도저항 100 °C
정적 전단응력 (23°C) good
정적 전단응력 (40°C) good
노후성 (UV) very good
Tack medium, good

Adhesion to Values

ABS점착력 (초기) 10 N/cm
ABS점착력 (14일 경과) 13.3 N/cm
유리점착력 (초기) 14.3 N/cm
유리점착력 (14일 경과) 16.6 N/cm
PC점착력 (초기) 11.6 N/cm
PC점착력 (14일 경과) 19.5 N/cm
PMMA점착력 (초기) 14.2 N/cm
PMMA점착력 (14일 경과) 19.2 N/cm
Steel점착력 (초기) 14.3 N/cm
Steel점착력 (14일 경과) 17 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
