Thermal conductivity measured by ASTM D5470
tesa® 60744
tesa® 60744 50 μm thermal management tape
제품 기능
- High thermal conductivity in z-direction
- Strong bonding strength
- Excellent surface wet-out
Product description
tesa® 60744 is a thermal management transfer tape which is designed for high thermal conductivity with strong mounting on heat source or heat spreading material such as display, MLB, and components in electronics devices.
제품 세부 사항 및 사양
제품 기능
- High thermal conductivity in z-direction
- Strong bonding strength
- Excellent surface wet-out
- Easy handling
- Thin design
- Excellent electrical insulation
Application Fields
- Component mounting wherever heat transfer is needed
- Heat dissipation from MLB / FPC to heat spreader
- Display mounting and heat transfer to other substrate
- Vapor chamber or heat pipe mounting
- Antenna mounting
- Graphite sheet mounting

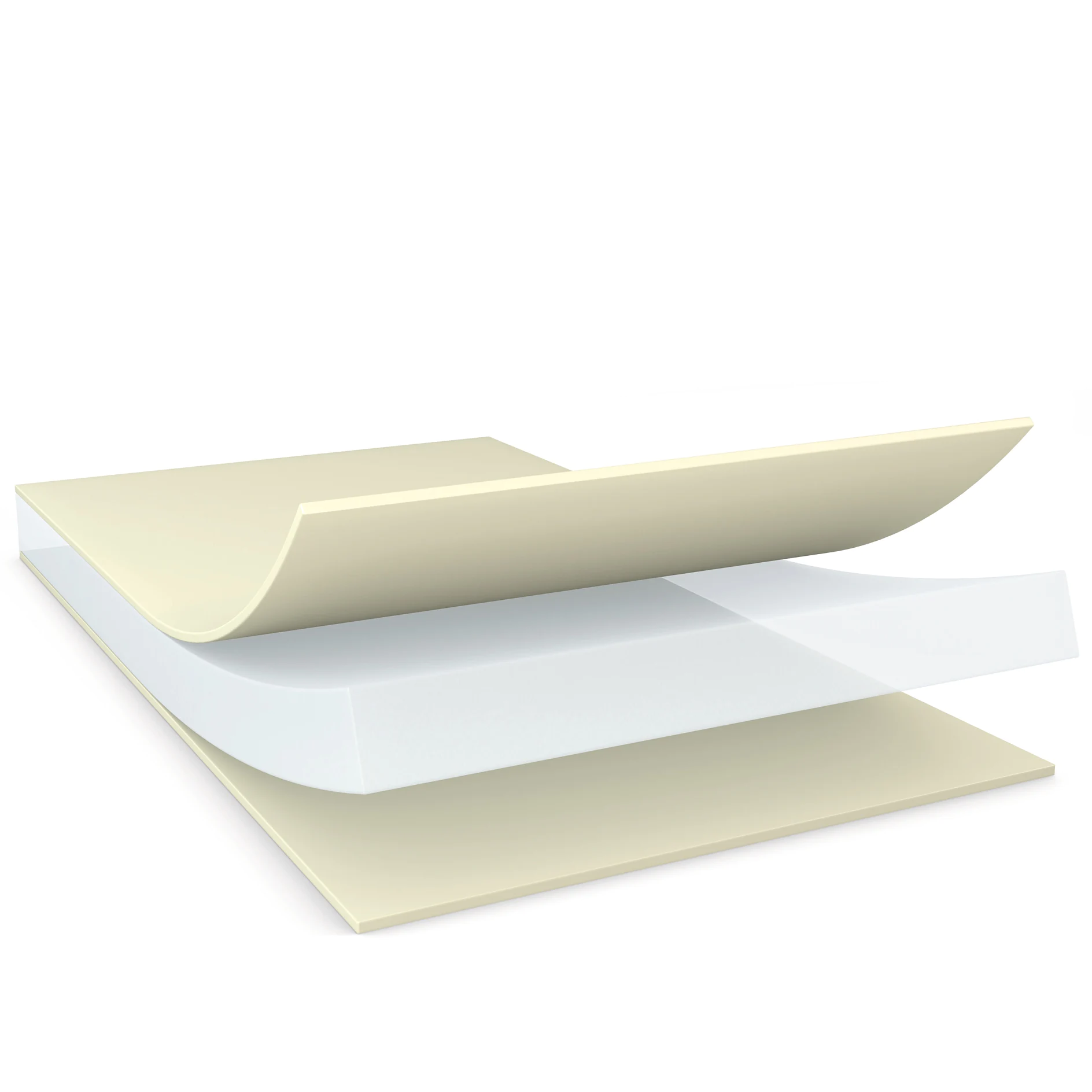

Product Construction
| 기재 소재 | 없음 |
|---|---|
| 이형지 색깔 | 투명성 |
| 이형지 종류 | PET필름 |
| 점착제 종류 | 아크릴 |
| 총두께 | 50 µm |
| 컬러 | 흰색 |
Product Construction
| 기재 소재 | 없음 |
|---|---|
| 이형지 색깔 | 투명성 |
| 이형지 종류 | PET필름 |
| 점착제 종류 | 아크릴 |
| 총두께 | 50 µm |
| 컬러 | 흰색 |
Properties / Performance Values
| Breakdown voltage | 2.9 KV |
|---|---|
| 습윤성 | 84 % |
| 열 전도성 z-축 방향 | 1 W/mK |
Properties / Performance Values
| Breakdown voltage | 2.9 KV |
|---|---|
| 습윤성 | 84 % |
| 열 전도성 z-축 방향 | 1 W/mK |
Adhesion to Values
| Steel점착력 (초기) | 5 N/cm |
|---|
Adhesion to Values
| Steel점착력 (초기) | 5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.
