tesa® 58394

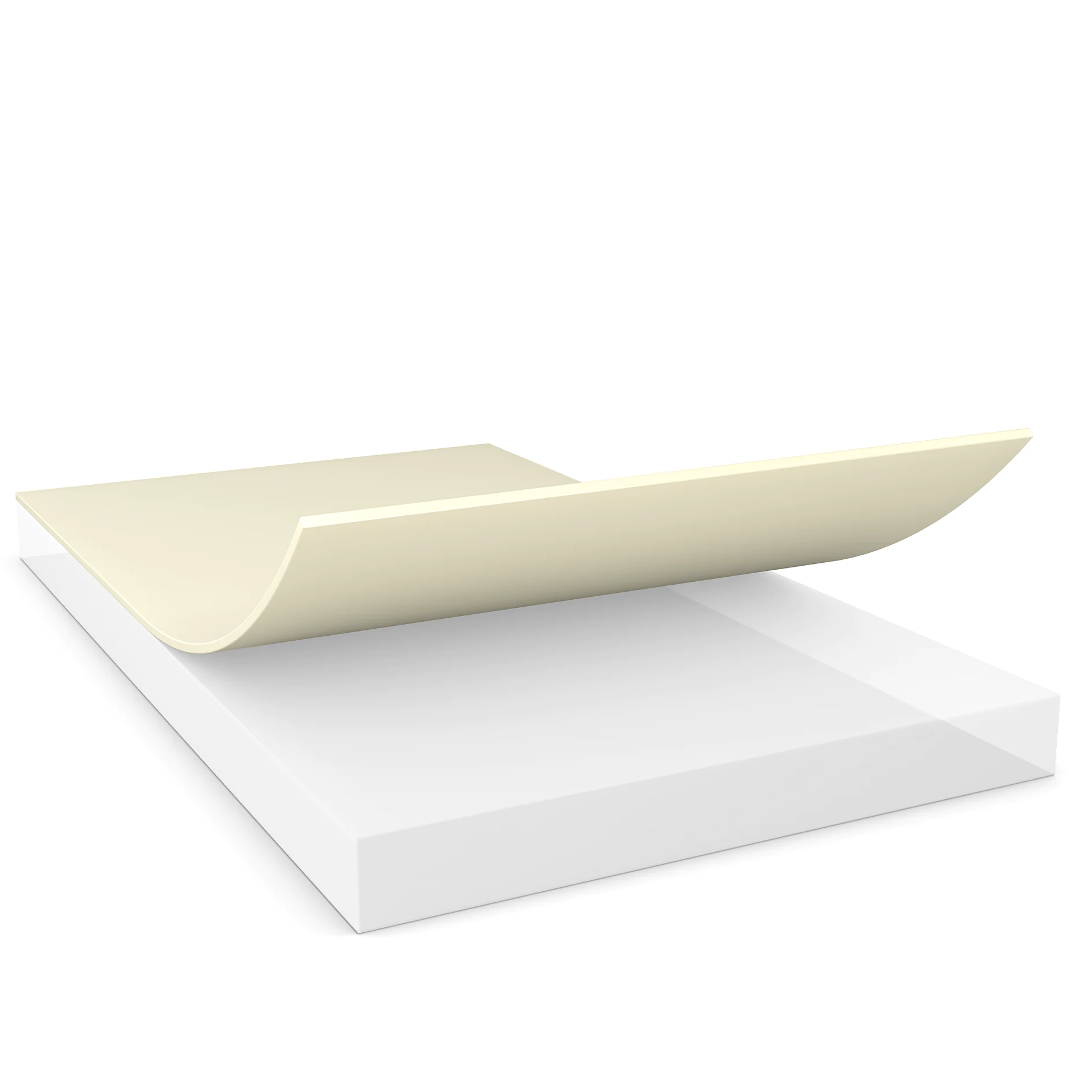

tesa® 58394 125 µm thermal conductive tape
제품 기능
- This product is equipped with special acrylic adhesive that provide certain thermal conductivity when it applies between heat source and heat sink.
- It has good performance on polar substrates.
Product description
tesa® 58394 is a 125um thermally conductive tape.
제품 세부 사항 및 사양
제품 기능
- This product is equipped with special acrylic adhesive that provide certain thermal conductivity when it applies between heat source and heat sink.
- It has good performance on polar substrates.
Application Fields
Applied between heat source and heat sink to transfer the heat.
- Battery module cooling plate mounting
- Power electronics unit
- FPC and PCB
| 기재 소재 | 없음 |
|---|---|
| 이형지 두께 | 127 µm |
| 이형지 색깔 | 흰색 |
| 이형지 종류 | PE 코팅된 직물 |
| 점착제 종류 | 아크릴 |
| 총두께 | 125 µm |
| 컬러 | 흰색 |
| 난연성 | V2 |
|---|---|
| 온도 저항(125°C) | very good |
| 내온성 (-40°C) | very good |
| Breakdown voltage | 3.5 KV |
| 이형지 제거 | 간단함 |
| 열 전도성 z-축 방향 | 1.3 W/mK |
| Hardness - Shore 00 | 60 STK |
| 단기간 온도저항 | 150 °C |
| 밀도 | 1.8 g/cm³ |
| 알루미늄점착력 (3일 경과) | 4.8 N/cm |
|---|---|
| Steel점착력 (초기) | 2 N/cm |
| Steel점착력 (20분 @ RT, 90°) | 2 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
