tesa® 60333
tesa® 60333 30μm 단면 무광 블랙 단면 전기 전도성 구리 테이프
제품 기능
- 탁월한 무광 블랙 외관
- XYZ 방향의 탁월한 전기 전도성
- 탁월한 EMI 차폐 성능
Product description
tesa® 60333은 무광 블랙 단면 전기 전도성 구리 테이프입니다. 전기 전도성 무광 블랙 구리 기재와 단면 전도성 점착 코팅층으로 구성됩니다. 디스플레이, FPC, MLB 및 기타 부품 애플리케이션을 위한 EMI 차폐용으로 디자인되었습니다.
제품 세부 사항 및 사양
제품 기능
- 탁월한 무광 블랙 외관
- XYZ 방향의 탁월한 전기 전도성
- 탁월한 EMI 차폐 성능
- 우수한 본딩 강도
- 구리 기재를 통한 우수한 열 확산 성능
Application Fields
- 디스플레이 커버링 및 차폐
- MLB 차폐
- FPC 차폐
- 무광 블랙 차폐 및 부품 커버링
기술 정보(평균값)
이 단원에 표시된 값은 대표적 또는 일반적인 것으로 간주되어야 하며 사양을 목적으로 사용되어서는 안 됩니다.

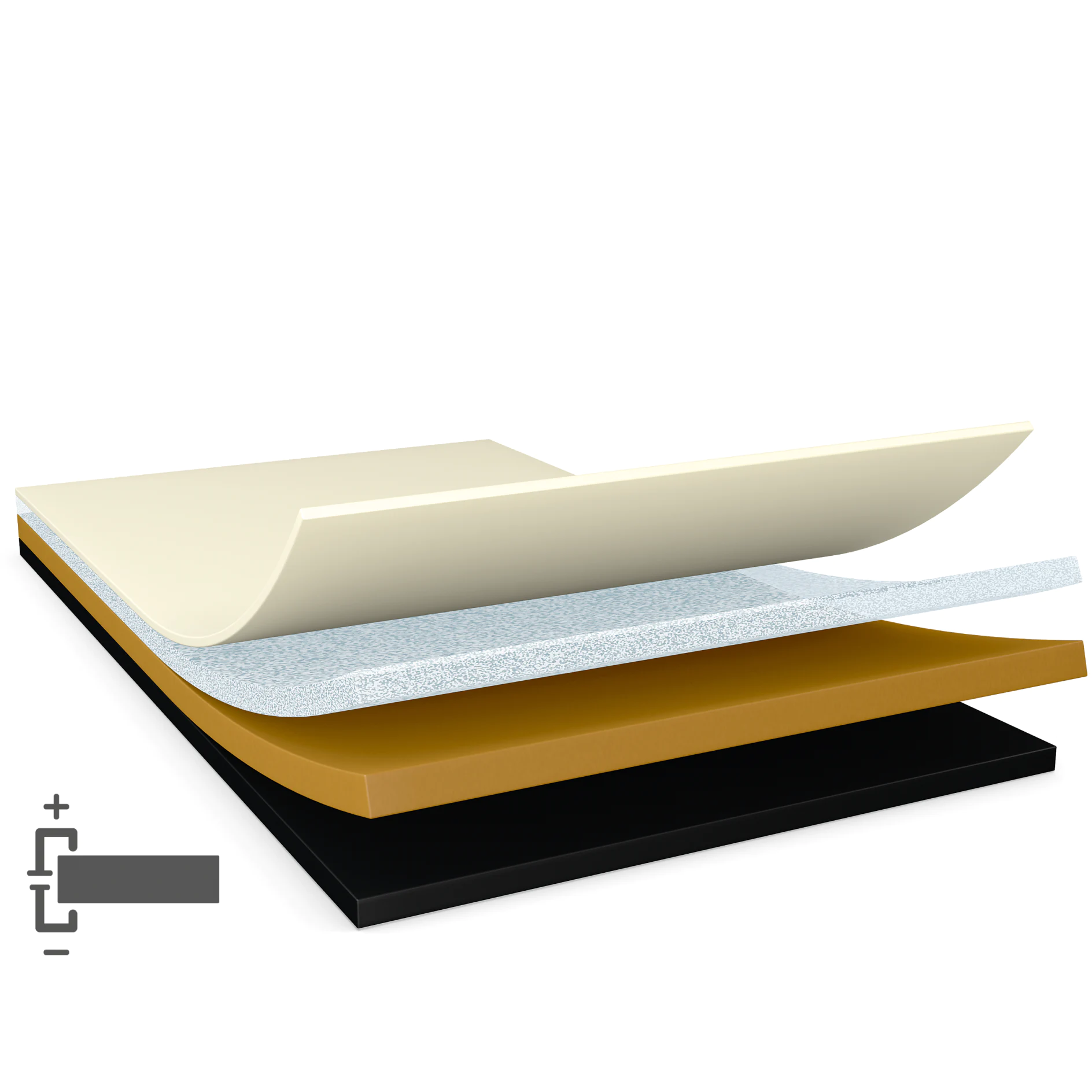

Product Construction
기재 소재 | black-coated copper |
---|---|
이형지 두께 | 100 µm |
이형지 색깔 | 투명 |
이형지 종류 | PET필름 |
점착제 종류 | 전도성 아크릴 |
총두께 | 30 µm |
컬러 | matte black |
Product Construction
기재 소재 | black-coated copper |
---|---|
이형지 두께 | 100 µm |
이형지 색깔 | 투명 |
이형지 종류 | PET필름 |
점착제 종류 | 전도성 아크릴 |
총두께 | 30 µm |
컬러 | matte black |
Properties / Performance Values
광택도(60°) | 1.1 GU |
---|---|
표면 저항 x-y-축 방향 (기재) | 0.1 Ohm / square |
표면 저항 x-y-축 방향 (점착제) | 0.1 Ohm / square |
z-축 방향 접촉저항 (초기) | 0.05 Ohm / square inch |
Properties / Performance Values
광택도(60°) | 1.1 GU |
---|---|
표면 저항 x-y-축 방향 (기재) | 0.1 Ohm / square |
표면 저항 x-y-축 방향 (점착제) | 0.1 Ohm / square |
z-축 방향 접촉저항 (초기) | 0.05 Ohm / square inch |
Adhesion to Values
Steel점착력 (초기) | 4 N/cm |
---|
Adhesion to Values
Steel점착력 (초기) | 4 N/cm |
---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.
