tesa® 50400

양면 케이블 장착 테이프 (low VOC)

tesa-automotive-cable-mounting-spool-50400

tesa-50400-double-sided-cable-mounting-504000000000

tesa-automotive-cable-mounting-keyvisual-ds-web-image-002

tesa-automotive-cable-mounting-keyvisual-dsss-web-image-001

tesa-automotive-cable-mounting-application-web-image-001

tesa-automotive-cable-mounting-application-web-image-002

tesa-automotive-cable-mounting-application-web-image-004

tesa-automotive-cable-mounting-crashpad-web-image-01

tesa-automotive-cable-mounting- crashpad-web-image-02

제품 기능

High initial peel adhesion for immediate and secure mounting of cables to headliners
Excellent bonding on rough, irregular and nonpolar surfaces
High tack

모든 제품 기능

Product description

tesa® 50400은 VOC 요구 사항을 충족하기 위해 특수 수성 아크릴 점착제로 코팅된 부직포 기재의 양면 테이프입니다.이 제품은 거칠거나 매우 불규칙한 표면에 질 접합하도록 특별히 설계되었으며 다양한 자동차 실내용으로 사용할 수 있습니다.

제품 세부 사항 및 사양

제품 기능

High initial peel adhesion for immediate and secure mounting of cables to headliners
Excellent bonding on rough, irregular and nonpolar surfaces
High tack
Highly conformable
High shear strength
Repositionable
Fulfills the common requirements for headliner and automotive interior applications
Low VOC (according to VDA278) - no critical substances detectable
Suitable for automatic tape applications
Suitable for complex contours and geometries
Proven application benefits compared to standard hot melt alternatives
Manual and automatic application
Seamless integration into existing production systems and setups
Decreased operator interaction, due to spools with over 1500m
Improved operator safety

Application Fields

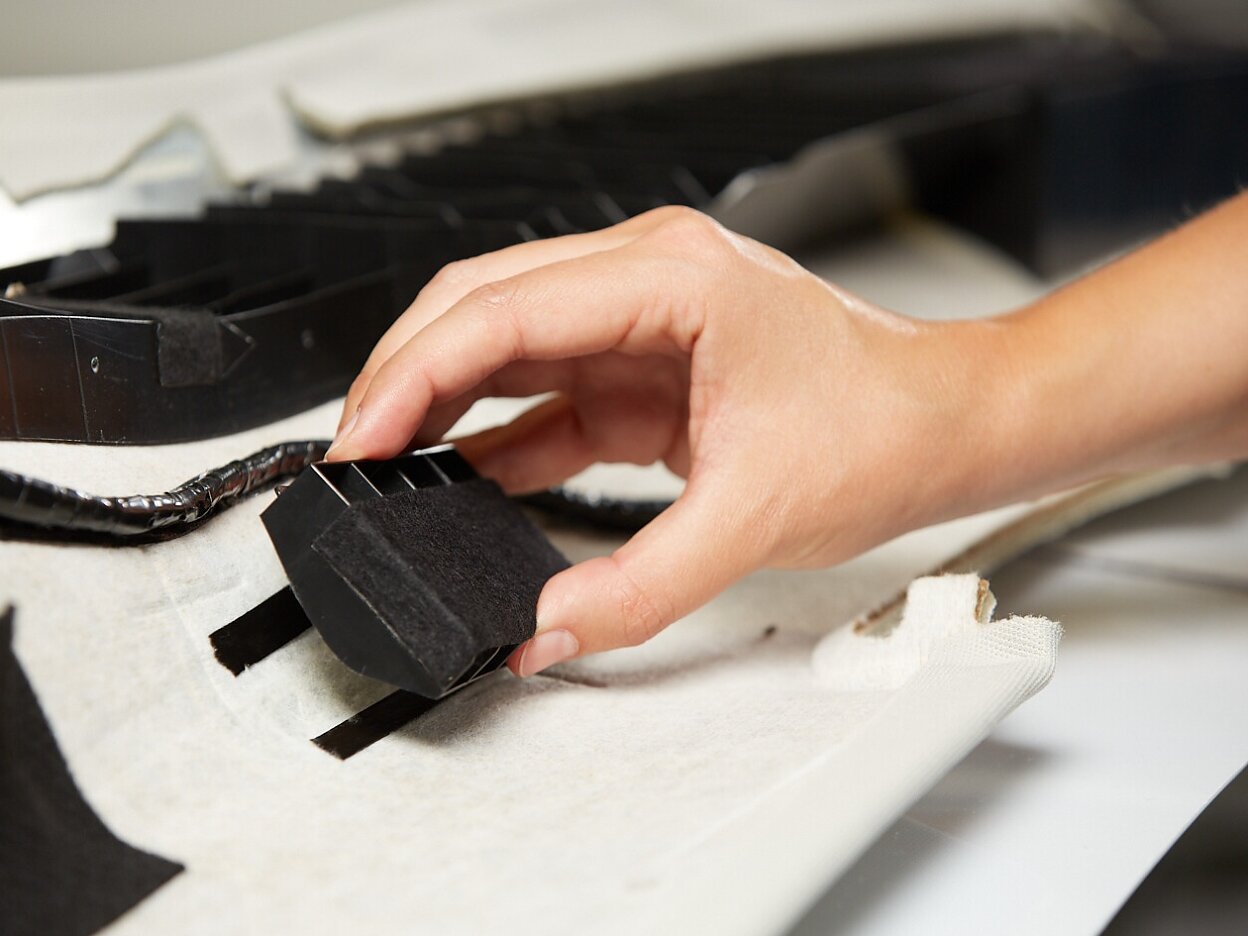

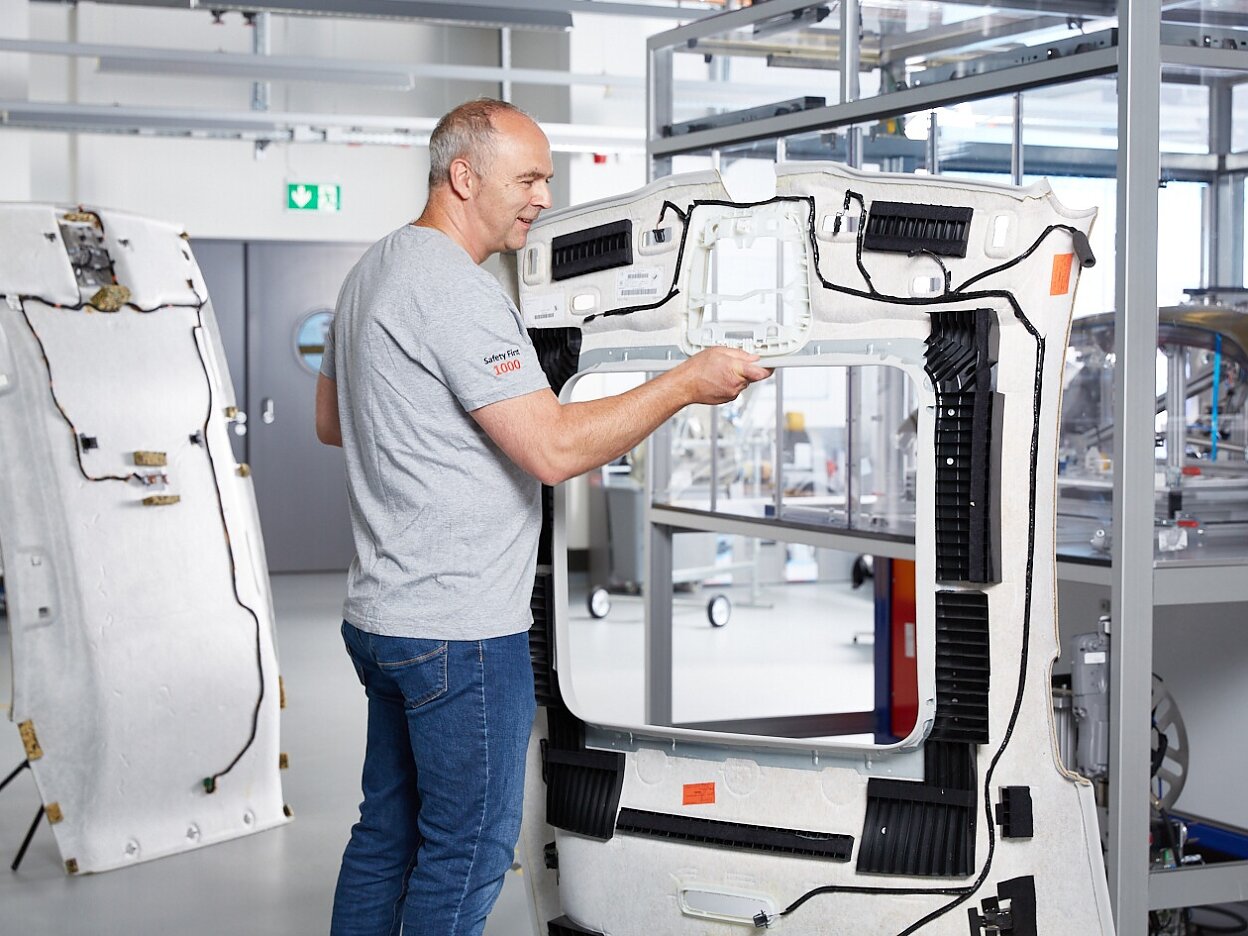

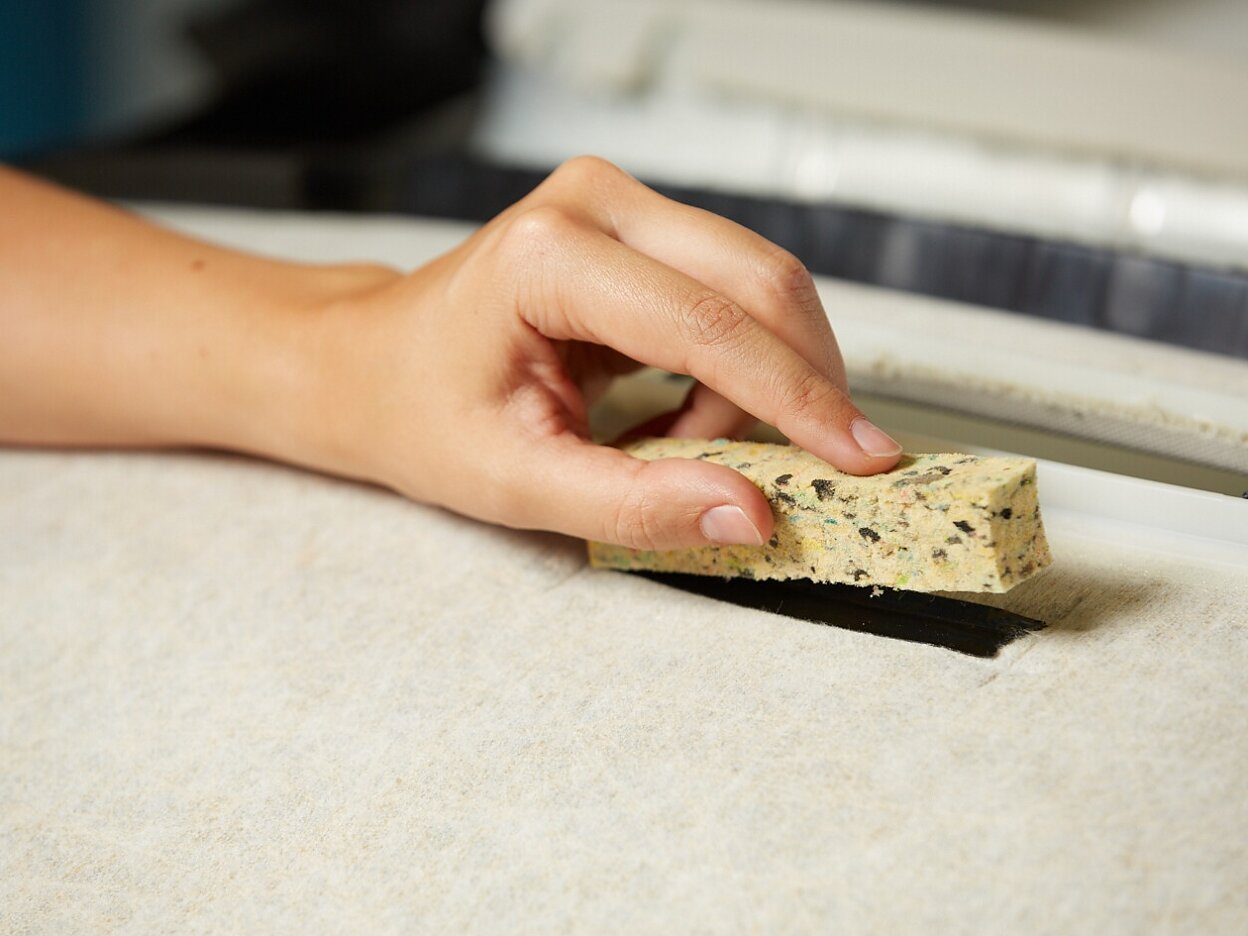

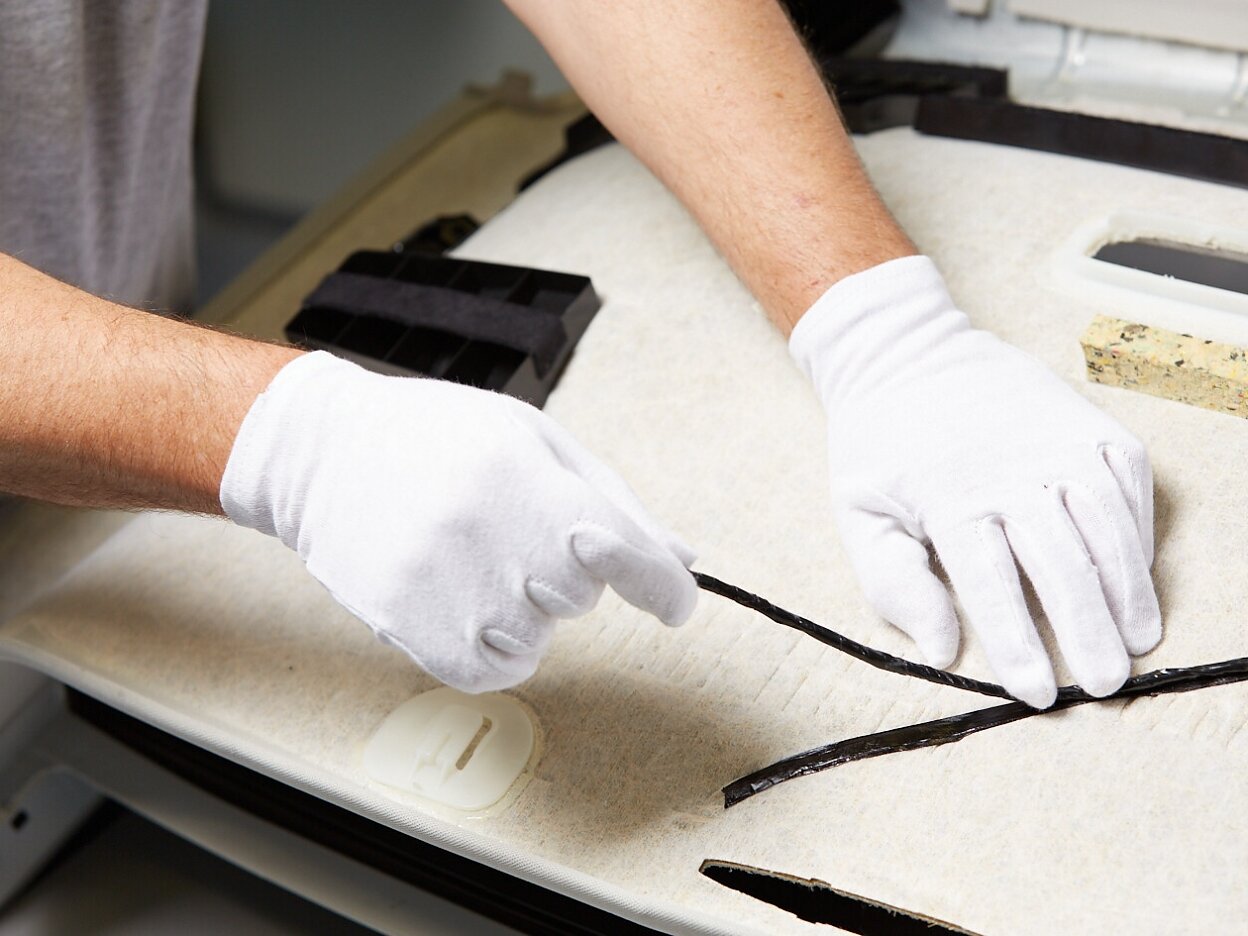

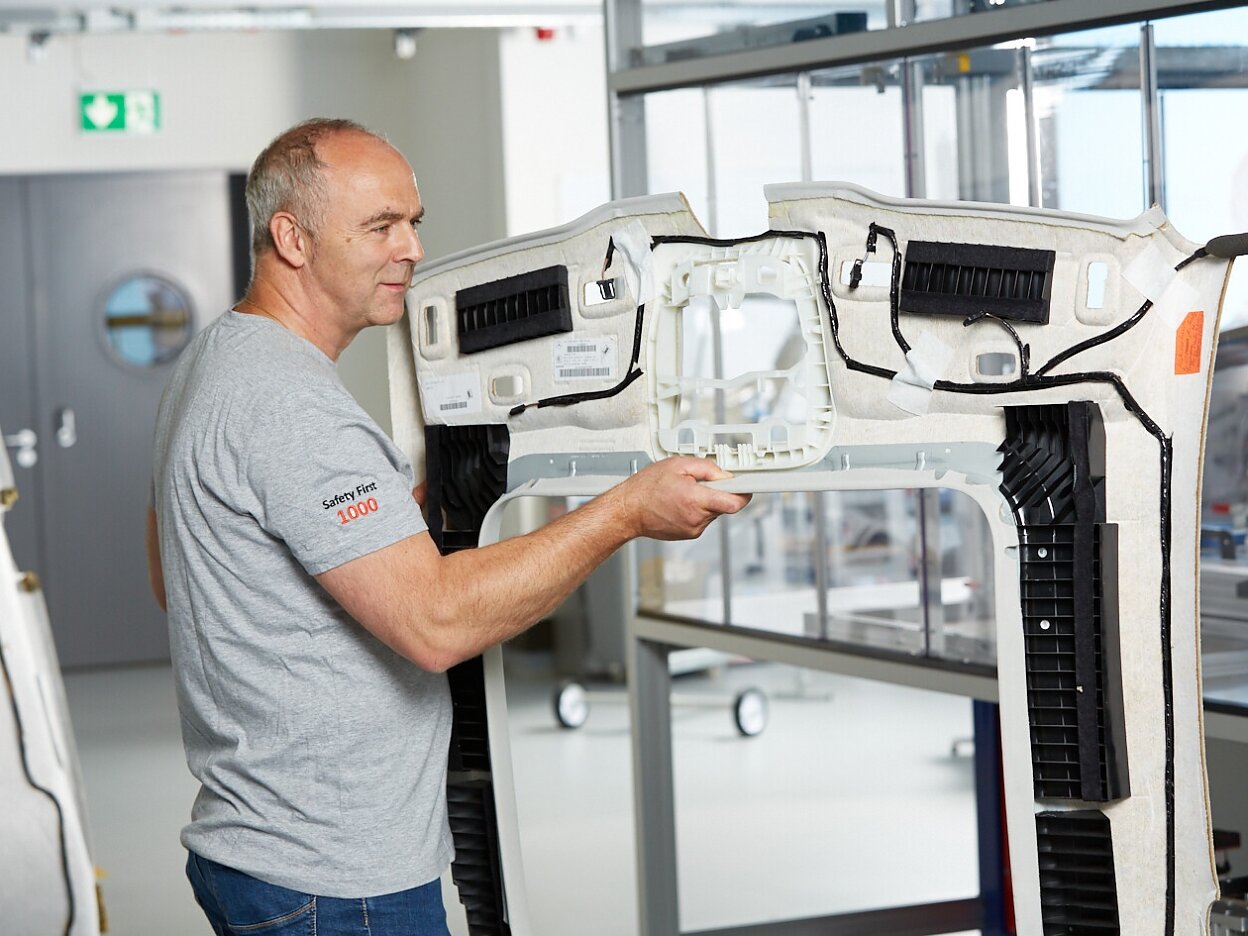

tesa^® 50400 is suitable for mounting of wire harness assemblies to automotive headliners, attaching crash pads and similar applications.

Product Construction

기재 소재	PET / 부직포
이형지 색깔	투명성
이형지 종류	PET
점착제 종류	아크릴
컬러	검정
테이프 두께	350 µm

Properties / Performance Values

연신률	35 %
인장강도	8.5 N/cm
낮은 VOC	네
거친 표면에 적합	네
Tack	very good
정적 전단응력	very good
친화성(순응성)	very good

Additional Info

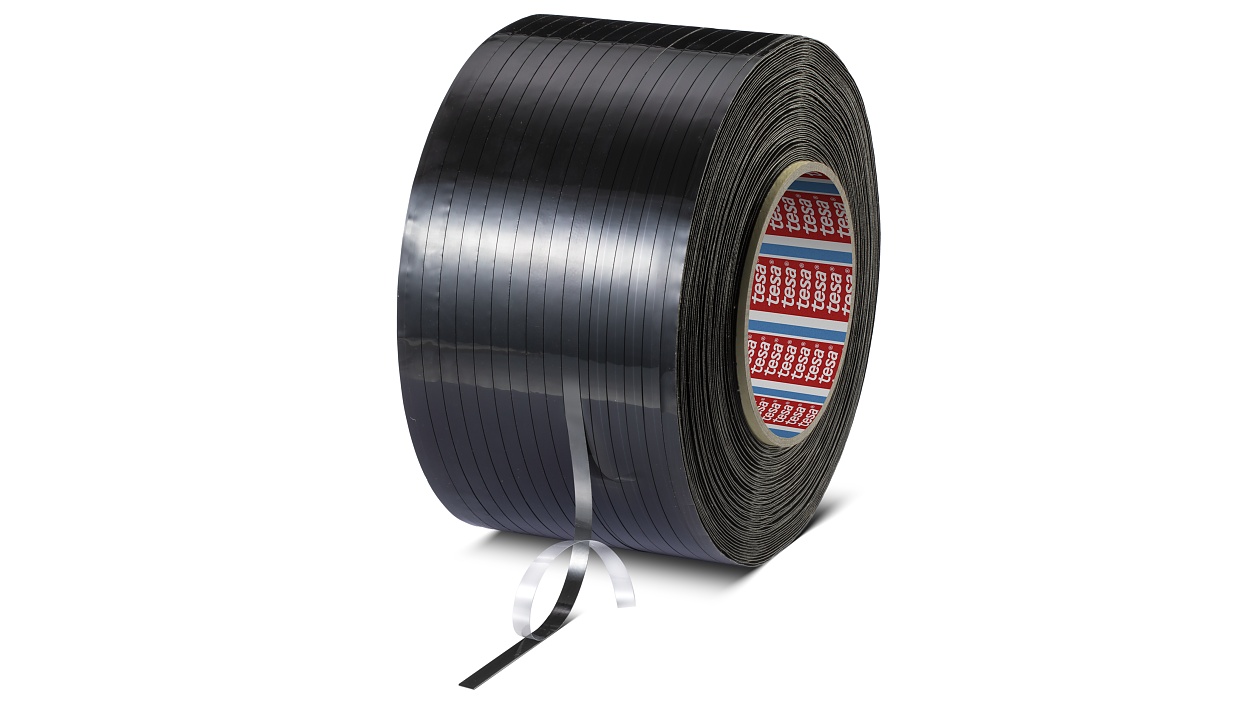

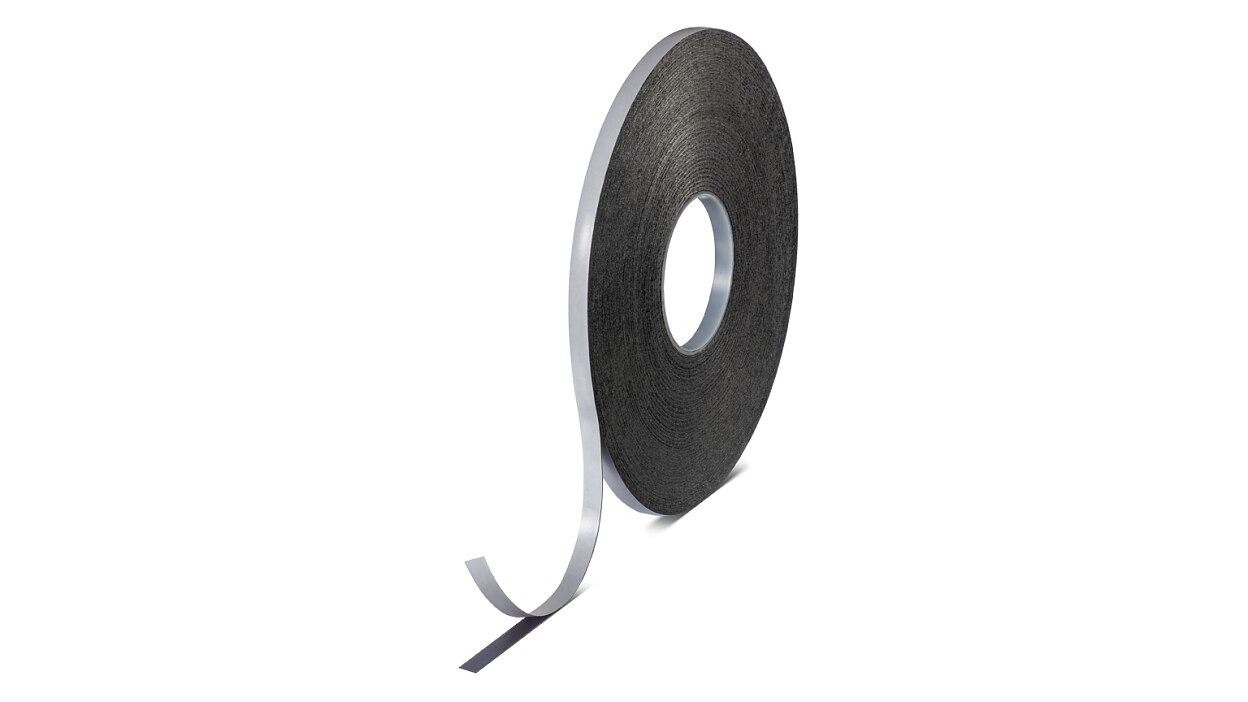

tesa^® 50400 is available as pancake roll or spool in various dimensions.
Spools with up to 3000m.
tesa Application Solution Center offers tape, application and automation support for customized equipment and application tools.

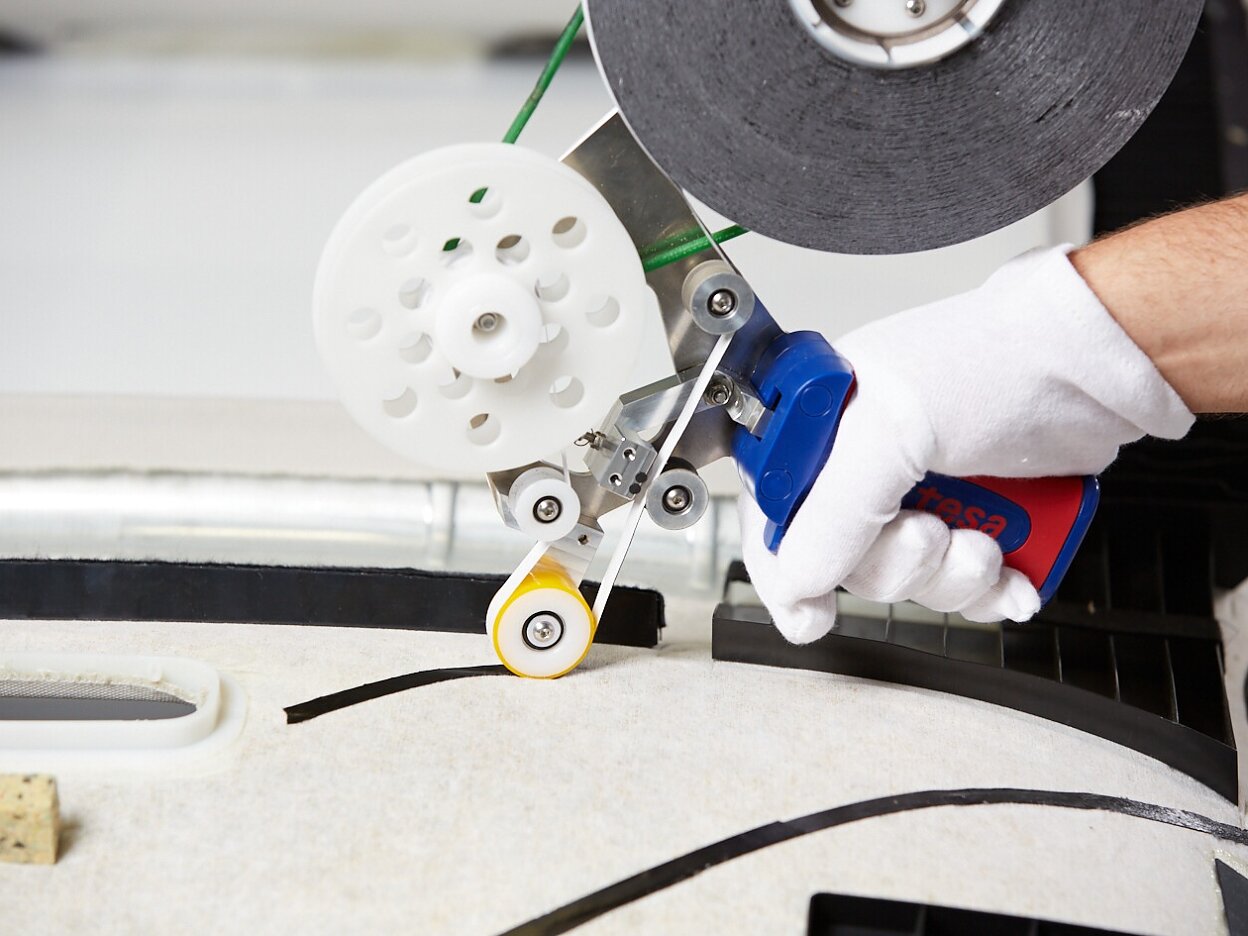

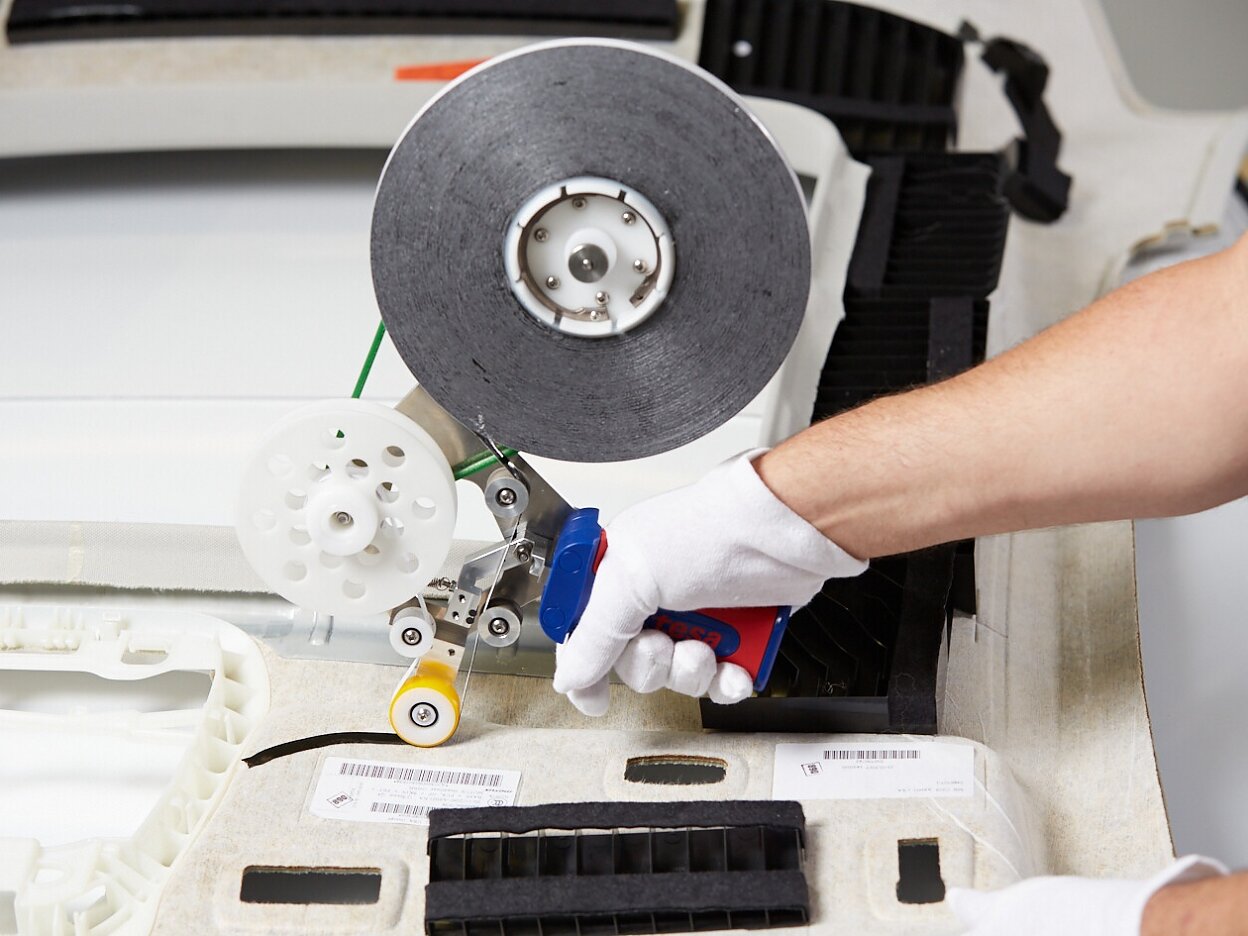

For tesa^® 50400 hand application tools and an automation concept with industrial robots is available.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.

Product information_tesa® 50400_ko-KR 79.9 kB
