Additional Info
Standard widths: 19, 25 mm
Standard lengths: 25 m
Further dimensions are available upon request
Standard core diameter: 38 mm
Standard lengths: 25 m
Further dimensions are available upon request
Standard core diameter: 38 mm

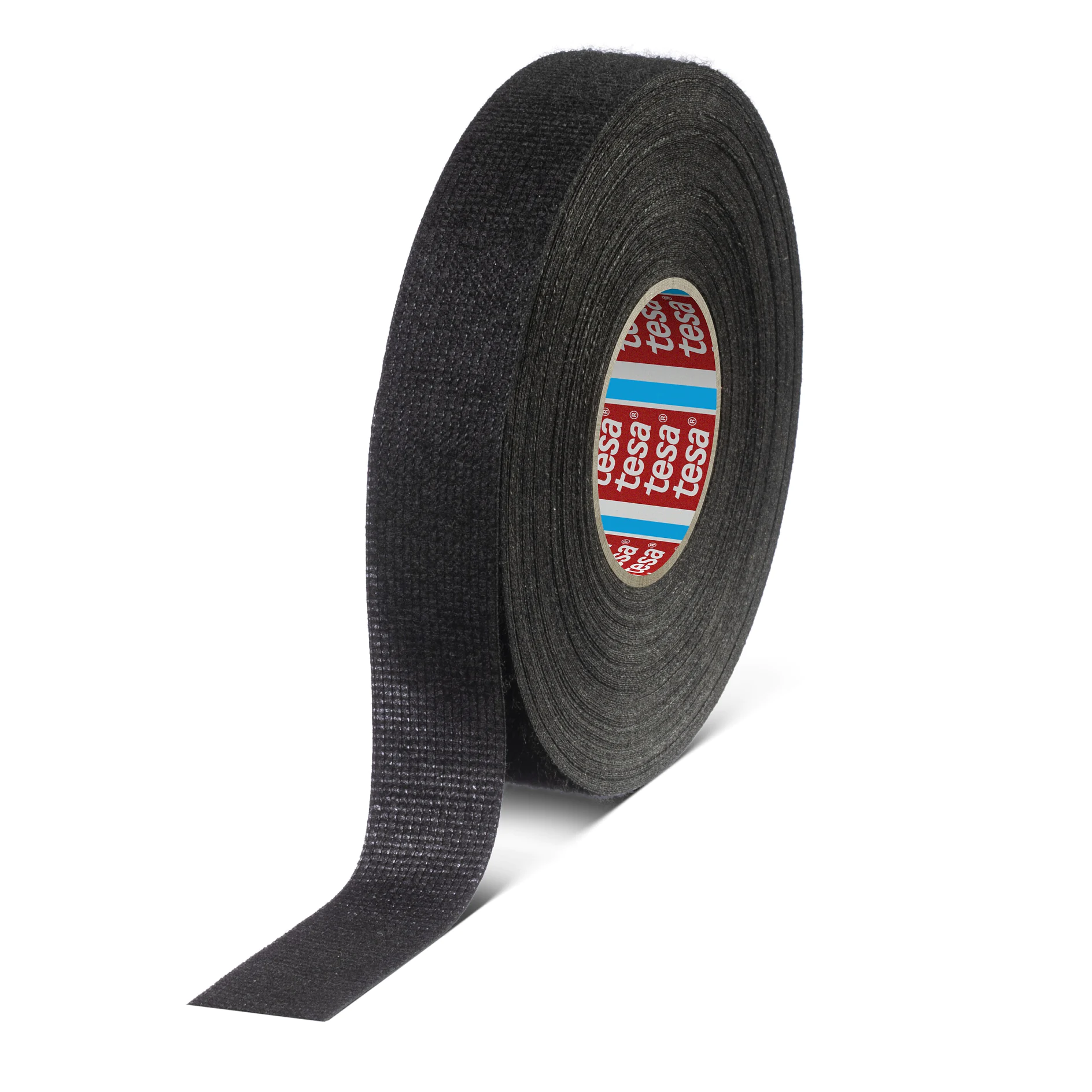

tesa® 51628
PET fleece tape for flexibility and noise damping
Product description
tesa® 51628 is a PET fleece wire harness tape with an acrylic adhesive.
Major Features:
- Temperature resistant 125°C/3000h
- Noise damping
- Abrasion resistant
- Handtearable
Color: Black
Product details and specifications
Application Fields
tesa® 51628 is designed for the passenger compartment, providing flexibility and noise damping.
Product Construction
| Backing material | PET fleece |
|---|---|
| Total thickness | 270 µm |
| Type of adhesive | acrylic |
Product Construction
| Backing material | PET fleece |
|---|---|
| Total thickness | 270 µm |
| Type of adhesive | acrylic |
Properties / Performance Values
| Elongation at break | 20 % |
|---|---|
| Tensile strength | 40 N/cm |
| Noise damping (LV312) | Class C |
| Temperature resistance min. | -40 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Unwind force (roll width ≤ 9mm) | 9 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 9 N/roll (30 m/min) |
| Temperature resistance max. | 125 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
Properties / Performance Values
| Elongation at break | 20 % |
|---|---|
| Tensile strength | 40 N/cm |
| Noise damping (LV312) | Class C |
| Temperature resistance min. | -40 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Unwind force (roll width ≤ 9mm) | 9 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 9 N/roll (30 m/min) |
| Temperature resistance max. | 125 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
Adhesion to Values
| Adhesion to Steel | 3.5 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 3.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
