tesa® 51616

Thick PET fleece tape for high noise damping


Product Features
  • High noise damping
  • High abrasion resistance
  • Handtearable

Product description

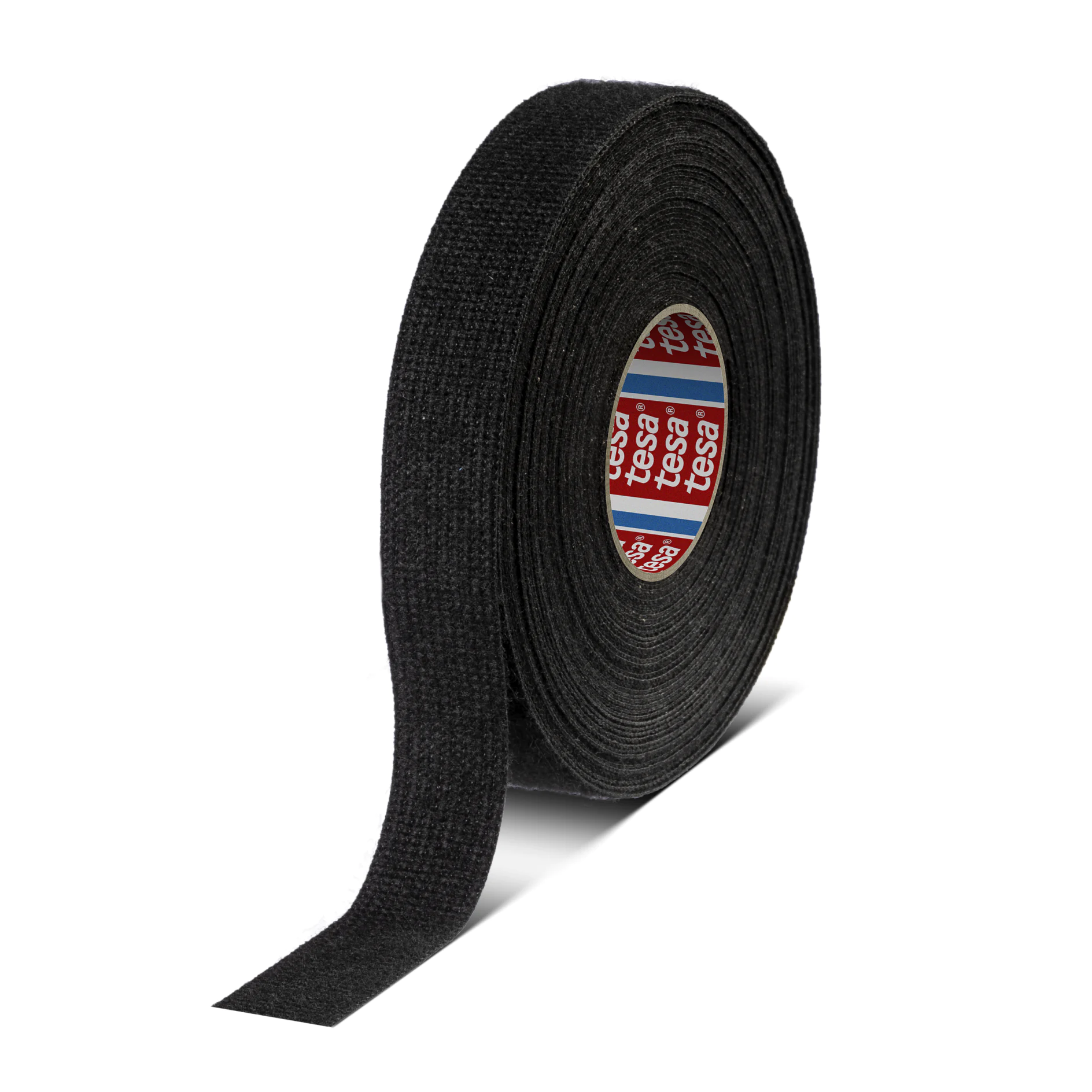

tesa® 51616 is a PET fleece wire harness tape with a rubber based adhesive.

Color: Black


Product details and specifications

Product Features

  • High noise damping
  • High abrasion resistance
  • Handtearable

Application Fields

tesa® 51616 is designed for the passenger compartment, providing high noise damping.
Backing material PET fleece
Total thickness 650 µm
Type of adhesive rubber based
Elongation at break 50 %
Tensile strength 30 N/cm
Unwind force (roll width ≤ 9mm) 12 N/roll (30 m/min)
Noise damping (LV312) Class D
Abrasion resistance (10mm mandrel, LV312) Class D
Temperature resistance min. -40 °C
Unwind force (roll width > 9mm) 12 N/roll (30 m/min)
Abrasion resistance (5mm mandrel, LV312) Class C
Temperature resistance max. 105 °C
Adhesion to Steel 3 N/cm
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 7.5 m
  • Most combinations of width and length are possible
  • Further dimensions are available upon request

  • Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Two men in business attire engaged in discussion at an office desk with laptop and documents, indoor professional setting. (This text has been generated by AI)

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 51616 tesa® 51608 tesa® 51616 PV2 tesa® 51609 tesa® 51606 tesa® 51618 tesa® 51628 tesa® 51623 tesa® 51626 tesa® Sleeve 51026 PV9 tesa® 51036 OR
Total thickness
650 µm
280 µm
700 µm
280 µm
800 µm
250 µm
270 µm
250 µm
1,000 µm
220 µm
Type of adhesive
rubber based
rubber based
rubber based
rubber based
rubber based
rubber based
acrylic
rubber based
acrylic
acrylic
Backing material
PET fleece
PET fleece
PET fleece
PET fleece
PET fleece
PET fleece
PET fleece
PET / non-woven
PA velour
PET cloth
Temperature resistance max.
105 °C
105 °C
105 °C
105 °C
105 °C
105 °C
125 °C
105 °C
105 °C
150 °C
Adhesion to Steel
3 N/cm
3 N/cm
2.5 N/cm
3 N/cm
5.5 N/cm
3 N/cm
3.5 N/cm
2 N/cm
3.1 N/cm
5.5 N/cm
Temperature resistance min.
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
Last updated on 16 Apr 2024
