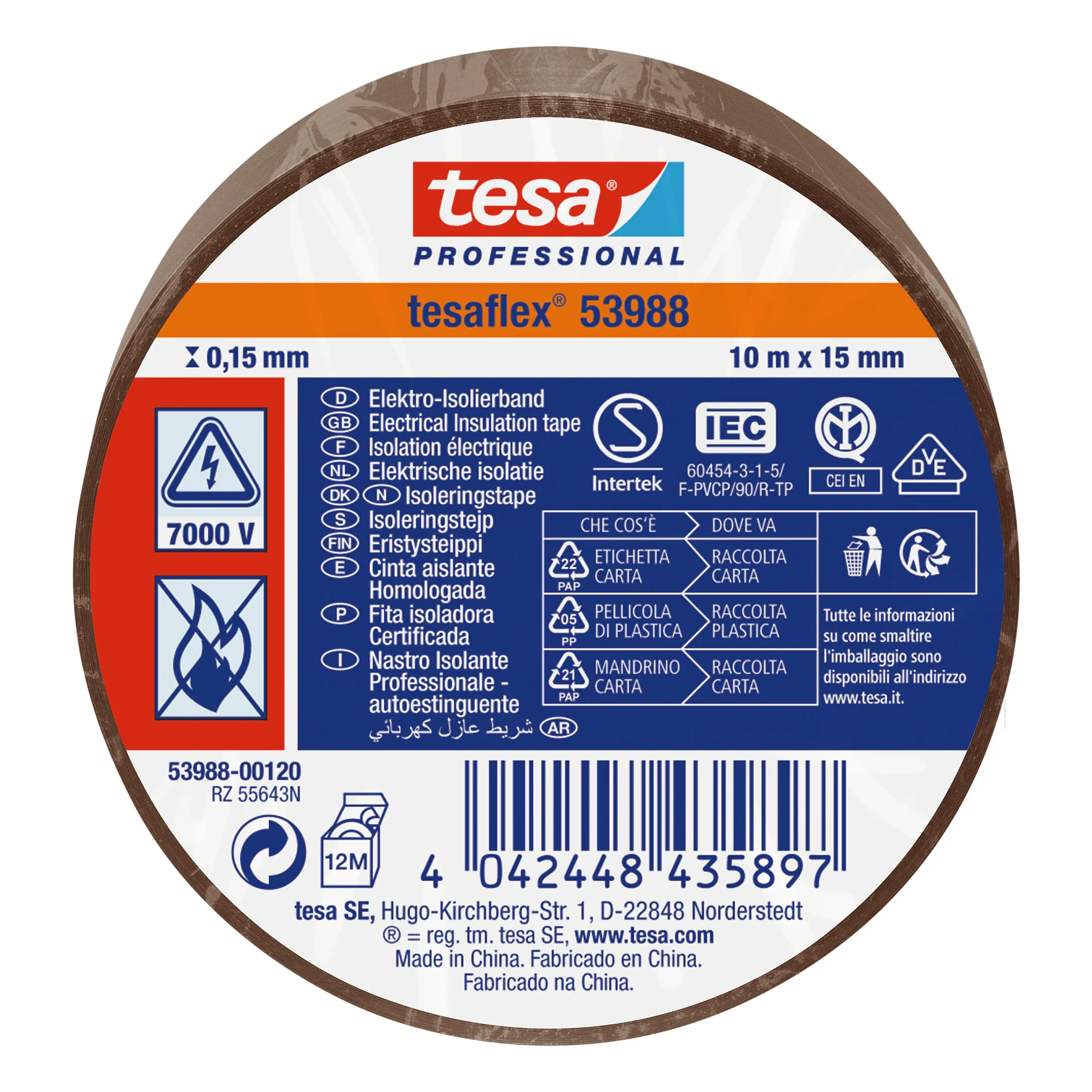

tesa® Professional 53988 tesaflex Electrical Insulating Tape
tesaflex 53988 Soft PVC Insulation Tape, certified according to IEC 60454-3-1 / 5 Norm
Product description
The electric insulation tape tesaflex 53988 is a reliable helper for electricians, mechanics and other handymen. It is characterized by its relatively thick base material, a high degree of flexibility and a very good adhesive performance (even on steel and at low temperatures). The PVC insulation tape is not only suited for insulating and marking wires but also for repairs and bundling. Since it is available in many colors – red, blue, brown, black, white, gray, green, yellow and yellow-green -, it can also be used as a marking adhesive tape. tesaflex 53988 is certified according to all relevant standards and can be used easily.
Product details and specifications
Application Fields
- Ideally suited for electrical applications, e.g. insulating or marking wires
- Certified according to IEC 60454-3-1 (VDE, IMQ, SEMKO), VOC-certified, RoHS 2.0 and REACH conform
- Thick backing material (150 μm)
- High dielectric breakdown voltage (7.000 V)
- Heat-resistant up to +90° C
- Available in many different colors and dimensions
Product Construction
Backing material | soft PVC |
---|---|
Total thickness | 150 µm |
Type of adhesive | natural rubber |
Product Construction
Backing material | soft PVC |
---|---|
Total thickness | 150 µm |
Type of adhesive | natural rubber |
Properties / Performance Values
Elongation at break | 150 % |
---|---|
Tensile strength | 25 N/cm |
Electrical power protection up to | 7000 V |
Tack | very good |
Temperature resistance short term | 90 °C |
Adhesive strength | Standard adhesion |
Softener resistance | good |
Ageing resistance (UV) | good |
Dielectric breakdown voltage | 7000 V |
Hand tearability | good |
Water resistance | medium |
Easy to remove | no |
Abrasion resistance | good |
Humidity resistance | good |
Properties / Performance Values
Elongation at break | 150 % |
---|---|
Tensile strength | 25 N/cm |
Electrical power protection up to | 7000 V |
Tack | very good |
Temperature resistance short term | 90 °C |
Adhesive strength | Standard adhesion |
Softener resistance | good |
Ageing resistance (UV) | good |
Dielectric breakdown voltage | 7000 V |
Hand tearability | good |
Water resistance | medium |
Easy to remove | no |
Abrasion resistance | good |
Humidity resistance | good |
Adhesion to Values
Adhesion to Steel | 2.5 N/cm |
---|
Adhesion to Values
Adhesion to Steel | 2.5 N/cm |
---|
Download the files below for more technical details and information on this product.
