tesa® 58395
tesa® 58395 250µm thermal conductive tape
Product Features
- It provides certain thermal conductivity with its thermally conductive fillers when it is applied between heat source and heat sink to transfer the heat.
- It has very good bonding performance on polar substrate.
Product description

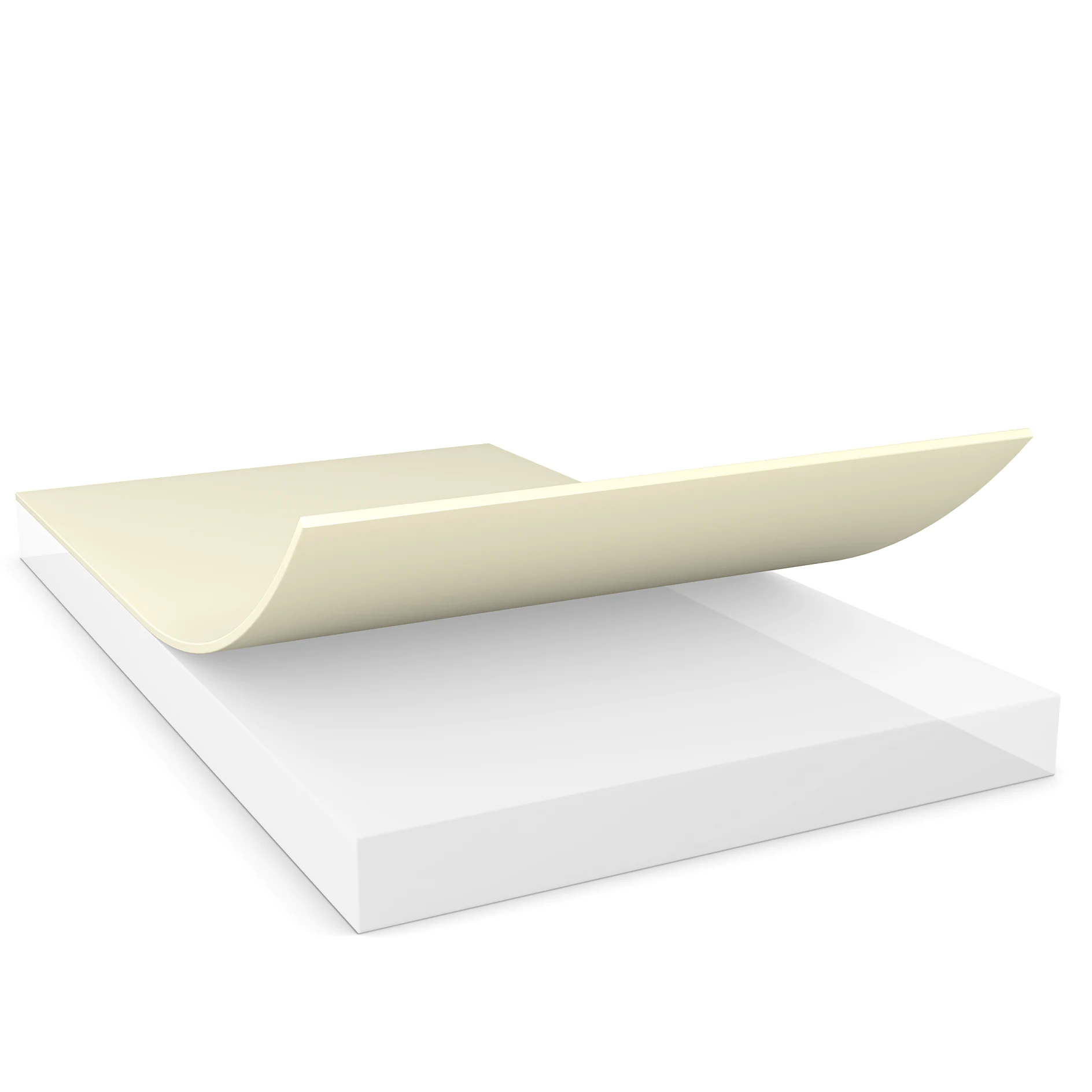

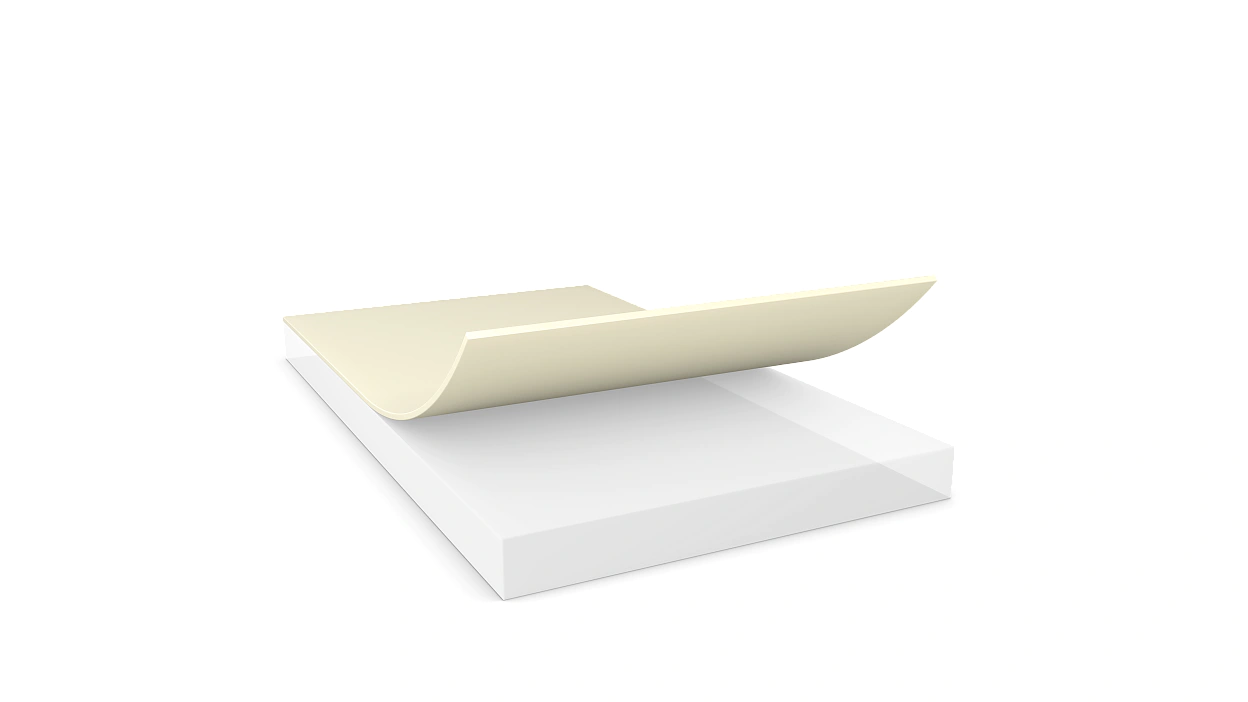

tesa® 58395 is a 250µm thermal conductive tape.
Product details and specifications
Product Features
- It provides certain thermal conductivity with its thermally conductive fillers when it is applied between heat source and heat sink to transfer the heat.
- It has very good bonding performance on polar substrate.
Application Fields
Applied between heat source and heat sink to transfer the heat.

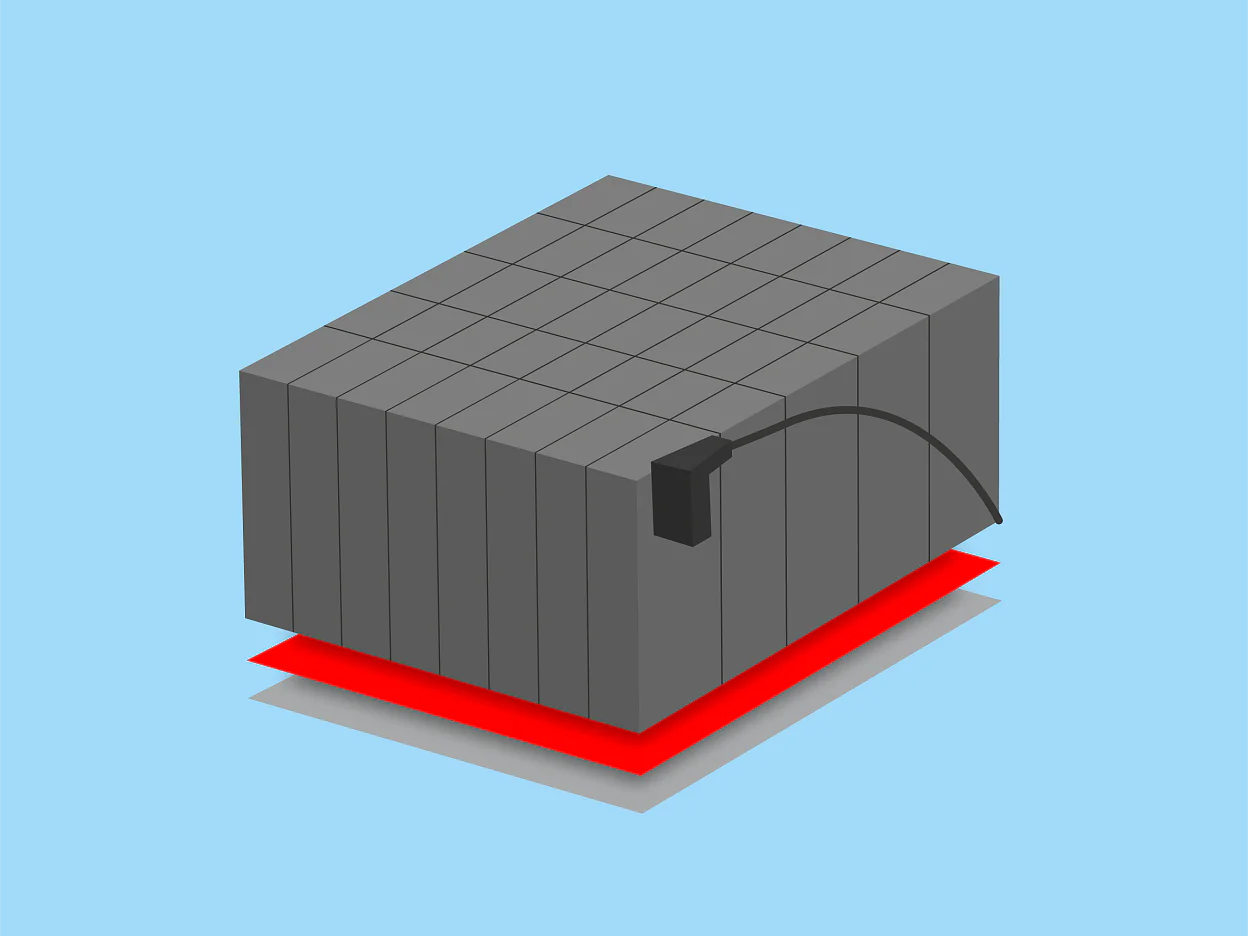

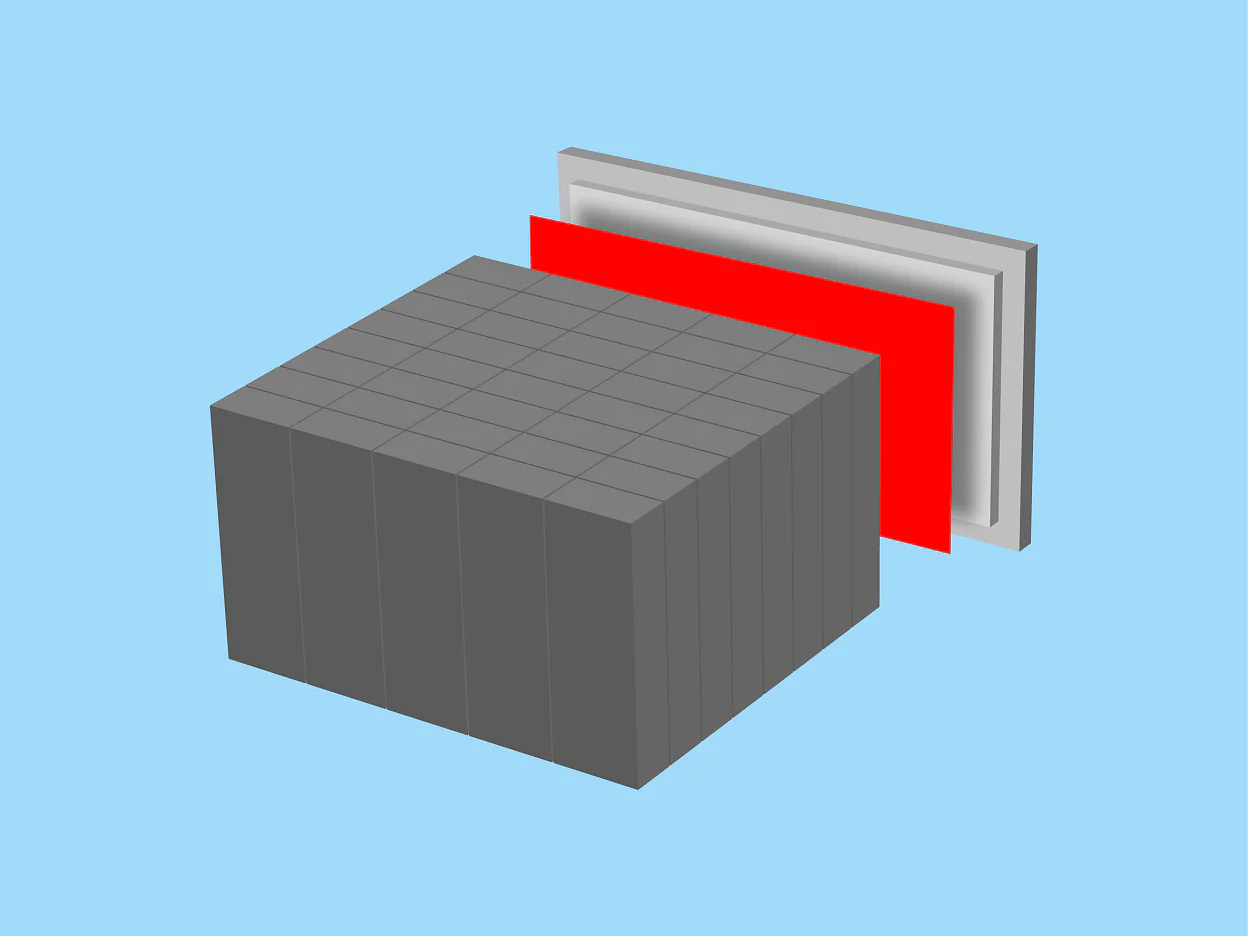

- Battery module cooling plate mounting
- Power electronics unit
- FPC and PCB
Product Construction
| Backing material | none |
|---|---|
| Color | white |
| Color of liner | white |
| Thickness of liner | 127 µm |
| Total thickness | 250 µm |
| Type of adhesive | acrylic |
| Type of liner | PE-coated paper |
Product Construction
| Backing material | none |
|---|---|
| Color | white |
| Color of liner | white |
| Thickness of liner | 127 µm |
| Total thickness | 250 µm |
| Type of adhesive | acrylic |
| Type of liner | PE-coated paper |
Properties / Performance Values
| Release of liner | easy |
|---|---|
| Temperature resistance (125°C) | very good |
| Density | 1.73 g/cm³ |
| Breakdown voltage | 4 KV |
| Flame retardancy | V2 |
| Hardness - Shore 00 | 70 STK |
| Temperature resistance short term | 150 °C |
| Temperature resistance (-40°C) | very good |
| Thermal conductivity z-direction | 0.6 W/mK |
Properties / Performance Values
| Release of liner | easy |
|---|---|
| Temperature resistance (125°C) | very good |
| Density | 1.73 g/cm³ |
| Breakdown voltage | 4 KV |
| Flame retardancy | V2 |
| Hardness - Shore 00 | 70 STK |
| Temperature resistance short term | 150 °C |
| Temperature resistance (-40°C) | very good |
| Thermal conductivity z-direction | 0.6 W/mK |
Adhesion to Values
| Adhesion to Aluminium (after 3 days) | 5.8 N/cm |
|---|---|
| Adhesion to Steel (initial) | 2.5 N/cm |
| Adhesion to Steel (20min @ RT, 90°) | 2.5 N/cm |
Adhesion to Values
| Adhesion to Aluminium (after 3 days) | 5.8 N/cm |
|---|---|
| Adhesion to Steel (initial) | 2.5 N/cm |
| Adhesion to Steel (20min @ RT, 90°) | 2.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
