Additional Info
- Standard widths: 9, 19, 25, 32 mm
- Standard length: 25 m
- Further dimensions are available upon request
- Standard core diameter: 38 mm
1 PV2: global version
2 similar to RAL 2003

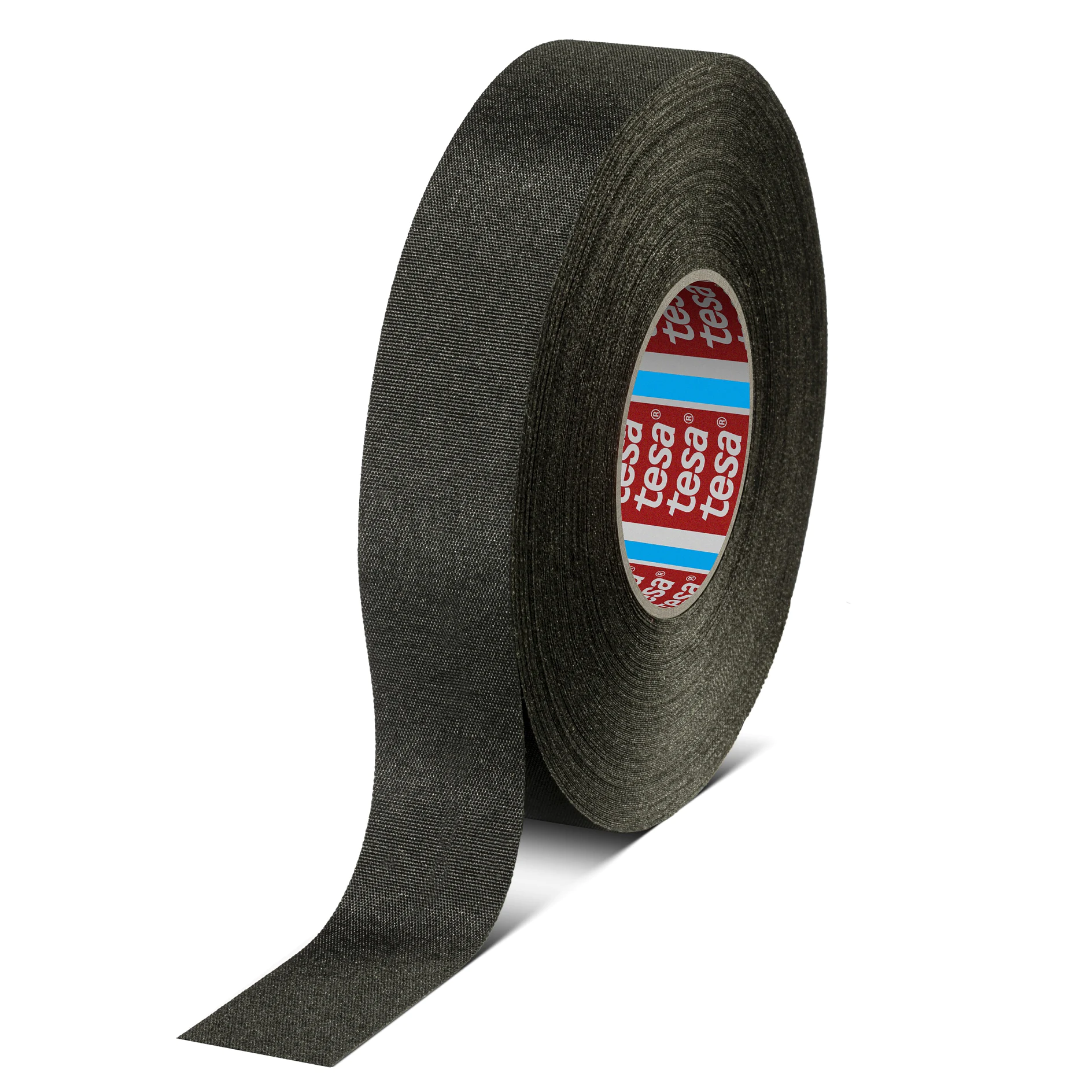

tesa® 51036 PV2
PET cloth tape for high abrasion protection
Product Features
- High abrasion resistance
- High temperature resistance
- Flag-resistance
Product description
tesa® 51036 is a flag-resistant PET cloth wite harness tape with a solvent-free advanced acrylic adhesive. With the special adhesive formula, tesa® 51036 is highly resistant to flagging and ensures secure closure. tesa® 51036 provides excellent abrasion protection of automotive harnesses and withstands high temperatures and demanding environmental conditions.
Its acrylic adhesive is compatible with halgon-free cable jacketing materials (PE/PP) and guarantees enhanced durability.
Product details and specifications
Product Features
- High abrasion resistance
- High temperature resistance
- Flag-resistance
- Excellent cable compatibility
- Resistant to ageing
- Can withstand environmental influences
- Can be used for manual and automatic application
- Flame-retardant
- Halogen-free
- Tear-resistant
- Constant unwind force
- Flexible and smooth
- Available in different colors
Application Fields
tesa® 51036 has been specifically designed for bundling and wire protection against abrasion. The main application field is the engine compartment of a vehicle, with demanding temperature-related and environmental conditions.
| Backing material | PET cloth |
|---|---|
| Total thickness | 260 µm |
| Type of adhesive | advanced acrylic |
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 275 N/cm |
| Temperature resistance min. | -40 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Temperature resistance max. | 150 °C |
| Unwind force (roll width ≤ 9mm) | 11 N/roll (30 m/min) |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Unwind force (roll width > 9mm) | 11 N/roll (30 m/min) |
| Noise damping (LV312) | Class A |
| Adhesion to Steel | 3 N/cm |
|---|
1 PV2: global version
2 similar to RAL 2003
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
