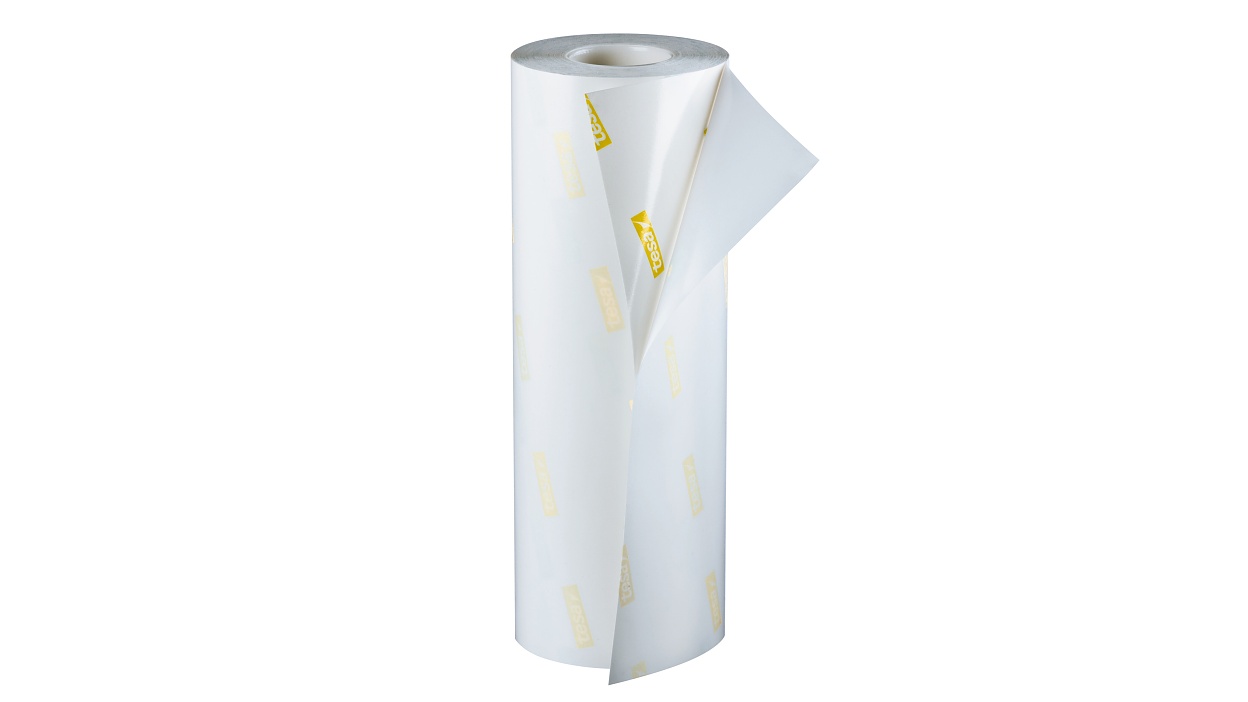

tesa® Softprint 52018 Steel Master
스크린 인쇄용 플레이트 마운팅 폼 테이프(매우 연성)
Product description
tesa® 52018 Softprint X-Soft 380µm는, 플렉소그래픽 라벨 인쇄에서 두께 1.14 mm (0.045") 또는 1.70 mm (0.067")의 포토폴리머 플레이트를 장착하는 용도로 설계된 양면 코팅 폼 테이프입니다.
tesa® 52018 Softprint X-Soft 380 µm 제품의 특성상 얇은 스크린 인쇄, 특히 경질의 디지털 플레이트에 사용하기에 이상적입니다. 또한 보다 많은 쿠션이 있어 인쇄 속도는 높이는 동시에 원하지 않는 인쇄 “바운스”의 영향은 줄이고, 지름이 짧은 실린더상에서도 플레이트를 밑으로 유지할 수 있습니다.
폼 특성
- 매우 강한 연성의 폼은 경성의 디지털 플레이트(매우 얇은 스크린 인쇄)와 함께 사용하기에 좋은 플레이트 마운팅 솔루션임
- 폼의 압착성과 복원력이 뛰어나 인쇄 품질이 매우 뛰어남
- 고속 인쇄에도 오래 지속되는 폼의 복원력
- 두께 허용 공차가 낮아 신속한 인쇄 준비와 시간 단축이 가능함
점착 특성
- 슬리브/실린더에 대한 점착성이 안정적이며 특별히 제거 관련 특성이 향상됨
- 플레이트와의 점착력이 뛰어나 모서리가 들뜨거나 플레이트가 움직이지 않게 함
추가적인 특성
- 폴리프로필렌 라이너가, 플레이트 마운팅시 에어버블이 형성되지 않게 함
- 기재 상 로고의 노란색 코드는 폼이 매우 연성임을 나타냄
제품 세부 사항 및 사양
Application Fields
tesa® 52018 Softprint x-Soft는 380µm (15mil) 카테고리의 플렉소그래픽 라벨 인쇄에서 두께 1.14mm (0.045") 또는 1.70mm (0.067")의 포토폴리머 플레이트를 장착하는 용도로 설계된 양면 코팅 폼 테이프입니다.
Product Construction
기재 소재 | PE foam with film lamination |
---|---|
이형지 종류 | PP |
점착제 종류 | 변성 아크릴 |
총두께 | 430 µm |
Product Construction
기재 소재 | PE foam with film lamination |
---|---|
이형지 종류 | PP |
점착제 종류 | 변성 아크릴 |
총두께 | 430 µm |
Properties / Performance Values
로고 칼라 | 황색 |
---|---|
경도 | 연성이 매우 강한 |
두께 범주 | 380 |
Properties / Performance Values
로고 칼라 | 황색 |
---|---|
경도 | 연성이 매우 강한 |
두께 범주 | 380 |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
이 제품에 대한 자세한 기술 세부 정보와 정보를 얻으려면 아래 파일을 다운로드하십시오.
