Product Construction
| Backing material | conductive woven |
| Color | gray |
| Color of liner | transparent |
| Thickness of liner | 23 µm |
| Total thickness | 50 µm |
| Type of adhesive | type: conductive acrylic |
| Type of liner | type: PET |
tesa® 60381
50µm double sided gray electrically conductive woven tape
produk fitur
- High bonding performance with very high peel adhesion level
- Excellent anti-repulsion performance
- Good electrical conductivity in XYZ-direction even at high temperatures and humidity
Product description

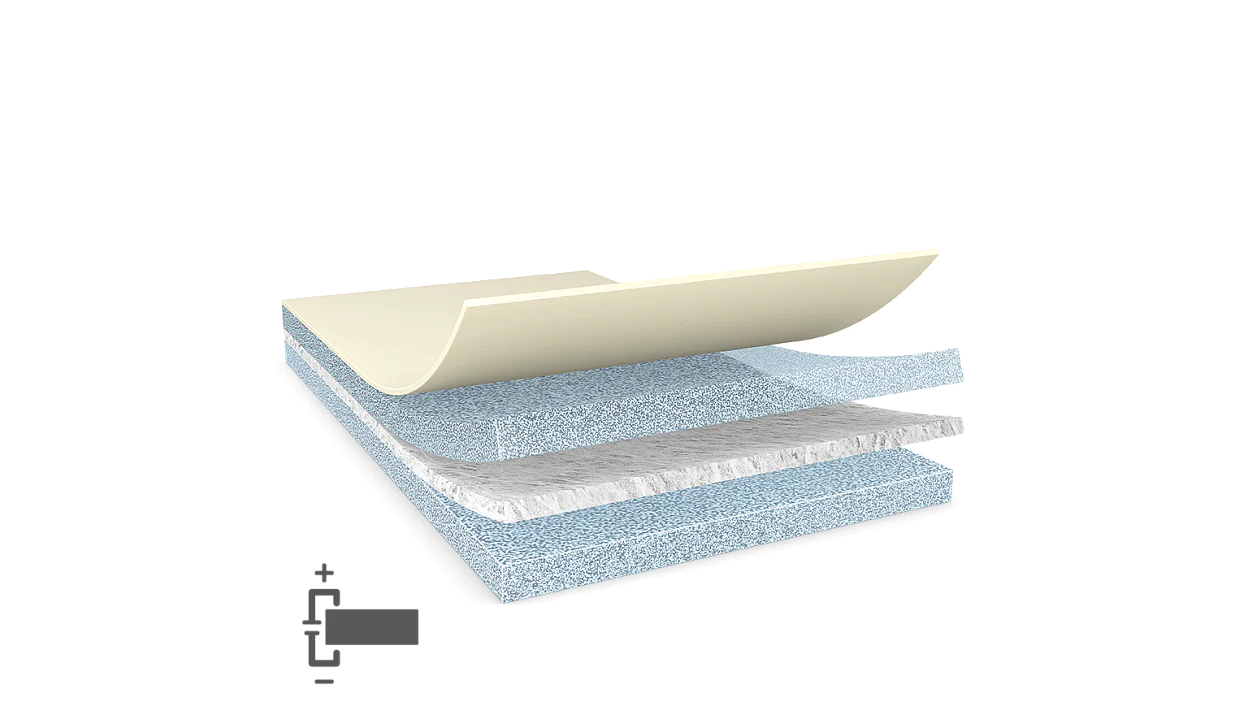

tesa® 60381 is a gray double sided electrically conductive self-adhesive tape. It consists of an electrically conductive woven backing and an electrically conductive acrylic adhesive.
Detail Produk dan Spesifikasi
produk fitur
- High bonding performance with very high peel adhesion level
- Excellent anti-repulsion performance
- Good electrical conductivity in XYZ-direction even at high temperatures and humidity
- Good tear resistance
Application Fields
- EMC applications
- FPC grounding
- Antenna grounding
- Electrostatic discharge applications
Product Construction
| Backing material | conductive woven |
| Color | gray |
| Color of liner | transparent |
| Thickness of liner | 23 µm |
| Total thickness | 50 µm |
| Type of adhesive | type: conductive acrylic |
| Type of liner | type: PET |
Properties / Performance Values
| Static shear resistance at 40°C | very good |
| Contact resistance z-direction (initial) | 0.06 Ohm / square inch |
| Durasi ketahanan suhu jangka pendek | 180 °C |
| Release of liner | easy |
| Surface resistance x-y-direction | 0.3 mOhm |
Properties / Performance Values
| Static shear resistance at 40°C | very good |
| Contact resistance z-direction (initial) | 0.06 Ohm / square inch |
| Durasi ketahanan suhu jangka pendek | 180 °C |
| Release of liner | easy |
| Surface resistance x-y-direction | 0.3 mOhm |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 10 N/cm |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 10 N/cm |
Additional Info
- 50µm tight release liner (outside of the roll)
- 23µm easy release liner
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Unduh file di bawah ini untuk detail teknis dan informasi lebih lanjut tentang produk ini.
