tesa® 60371
30µm double sided black electrically conductive non-woven tape
produk fitur
- Enhanced electrical conductivity in XYZ-direction
- Highly reliable and stable conductivity even after damp heat conditions1 Good bonding strength
- Great conformability and adjustment to uneven surfaces
Product description
tesa® 60371 is a black double sided electrically conductive self adhesive tape. It consists of an electrically conductive non-woven backing and an electrically conductive acrylic adhesive.
Black color
Detail Produk dan Spesifikasi
produk fitur
- Enhanced electrical conductivity in XYZ-direction
- Highly reliable and stable conductivity even after damp heat conditions1 Good bonding strength
- Great conformability and adjustment to uneven surfaces
- Excellent grounding performance at small bonding area
Application Fields
- EMC applications

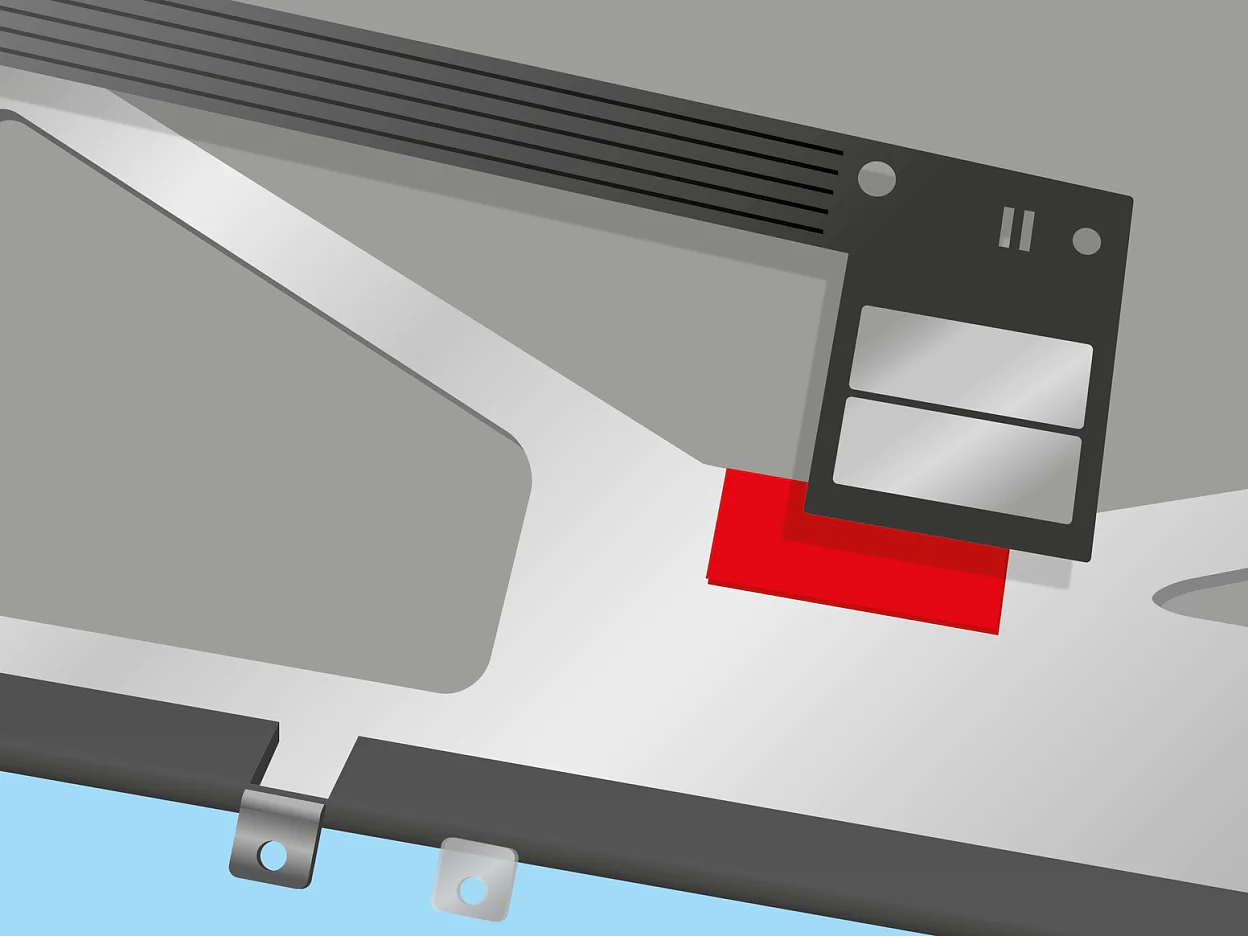

- Main board, FPC grounding
- Antenna grounding
- Electrostatic discharge applications

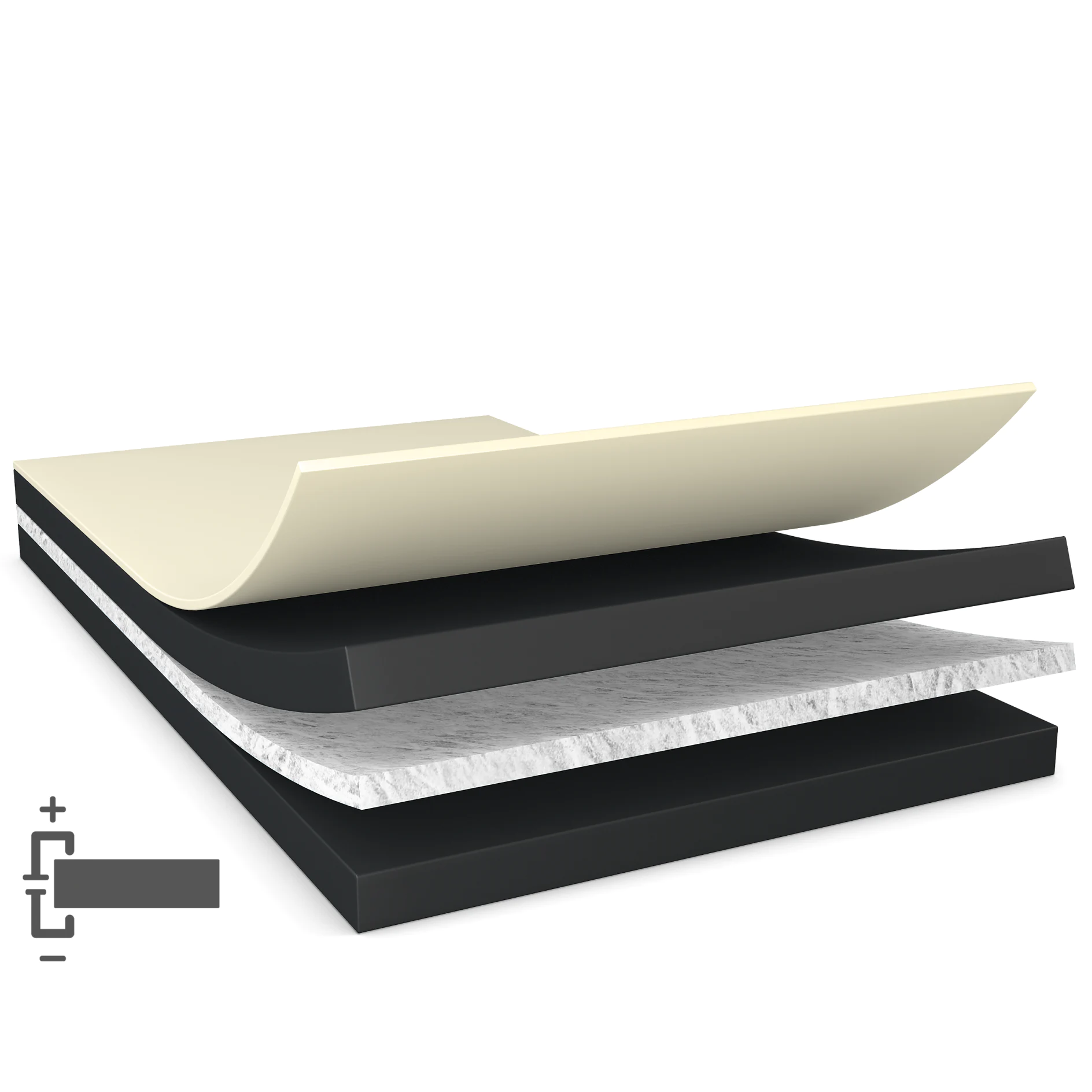

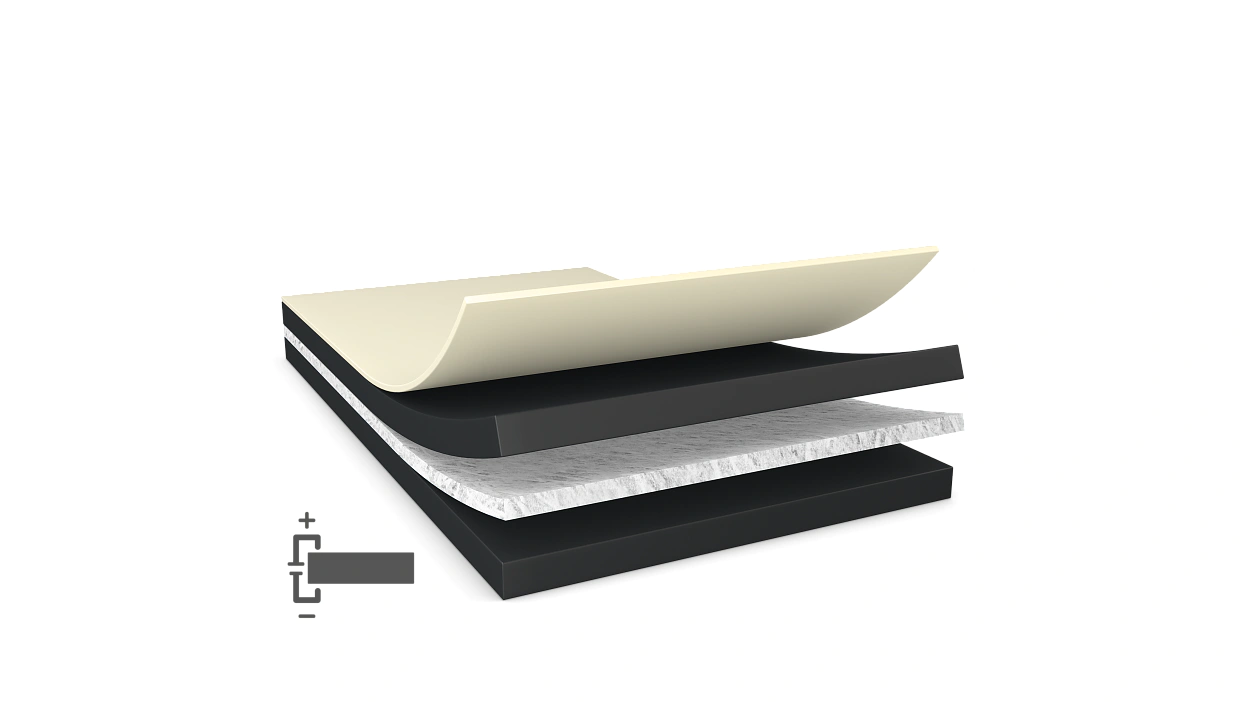

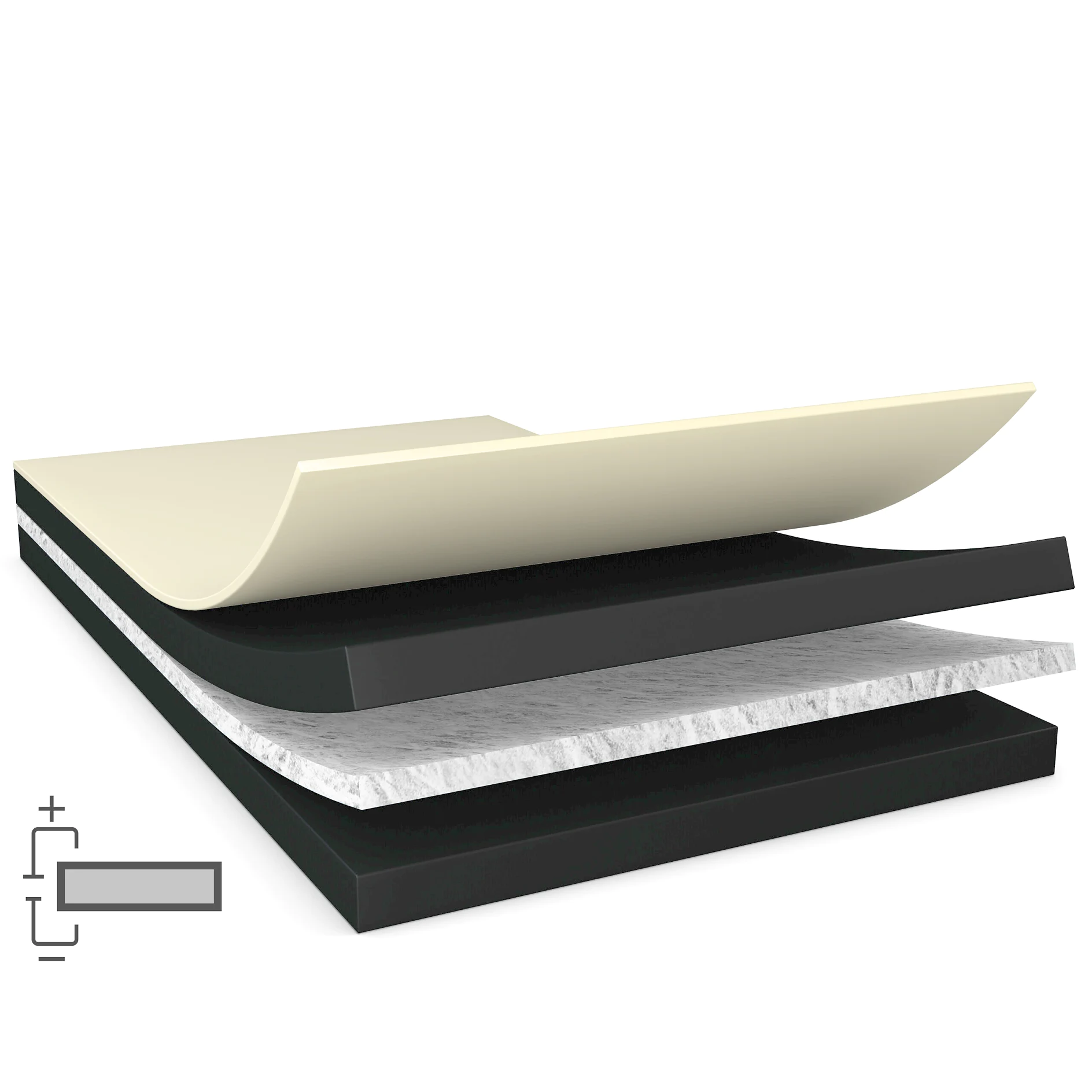

Product Construction
| Bahan penyangga | conductive non-woven |
|---|---|
| Jenis Liner | PET |
| Jenis Perekat | conductive acrylic |
| Ketebalan liner | 50 µm |
| Ketebalan total | 30 µm |
| Warna | black |
| Warna liner | transparent |
Product Construction
| Bahan penyangga | conductive non-woven |
|---|---|
| Jenis Liner | PET |
| Jenis Perekat | conductive acrylic |
| Ketebalan liner | 50 µm |
| Ketebalan total | 30 µm |
| Warna | black |
| Warna liner | transparent |
Properties / Performance Values
| Ketahanan permukaan arah x-y | 0.1 Ohm / square |
|---|---|
| Durasi ketahanan suhu jangka pendek | 200 °C |
| Ketahanan kontak arah-z (awal) | 0.01 Ohm / square inch |
| Ketahanan terhadap geser statis pada suhu 40 ℃ | very good |
| Pelepasan liner | easy |
Properties / Performance Values
| Ketahanan permukaan arah x-y | 0.1 Ohm / square |
|---|---|
| Durasi ketahanan suhu jangka pendek | 200 °C |
| Ketahanan kontak arah-z (awal) | 0.01 Ohm / square inch |
| Ketahanan terhadap geser statis pada suhu 40 ℃ | very good |
| Pelepasan liner | easy |
Adhesion to Values
| Daya rekat ke Baja (setelah 14 hari) | 5.1 N/cm |
|---|
Adhesion to Values
| Daya rekat ke Baja (setelah 14 hari) | 5.1 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
